9-258
U0125

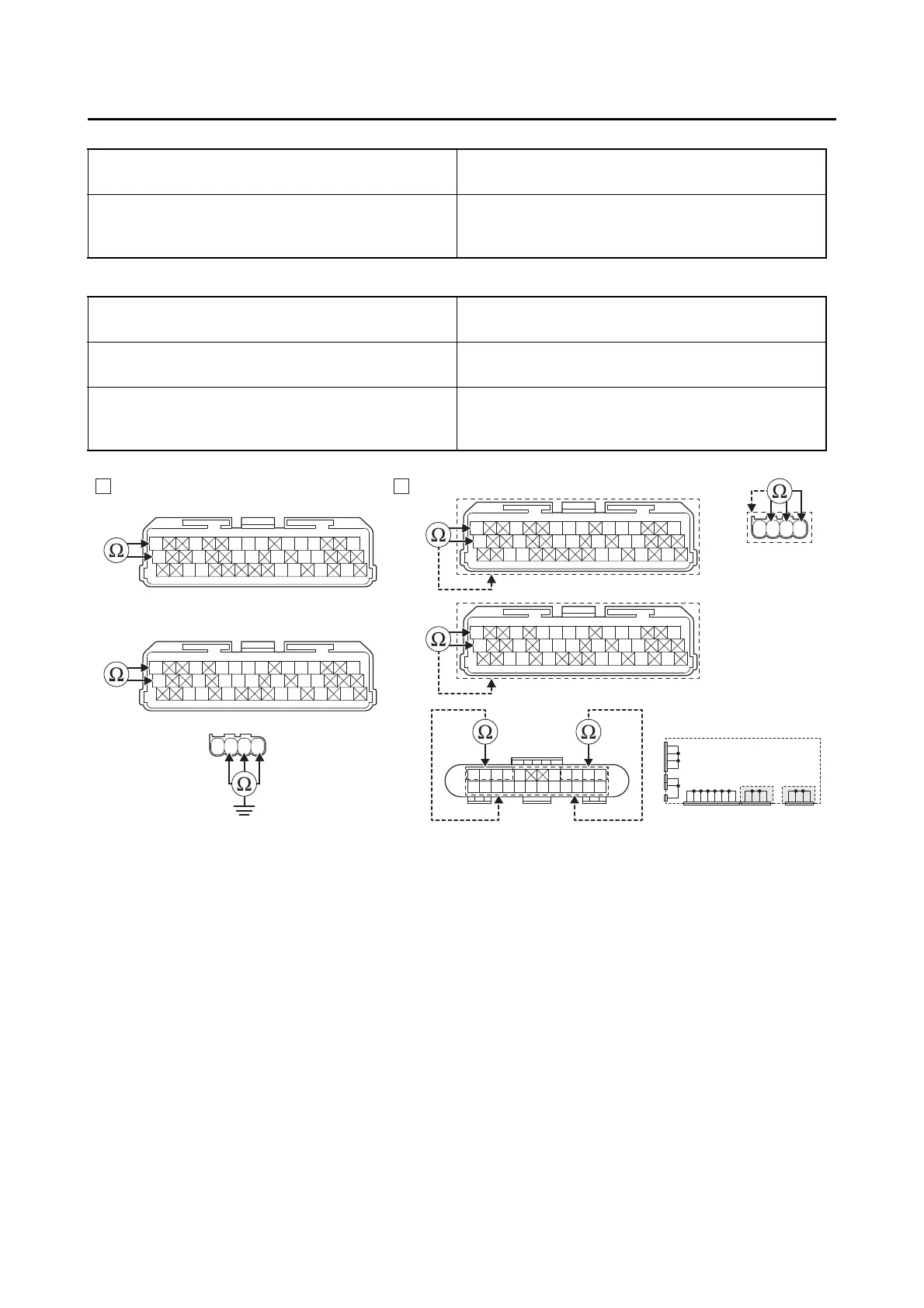

Ground short circuit check “A”
Lines short circuit check “B”
Between ECU coupler “1” and ground
blue/white–ground
blue/black–ground
Between IMU coupler “3” and ground
blue/white–ground
blue/black–ground
red/white–ground
ECU coupler “1”
blue/white–any other coupler terminal
blue/black–any other coupler terminal
Joint coupler “2”
blue/white–any other coupler terminal
blue/black–any other coupler terminal
IMU coupler “3”
blue/white–any other coupler terminal
blue/black–any other coupler terminal
red/white–any other coupler terminal
R/WL/BL/WB/W
R/WL/BL/WB/W
Gy
LLVP
P/WLg/LO/WY/LL/B
B/LB/LBr/WGy/GG/LBr/LB/YL/W
W/YW/GG/WG/WLg/BL/WL/Y
Gy
LLVP
P/WLg/LO/WY/LL/B
B/LB/LBr/WGy/GG/LBr/LB/YL/W
W/YW/GG/WG/WLg/BL/WL/Y
BA
Gy
LLVP
P/WLg/LY/LL/B
B/LB/LBr/WGy/GG/LB/YL/W
W/YW/GG/WG/WL/WL/Y
Gy
LLVP
P/WLg/LY/LL/B
B/LB/LBr/WGy/GG/LB/YL/W
W/YW/GG/WG/WL/WL/Y
L/W
WW
L/W
BB
L/B L/B Y/B Y/B
L/R L/R L/RL/RB/L
B
B/L
BBBBB
1
*
1
**
1
*
1
**
3
3
2
*. MTN890
**. MTN890D
Is resistance ∞ Ω?
YES
→ Go to step 4.
NO
a. Replace the wire harness.
b. Turn the main switch to “ON”, and then check the condition of the DTC using the malfunction
mode of the YDT.
Is it in the “Recovered” condition?
YES
→ Go to step 6, and complete the service.
NO
→ Go to step 4.
To Next Page
