• Short circuit check
Disconnect the ABS ECU related connectors before checking.
Refer to “PARTS CONNECTED TO THE ABS ECU” on page 9-4.

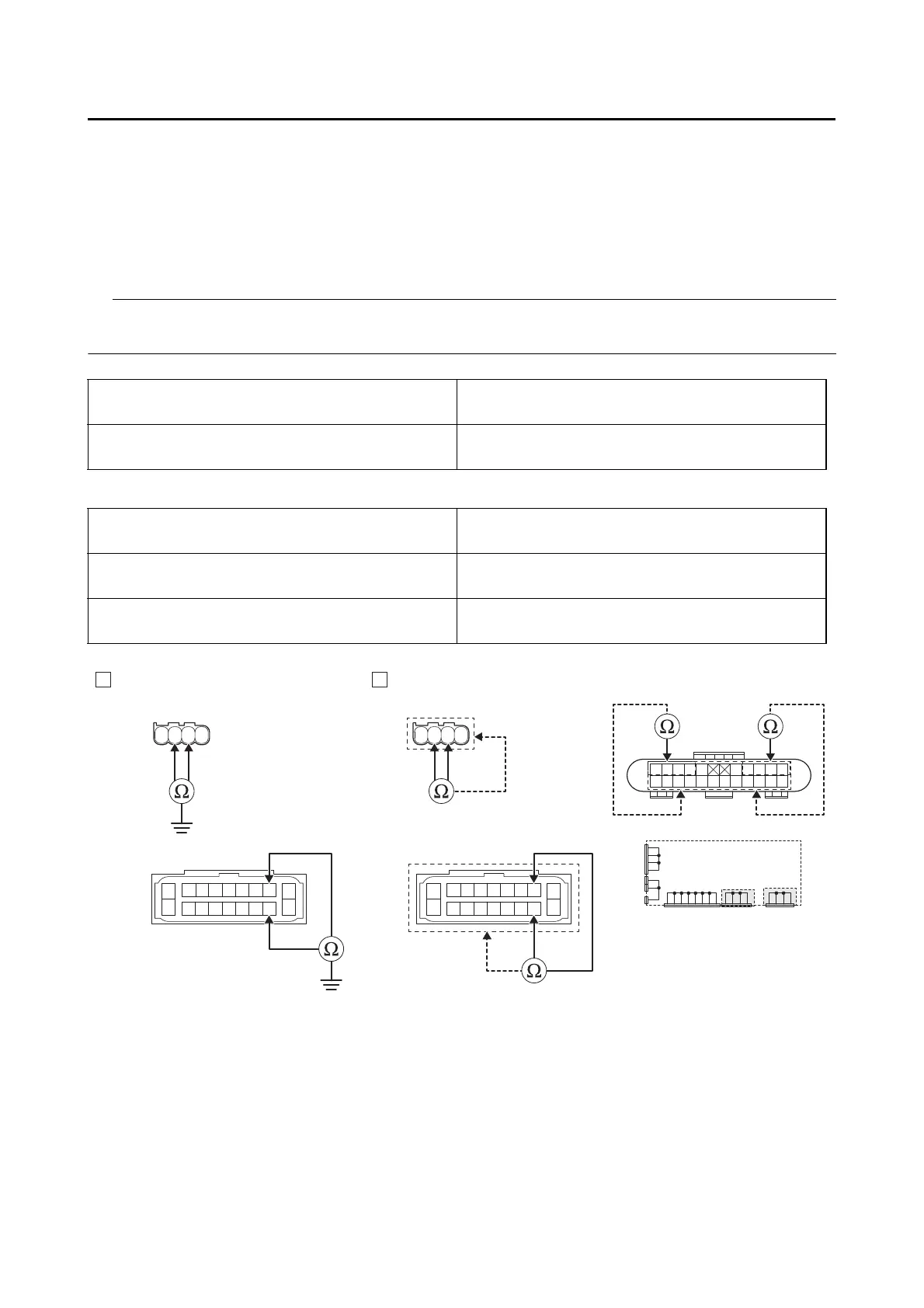

Ground short circuit check “A”
Lines short circuit check “B”
3. Defective IMU
• Replace the IMU, and check again.
Is resistance 0 Ω?
YES
→ Go to “Short circuit check”.
NO
→ Replace the wire harness.
Between IMU coupler “1” and ground
blue/white–ground
blue/black–ground
Between ABS ECU coupler “3” and ground
blue/white–ground
blue/black–ground
IMU coupler “1”
blue/white–any other coupler terminal
blue/black–any other coupler terminal
Joint coupler “2”
blue/white–any other coupler terminal
blue/black–any other coupler terminal
ABS ECU coupler “3”
blue/white–any other coupler terminal
blue/black–any other coupler terminal
Is resistance ∞ Ω?
YES
→ Go to step 3.
NO
→ Replace the wire harness.
