PSR-170
12
Note : See parts list for details of circuit board conponent parts.
DM-LCD (XZ643B0)............................................................................. 12
PN-AM 1/2 (XZ644B0) ......................................................................... 13
PN-AM 2/2 (XZ644B0) ......................................................................... 14
VR (XZ644B0)...................................................................................... 14
■ CIRCUIT BOARDS INDEX

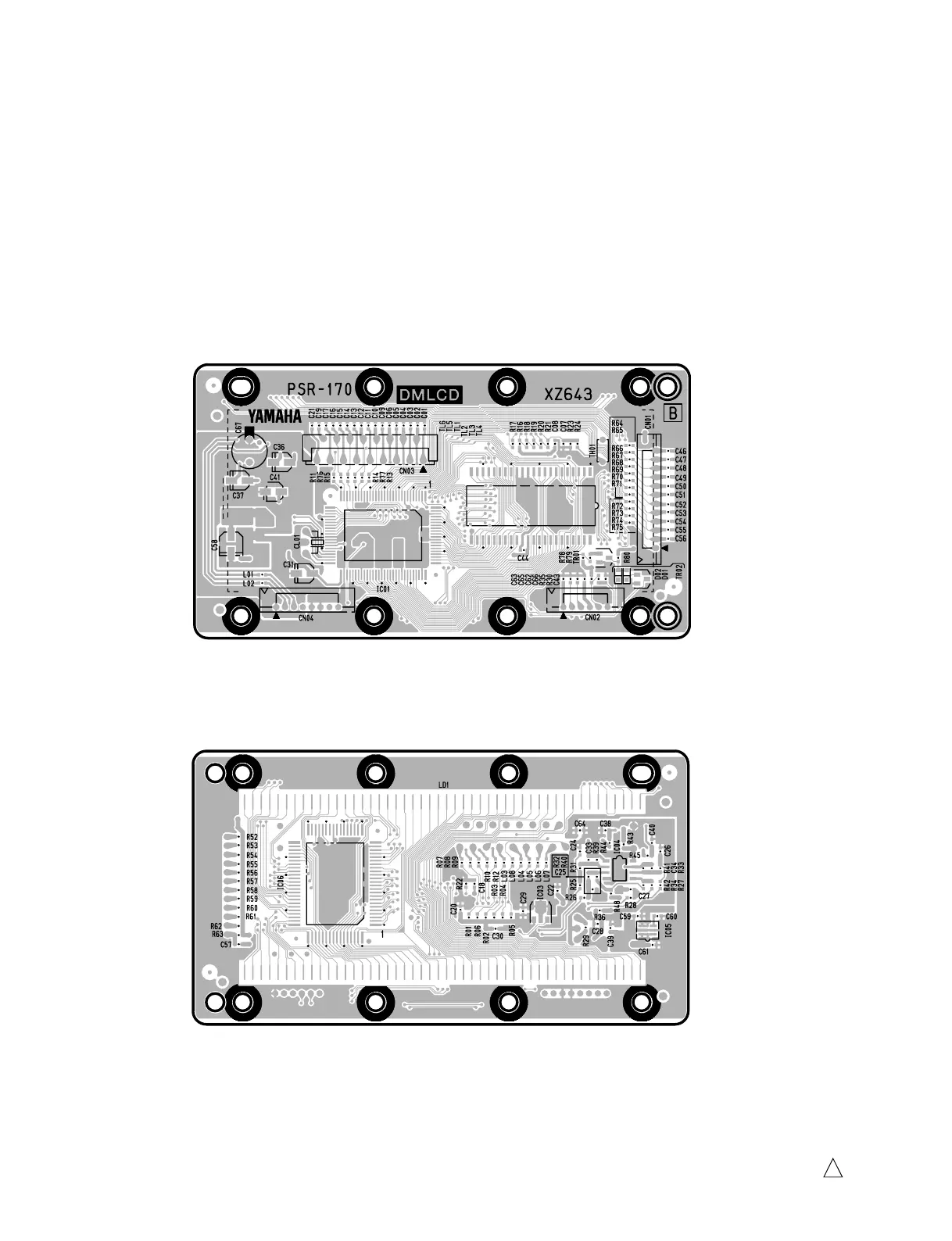

● DM-LCD Circuit Board
to MK-L
to PN-AM 1/2-CN102 to PN-AM 2/2-CN201
to PN-AM 2/2-CN203
Pattern side
2NA-V692510 2
Component side

Yamaha PSR-170 Specifications

General

Type	Portable Keyboard
Keyboard	61 keys
Effects	Reverb, Chorus
Polyphony	32 notes
ROM	100 voices
Display	LCD
Presets	100 styles
Connections	Headphones
Power Supply	AC adapter or batteries
