PSR-170
14

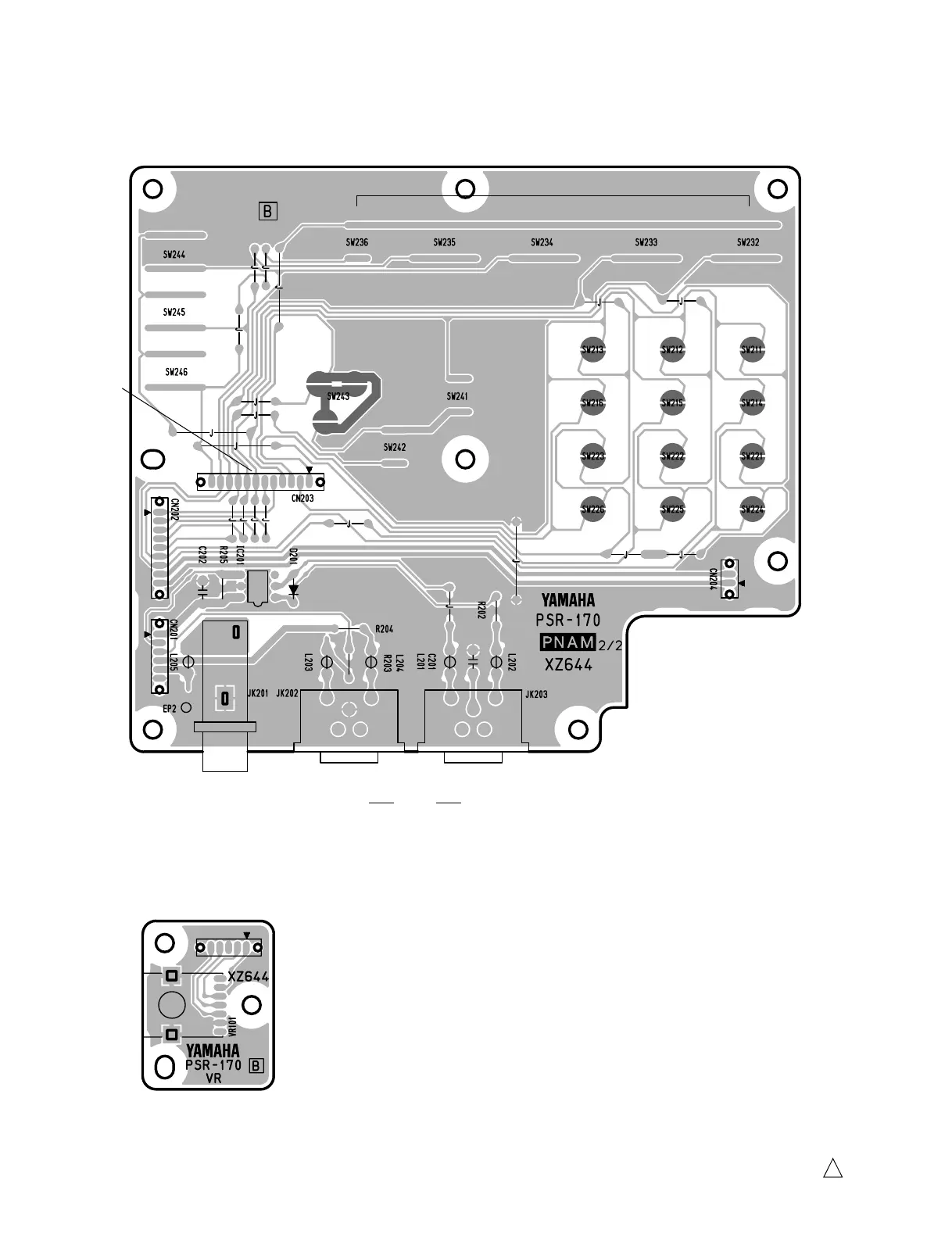

Component side
● VR Circuit Board
● PN-AM 2/2 Circuit Board
MIDI INOUTSUSTAIN
to DM-LCD-CN02
to PN-AM 1/2-CN103 to DM-LCD-CN01
to SPEAKER R
STYLE
DEMO
–/OFF 0/RESET +/ON
789
456
123
PORTABLE
GRAND
DJ
METRONOME
1234
VOICE
SONG
MULTI PAD/DJ GAME
to PN-AM 1/2-CN105
MASTER VOLUME
CN106
Component side
PN-AM 2/2, VR : 2NA-V708340
4

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Yamaha PSR-170 and is the answer not in the manual?

Yamaha PSR-170 Specifications

General IconGeneral
TypePortable Keyboard
Keyboard61 keys
EffectsReverb, Chorus
Polyphony32 notes
ROM100 voices
DisplayLCD
Presets100 styles
ConnectionsHeadphones
Power SupplyAC adapter or batteries
