PSR-170
2

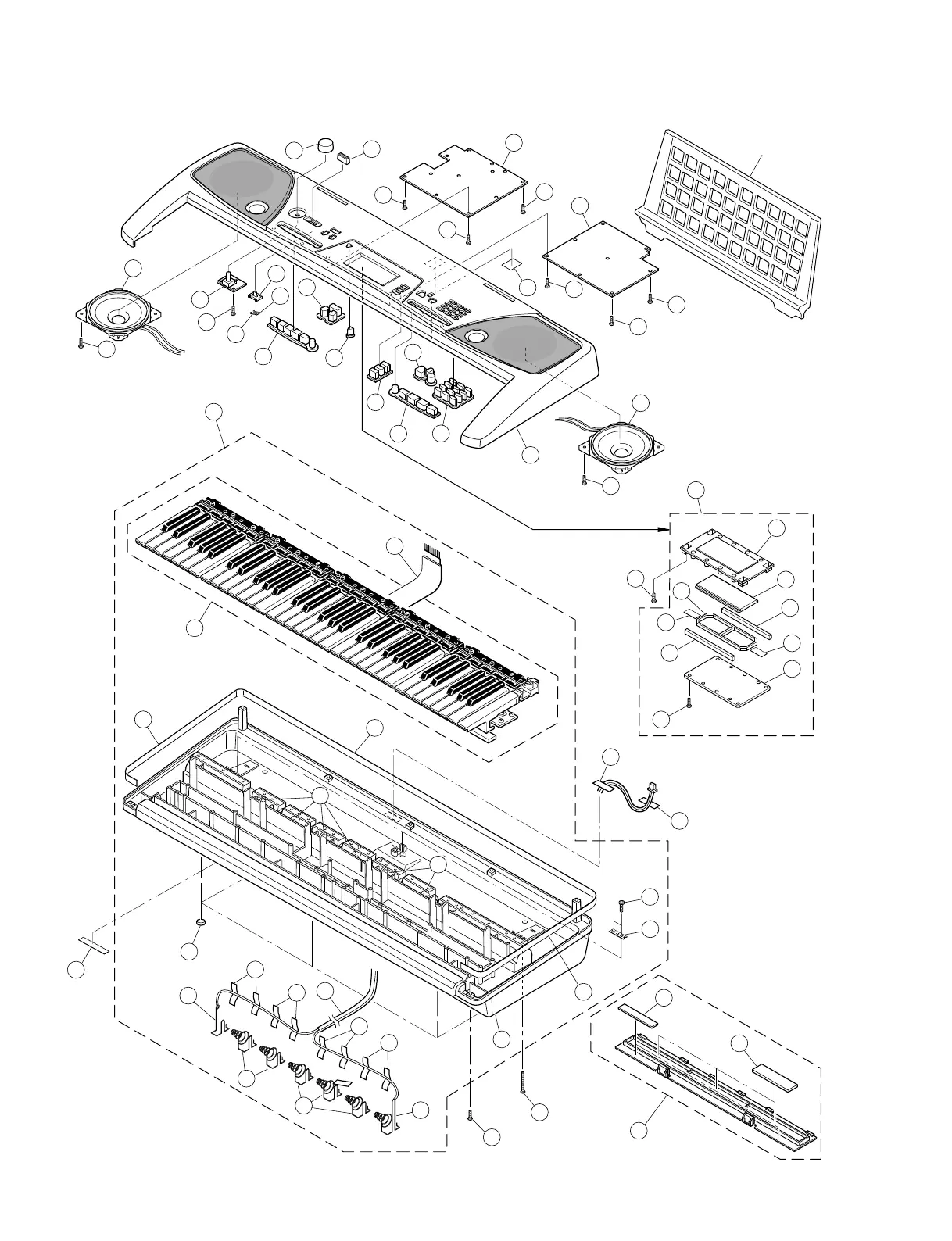

■ OVERALL ASSEMBLY
140
Battery Cover Assembly
260
120
120a
120b
C140
C140
C140
C140
C130
C60
C70
C50
C80
C70
C30
C40
C20
C110
C100
C100
10
40
50
80
30
60
200
70
90
240
180
160
170
20
270
130
190
300
150
150
250
Lower Case Assembly
110
C10
Keyboard Assembly
(See page 4.)
C120
100
L20
L30
L60
L40
L110
240
L120
L40
L50
L120
LCD Unit
210
240
240
240
210
240
240
240
20
270
Music Rest
C90
C90
1/2
2/2
