1-16. USB STORAGE test
Contents Checks if a USB memory (USB storage) connected
to the USB port is recognized.

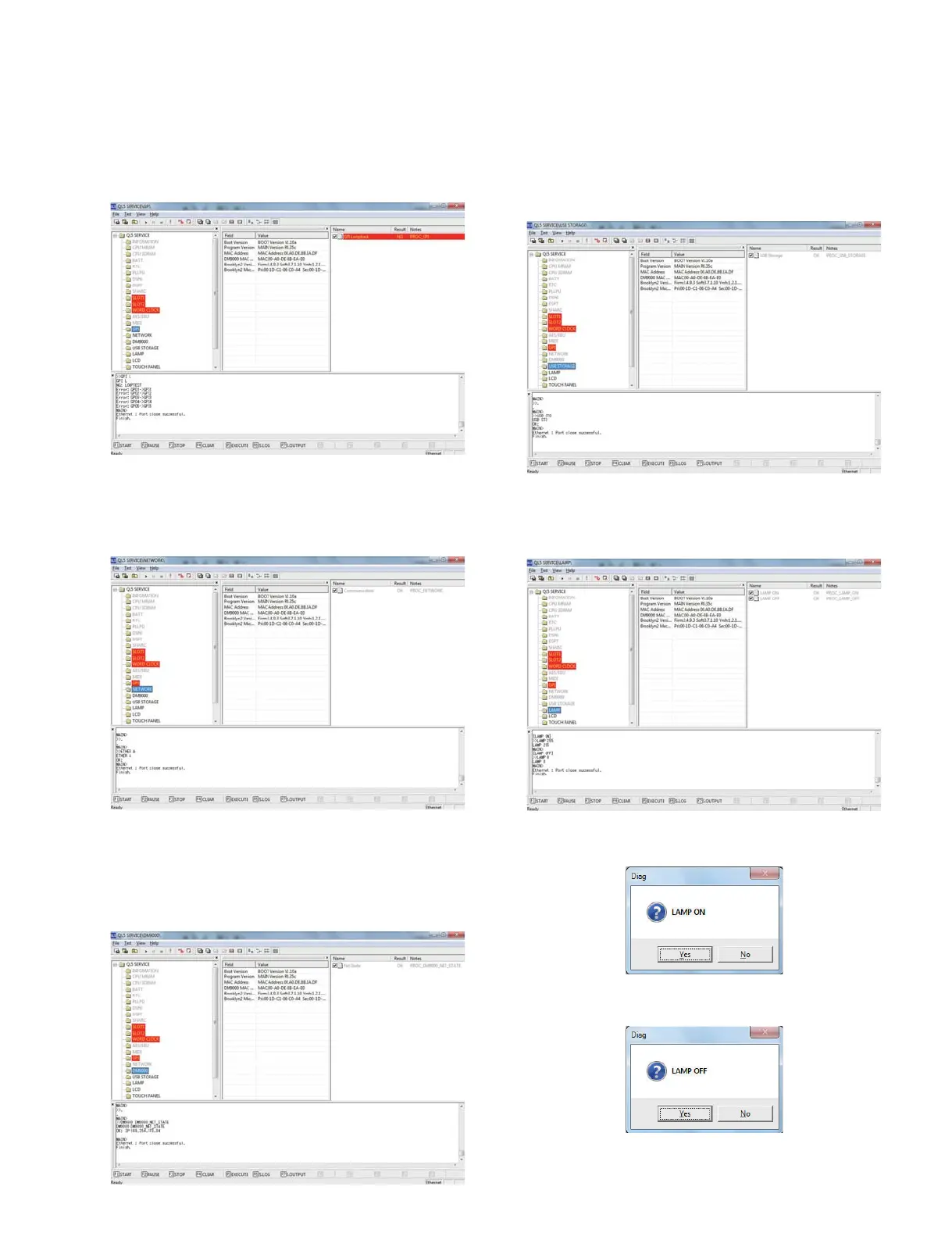

Example of executing screen
1-17. LAMP test
Contents Checks the LAMP visually for lighting.
Example of executing screen
When the dialog box appears as shown below, confi rm that the
LAMP is lighted and then select YES.
When the dialog box appears as shown below, confi rm that the
LAMP is turned off and then select YES.
1-13. GPI Test
Contents Checks with OUT and IN connected with a jig.
Example of executing screen
1-14. NETWORK Test
Contents Judges as OK if communication with the PC is
possible.
Example of executing screen
1-15. DM9000 test
Contents Check that the DM9000 on the DSP32/16 circuit
board and the internal switch on the Dante circuit
board are linked.
Example of executing screen
