Yamaha QL5 Service Manual

QL5/QL1
31
QL5/QL1
■

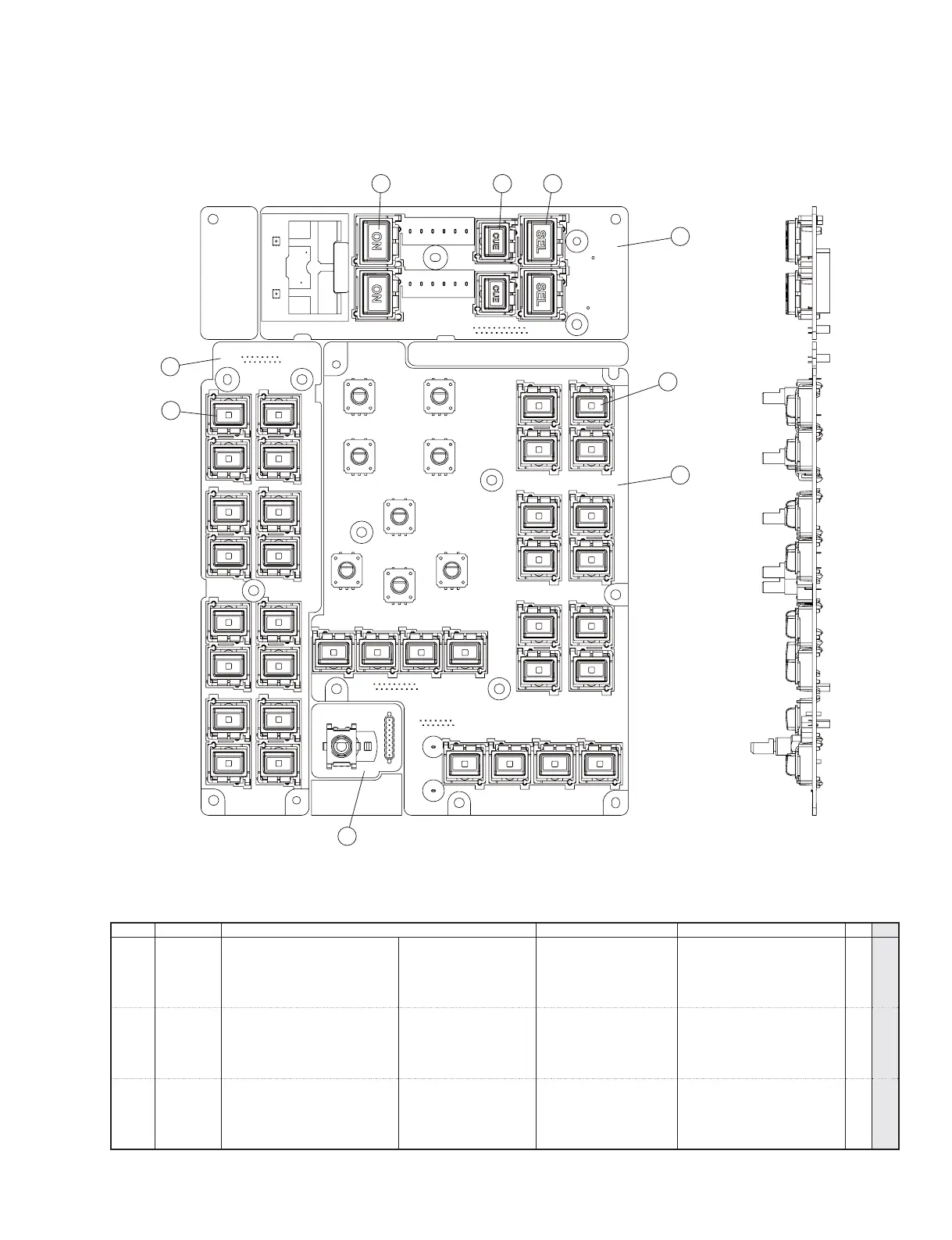

PNCOM ADDED BUTTON
（PNCOM ボタン付）
PNCOM ADDED BUTTON
ＰＮＣＯＭボタン付
QL5/QL1
*
ZH465700 PNCOM ADDED BUTTON
ＰＮＣＯＭボタン付
*
10 ZF604800 CIRCUIT BOARD PN2 (PNCOM)
ＰＮ２シート
10a WY710200 BUTTON L LARGE SEL
ボタン大 ＳＥＬ
SEL 2 03
10b WY710500 BUTTON S SMALL CUE
ボタン小 ＣＵＥ
CUE 2 03
10c WY710300 BUTTON L LARGE ON
ボタン大 ＯＮ
ON 2 03
*
20 ZF604900 CIRCUIT BOARD PNL (PNCOM)
ＰＮＬシート
20a WY710400 BUTTON S SMALL SQUARE
ボタン小 四角
SENDS ON FADER 1-16 16 03
*
30 ZF605000 CIRCUIT BOARD PNR (PNCOM)
ＰＮＲシート
30a WY710400 BUTTON S SMALL SQUARE
ボタン小 四角
EQUALIZER LOW,LOW-MID,HIGH-MID,HIGH, 20 03
USER DEFINED KEYS 1-12,
FADER BANK ST IN/DCA,MIX/MATRIX,
1-32,33-64 (QL5),1-16,17-32 (QL1)
*
40 ZF605100 CIRCUIT BOARD ENC (PNCOM)
ＥＮＣシート
10
30
20
40
10a
x2
10b
x2
20a
x16
30a
x20
10c
x2
REF NO.
PART NO. DESCRIPTION
部品名
REMARKS
QTY RANK
*
: New Parts RANK: Japan only
31

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
