Yamaha QL5 - Fd1, Pn16 I;F 008

H GFEDCB A
1
2
3
4
5
6
35
QL5/QL1

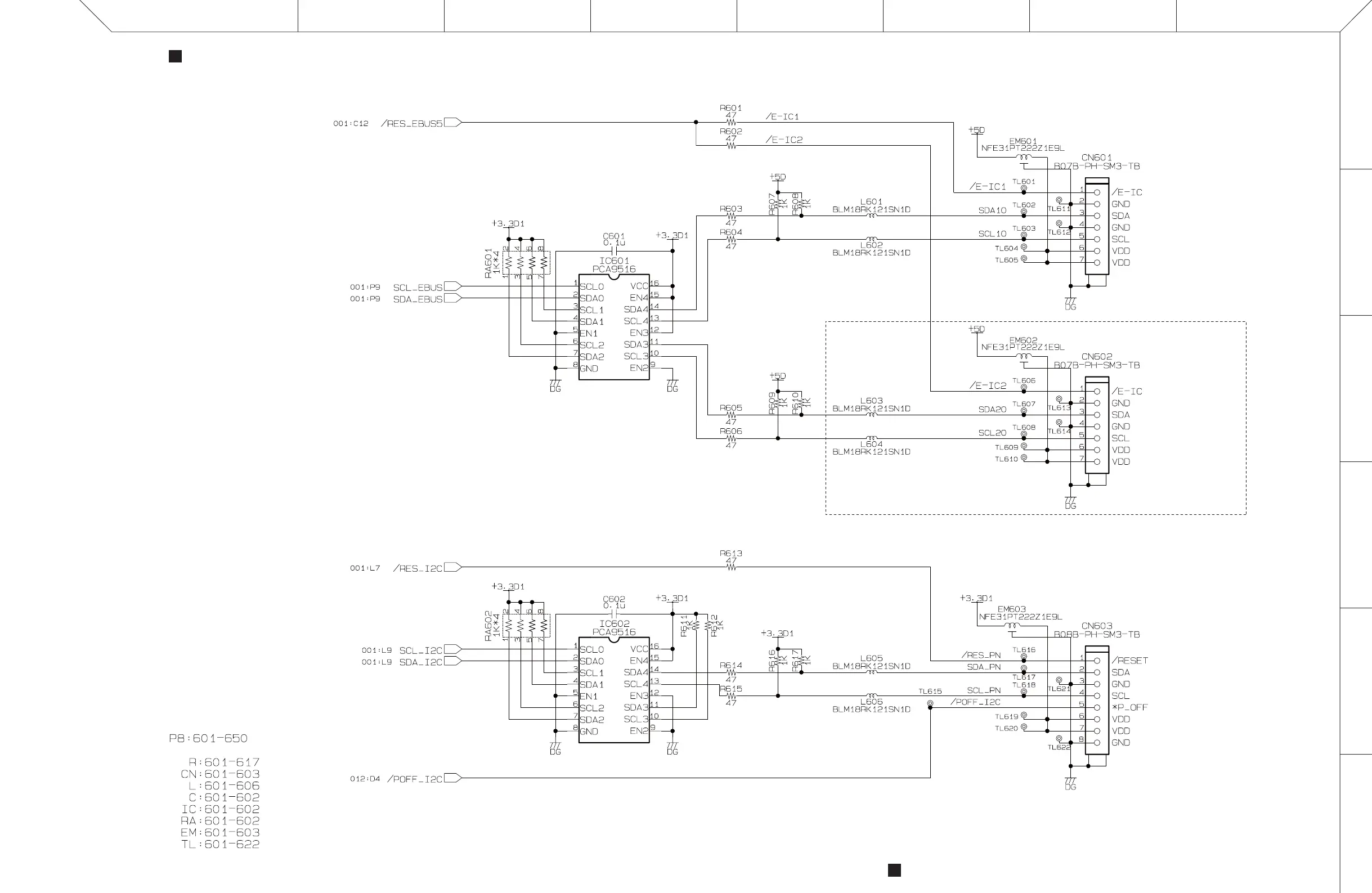

DSP32 (QL5), DSP16 (QL1) 008 CIRCUIT DIAGRAM
DSP32 (QL5), DSP16 (QL1) 008 CIRCUIT DIAGRAM
28CC1-2001128890-8
1
FD1, PN16 I/F
QL5 only
I2C HUB
I2C HUB
to FD1M-CN002
(Page 40: O-4)
to FD2-CN002
(Page 40: O-4)
to PN16M-CN505
(Page 65: P-9)
