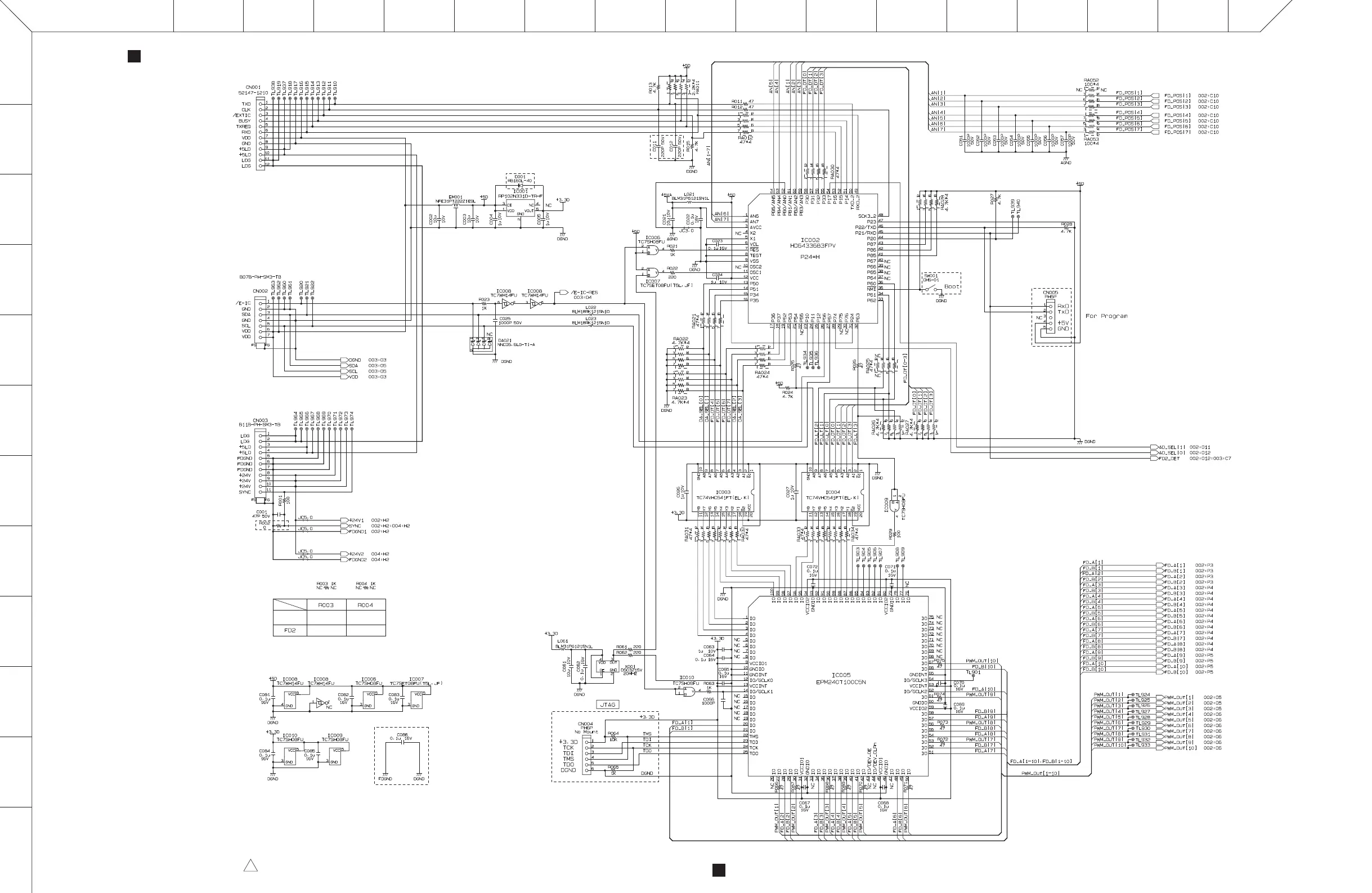

FDCOM (FD1M, FD1S (QL5/QL1), FD2 (QL5)) 001 CIRCUIT DIAGRAM
FDCOM (FD1M, FD1S (QL5/QL1), FD2 (QL5)) 001 CIRCUIT DIAGRAM
QL5: CH9–16 or CH25–32, QL1: CH9–16, FADERS CONTROLLER
XX : Not installed
（未実装）
28CC1-2001128923-1
1 1 1
FD1M
FD1S
Not installed
Not installedInstalled
Installed
XX
XX
XX
XX
XX
XX
XX
REGULATOR +3.3V
CPU (E-FDC)
BUFFER
BUFFER
CPLD
AND
AND GATE
AND
AND GATE
INVERTER
INVERTER
AND
AND
AND
AND
FD1M:
to DCM-CN181
(Page 24: B-7)
FD2:
to DCM-CN182
(Page 24: A-7)
FD1M:
to PN16M-CN101
(Page 61: O-4)
FD2:
to PN16S-CN101
(Page 61: O-4)
FD1M:
to DSP32-CN601 (QL5)
to DSP16-CN601 (QL1)
(Page 35: B-2)
FD2:
to DSP32-CN602
(Page 35: B-3)
