Yamaha QL5 Service Manual

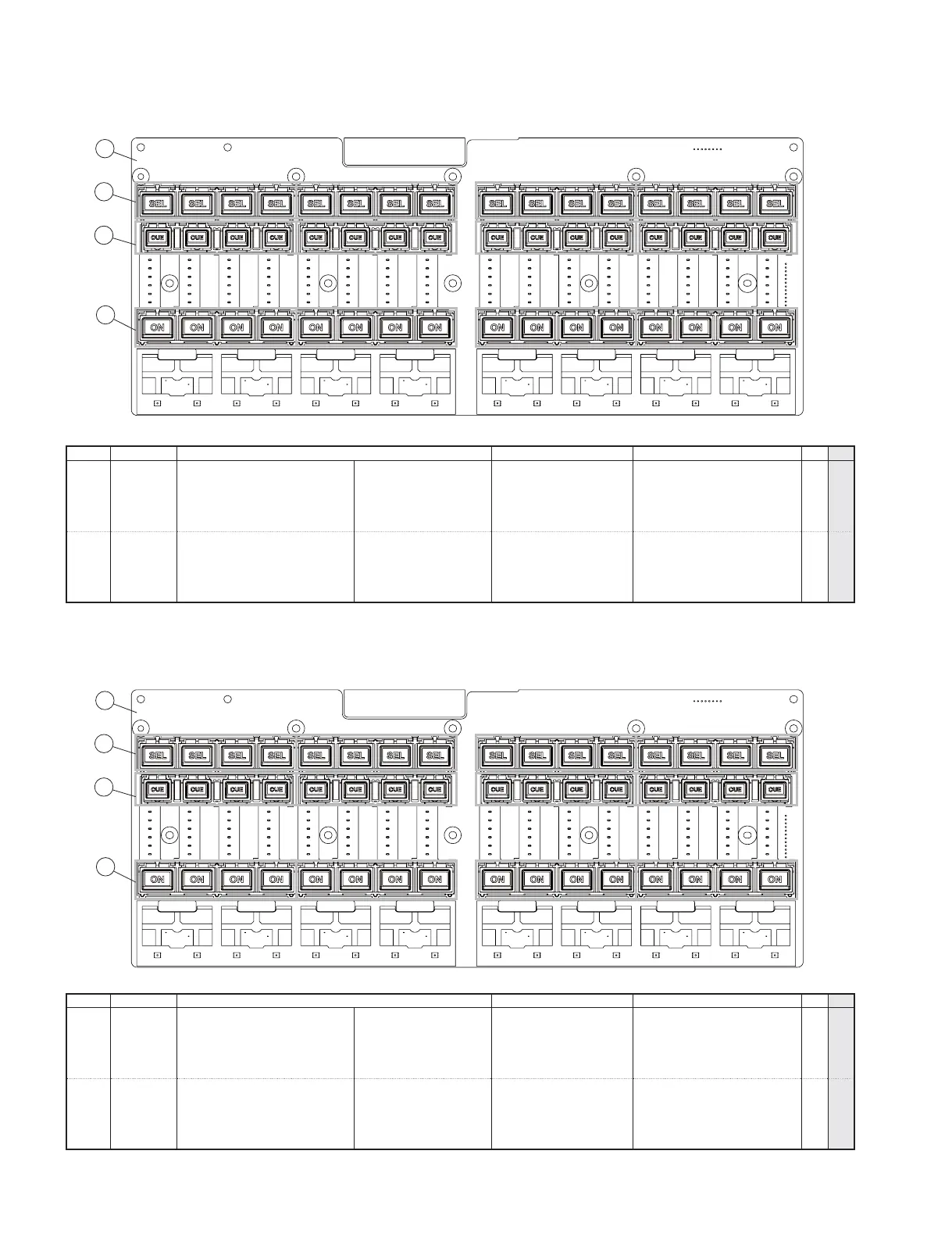

QL5/QL1
30
QL5/QL1
■
PN16M ADDED BUTTON
（PN16M ボタン付）
■
PN16S ADDED BUTTON
（PN16S ボタン付）
(QL5)
PN16S ADDED BUTTON
ＰＮ１６Ｓボタン付
QL5
*
ZH465600 PN16S ADDED BUTTON
ＰＮ１６Ｓボタン付
10 -- CIRCUIT BOARD PN16S
ＰＮ１６Ｓシート
(ZF60460)
20 WY709800 BUTTON L LARGE 4P SEL
ボタン大４Ｐ ＳＥＬ
SEL 4 04
30 WY710000 BUTTON S SMALL 4P CUE
ボタン小４Ｐ ＣＵＥ
CUE 4 04
40 WY709900 BUTTON L LARGE 4P ON
ボタン大４Ｐ ＯＮ
ON 4 05
PN16M ADDED BUTTON
ＰＮ１６Ｍボタン付
QL5/QL1
*
ZH465500 PN16M ADDED BUTTON
ＰＮ１６Ｍボタン付
10 -- CIRCUIT BOARD PN16M
ＰＮ１６Ｍシート
(ZF60450)
20 WY709800 BUTTON L LARGE 4P SEL
ボタン大４Ｐ ＳＥＬ
SEL 4 04
30 WY710000 BUTTON S SMALL 4P CUE
ボタン小４Ｐ ＣＵＥ
CUE 4 04
40 WY709900 BUTTON L LARGE 4P ON
ボタン大４Ｐ ＯＮ
ON 4 05
10
20
30
40
x4
x4
x4
10
20
30
40
x4
x4
x4
REF NO.
PART NO. DESCRIPTION
部品名
REMARKS
QTY RANK
*
: New Parts RANK: Japan only
30
REF NO.
PART NO. DESCRIPTION
部品名
REMARKS
QTY RANK
*
: New Parts RANK: Japan only

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
