Yamaha QL5 Service Manual

Q PONMLKJ I HGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
65
QL5/QL1

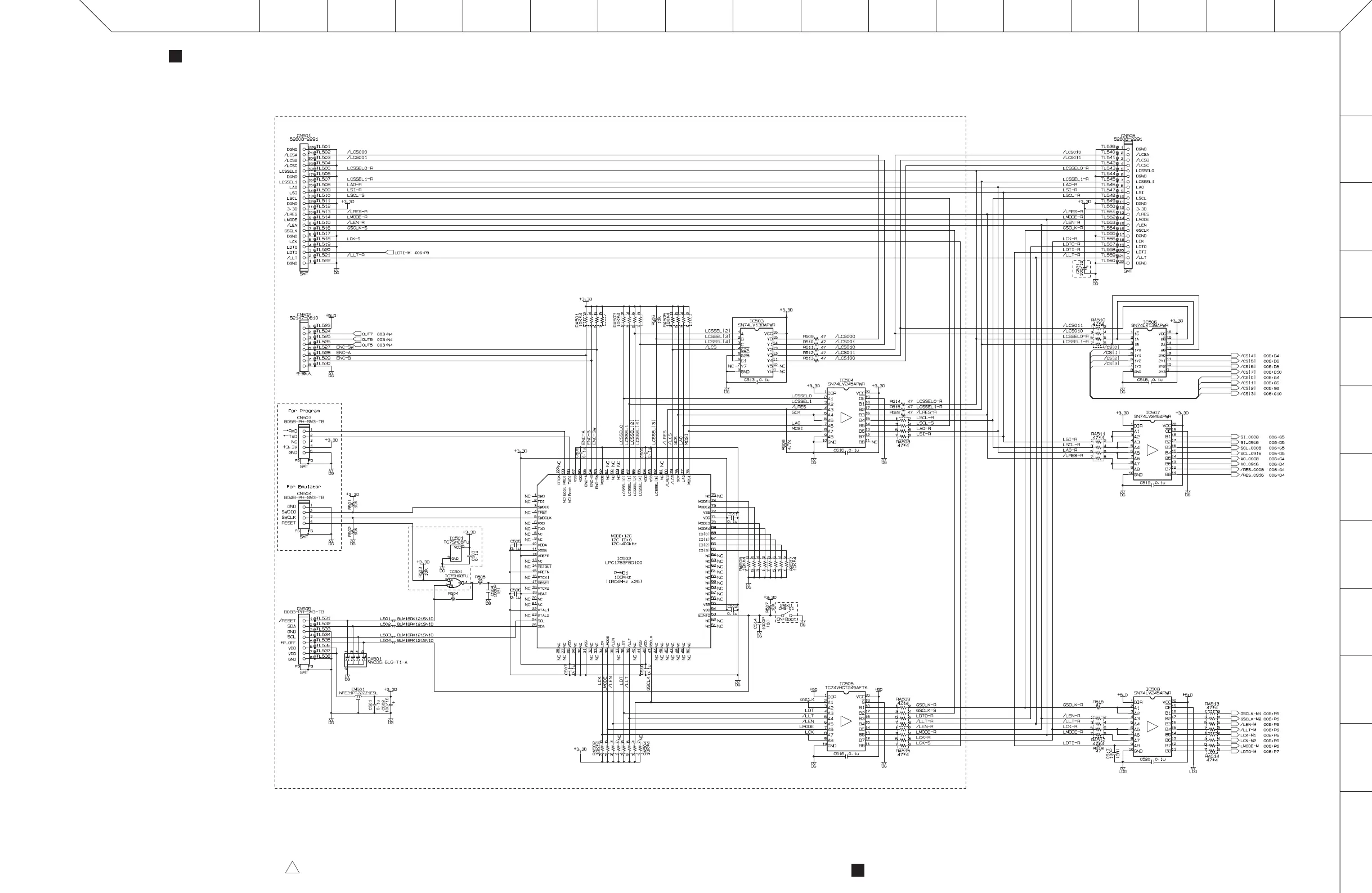

PN16M (QL5/QL1), PN16S (QL5) 005 CIRCUIT DIAGRAM
PN16M (QL5/QL1), PN16S (QL5) 005 CIRCUIT DIAGRAM
28CC1-2001128746-5
1 1
XX : Not installed
（未実装）
DSP I/F (I2C), PN16*/PN2 I/F, ENC I/F, CONTROLLER (P-MD1), BUFFER
3161RWLQVWDOOHG（未実装）
316
1RWLQVWDOOHG
（未実装）
XX
XX
XX
CPU (C-MD1)
DECODER
TRANSCEIVER
TRANSCEIVER
DECODER
TRANSCEIVER
TRANSCEIVER
to DSP32-CN603 (QL5)
to DSP16-CN603 (QL1)
(Page 35: B-5)
PN16M: to PN2-CN302
(Page 69: E-1)
PN16S: to PN16M-CN501
(Page 65: P-2)
PN16M: to PN16S-CN506
(Page 65: D-2)
to ENC-CN401
(Page 67: C-2)

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
