Yamaha QL5 Service Manual

HG F E D C B A
1
2
3
4
5
6
69
QL5/QL1

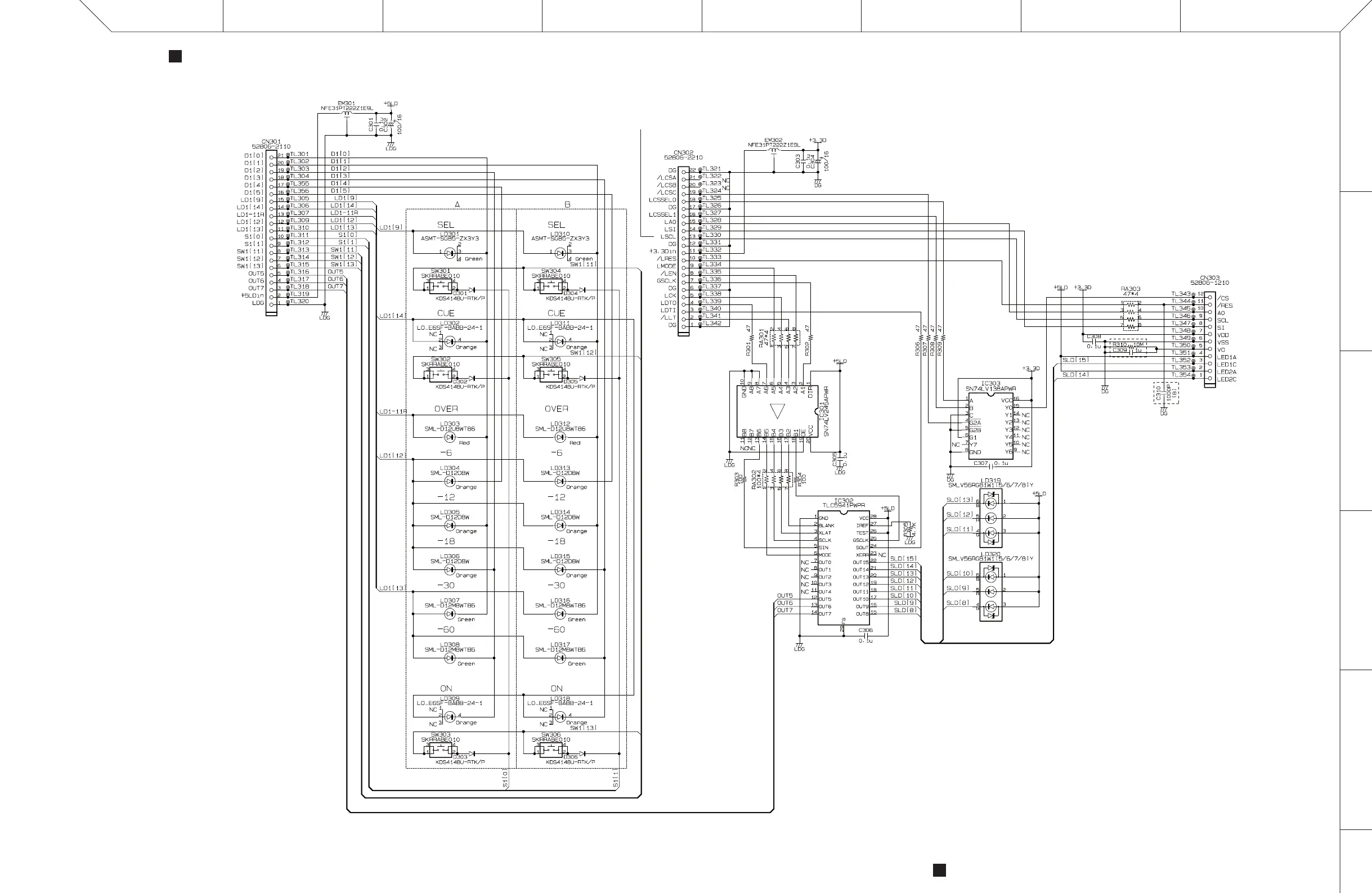

PNCOM (PN2) CIRCUIT DIAGRAM (QL5/QL1)
PNCOM (PN2) CIRCUIT DIAGRAM (QL5/QL1)
28CC1-2001128739-1
1
XX : Not installed
（未実装）
MASTER
MASTER A
MASTER B
Reference : 301–399
XX
XX
TRANSCEIVER
LED DRIVER
DECODER
to PN16M-CN301
(Page 63: O-3)
to PN16M-CN506
(Page 65: D-2)
to CRYSTAL DISPLAY
（液晶ディスプレイ）
-MASTERA,B

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
