Yamaha QL5 Service Manual

Q PONMLKJ I HGFEDCB A
2
3
4
5
6
7
8
9
10
11
12
66
QL5/QL1

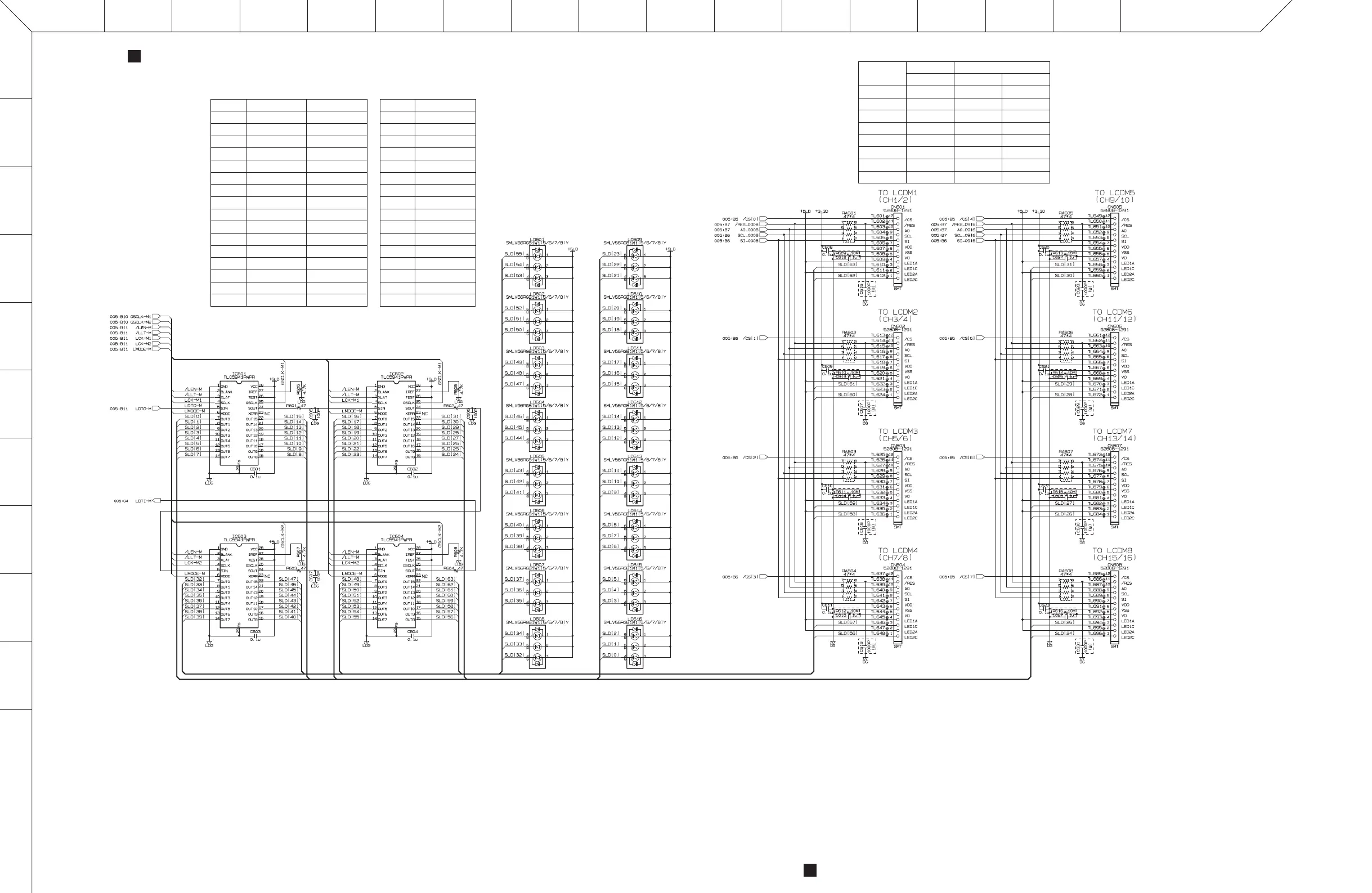

PN16M (QL5/QL1), PN16S (QL5) 006 CIRCUIT DIAGRAM
PN16M (QL5/QL1), PN16S (QL5) 006 CIRCUIT DIAGRAM
28CC1-2001128746-6
1
LED DRIVER, Ch NAME LCD I/F, MULTI COLOR LED
XX : Not installed
（未実装）
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
LED DRIVER LED DRIVER
LED DRIVER LED DRIVER
QL5 QL1
LD601 CHANNEL 17 CHANNEL 1
LD602 CHANNEL 18 CHANNEL 2
LD603 CHANNEL 19 CHANNEL 3
LD604 CHANNEL 20 CHANNEL 4
LD605 CHANNEL 21 CHANNEL 5
LD606 CHANNEL 22 CHANNEL 6
LD607 CHANNEL 23 CHANNEL 7
LD608 CHANNEL 24 CHANNEL 8
LD609 CHANNEL 25 CHANNEL 9
LD610 CHANNEL 26 CHANNEL 10
LD611 CHANNEL 27 CHANNEL 11
LD612 CHANNEL 28 CHANNEL 12
LD613 CHANNEL 29 CHANNEL 13
LD614 CHANNEL 30 CHANNEL 14
LD615 CHANNEL 31 CHANNEL 15
LD616 CHANNEL 32 CHANNEL 16
PN16M
QL5
LD601 CHANNEL 1
LD602 CHANNEL 2
LD603 CHANNEL 3
LD604 CHANNEL 4
LD605 CHANNEL 5
LD606 CHANNEL 6
LD607 CHANNEL 7
LD608 CHANNEL 8
LD609 CHANNEL 9
LD610 CHANNEL 10
LD611 CHANNEL 11
LD612 CHANNEL 12
LD613 CHANNEL 13
LD614 CHANNEL 14
LD615 CHANNEL 15
LD616 CHANNEL 16
PN16S
to CRYSTAL DISPLAY
（液晶ディスプレイ）
PN16S PN16M
QL5 QL5 QL1
CN601 CH1/2 CH17/18 CH1/2
CN602 CH3/4 CH19/20 CH3/4
CN603 CH5/6 CH21/22 CH5/6
CN604 CH7/8 CH23/24 CH7/8
CN605 CH9/10 CH25/26 CH9/10
CN606 CH11/12 CH27/28 CH11/12
CN607 CH13/14 CH29/30 CH13/14
CN608 CH15/16 CH31/32 CH15/16

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
