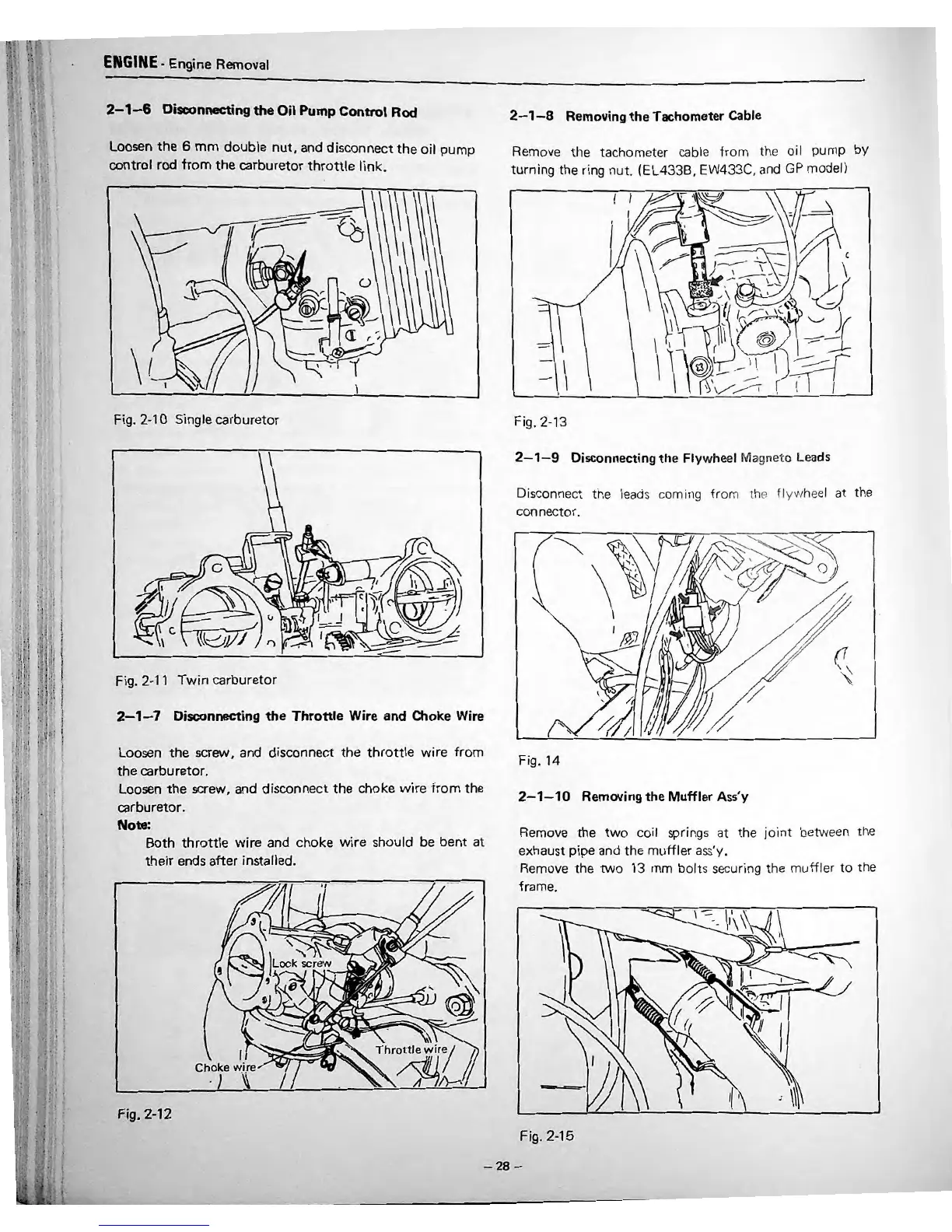

ENGINE -Engine Removal
2-1-6 Disconnecting the Oil Pump Conttol Rod
Loosen the 6 mm double nut, and disconnect the oil pump
control rod from the carburetor throttle link.
-
- -- Q;
0
I
l
\
Fig. 2- 10 Single carburetor
G
-
-
-
/") I .-,<1
-
Fig. 2-11 Twin carbure tor
2-1-7 Disconnecting the Throttle Wire and Choke Wire
Loosen
the screw, and disconnect the throttle wire from
the carburetor.
Loosen
the screw, and disconnect the choke wire from th e
carburetor.
Note:
Both throttle wire and choke wire should be bent at
their ends after installed.
I
Choke w,i,re
•
,
•
~
'
~
2-1-8 Removing the Tachometer Cable
Remove
tl1 e t ac hometer cab le from the oil pump by
turning
th e ring nut . (E L4 33 8, EW 433C, a nd GP model)
I I
(.
\
-
-
-
-
-
I
-
-
-
\
-:::--
-
,
Fig. 2- 13
2-1-9 Disconnecting the Flywh ee l M ag neto Leads
Di sco nn ec t the leads coming fr om the flywhe el at the
co
nn ec tor .
I $j
Fig. 14
2-1-10 Removing the Muffler Ass'y
Remove the tw o coil sp ri ngs at the joint between the
exhaust pipe and
th e mu ffle r ass 'y.
Remo
ve the tw o 13 mm bolts secu ring the muffle r to the
frame.
Fig.
2-15
-28-
•
