1-- -
'

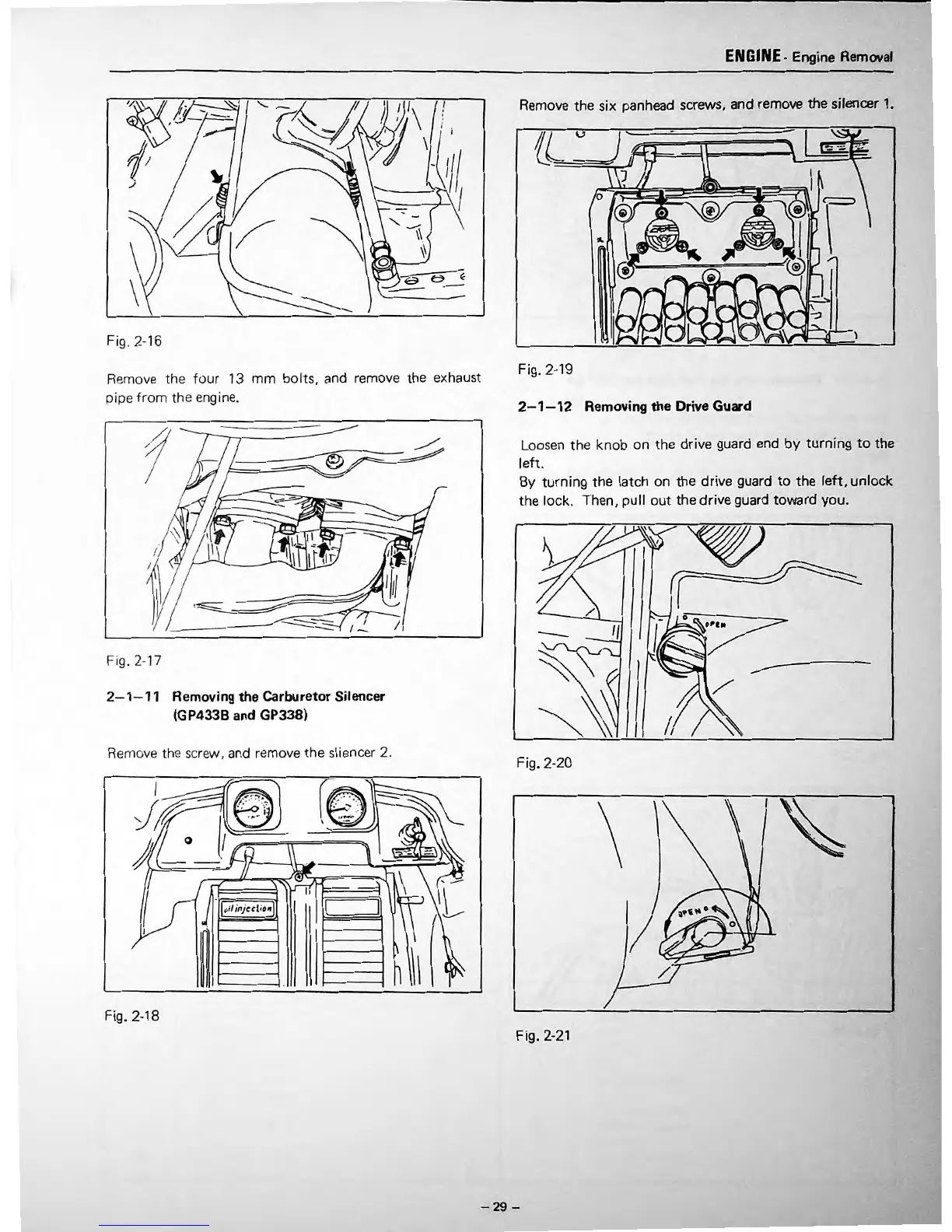

Fig. 2-16
I
•
I
•
•
' I
Remove the four 13 mm bolts, and remove the exhaust
pipe
from the eng ine.
I
I
, ......,..._
-
-
-
- - -
-
'-
Fig. 2- 17
2-1-11 Removing the Carburetor Silencer
(GP433B and GP338)
Remove the screw, and remove the sliencer
2.
-
o I
"ii injectio11
[
I
Fig. 2-18
I
-
I
ENGINE· Engine Ret11oval
Remove the six panhead screws, and remove the silenc.er 1.
-
)
)
Fig. 2-19
2-1-12 Removing the Drive Guard
Loosen the knob on the drive guard end by turning to the
left.
By turning the latch on the drive guard to the left, unlock
the lock. Then, pull out the drive guard toward you.
I/
/
Fig. 2-20
Fig. 2-21
-29-
