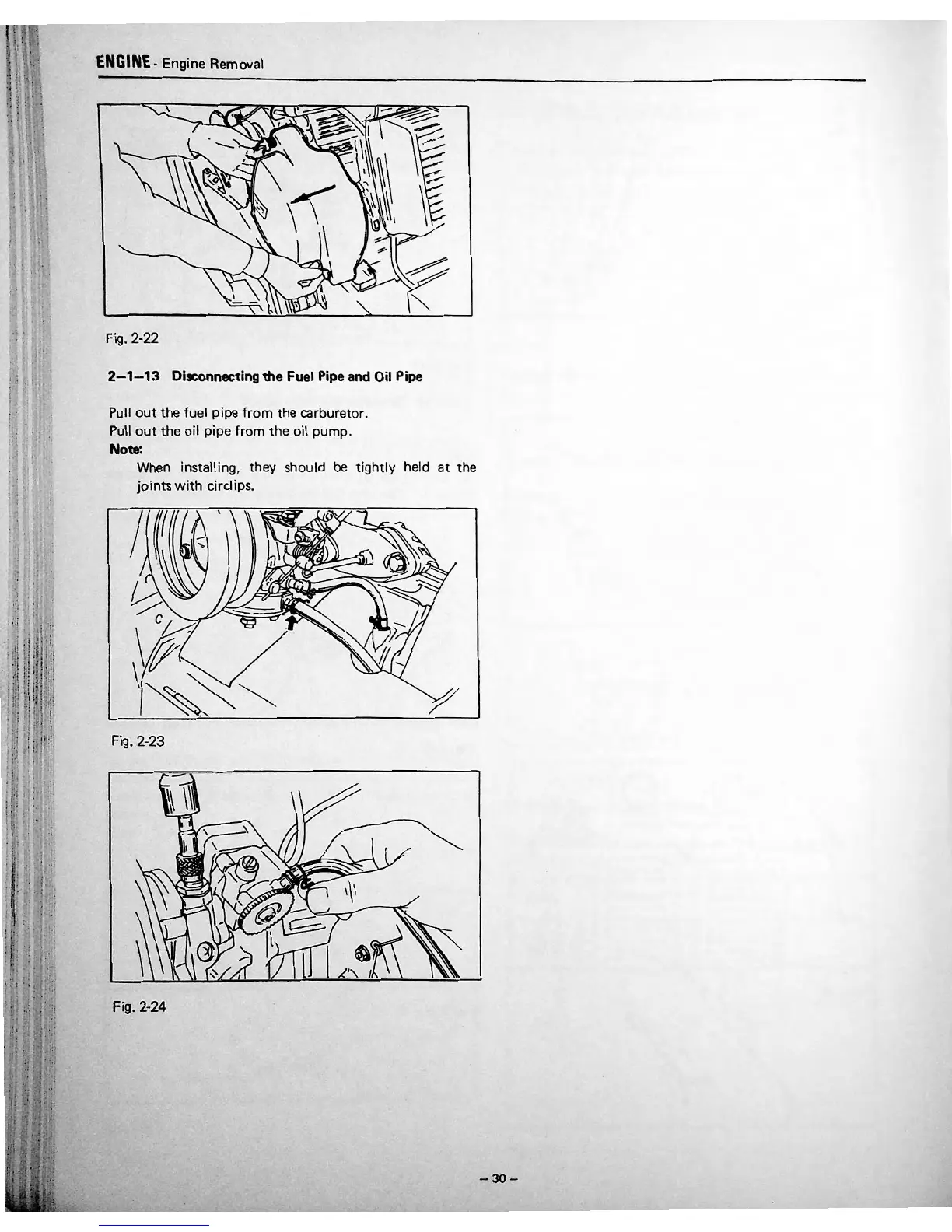

ENGINE- Engine Removal
Fig. 2-22
2-1-13 Disconnecting the Fuel Pipe and Oil Pipe
Pull out the fuel pipe from the carburetor.
Pull
out the oil pipe from the oil pump.
Note:
When installing,
they should be tightly held at the
joints with circl ips.
'
-
'
Fig. 2-23
•
'\ '
-
-
"
l
Fig. 2-24
•
•
•
•
