4-1

FUEL

FUEL COCK AND FUEL FILTER

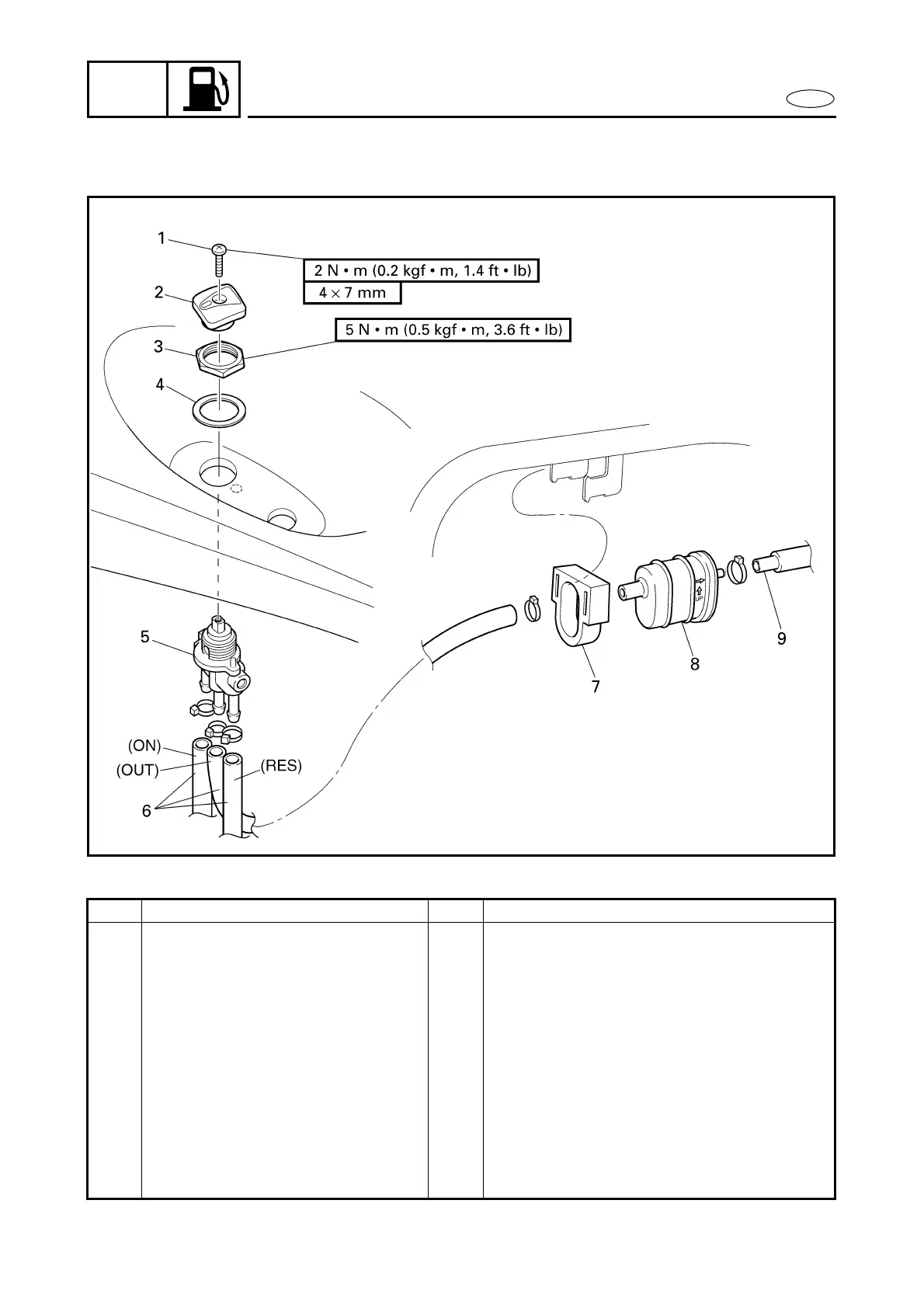

EXPLODED DIAGRAM

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

FUEL COCK AND FUEL FILTER

REMOVAL

Follow the left “Step” for removal.

1 Screw 1

2 Knob 1

3 Nut 1

4 Washer 1

5 Fuel cock assembly 1

6 Fuel hose 3

7 Holder 1

8 Fuel filter 1

9 Fuel hose 1

Reverse the removal steps for installation.
