4-20
FUEL
E
CARBURETOR
CARBURETOR

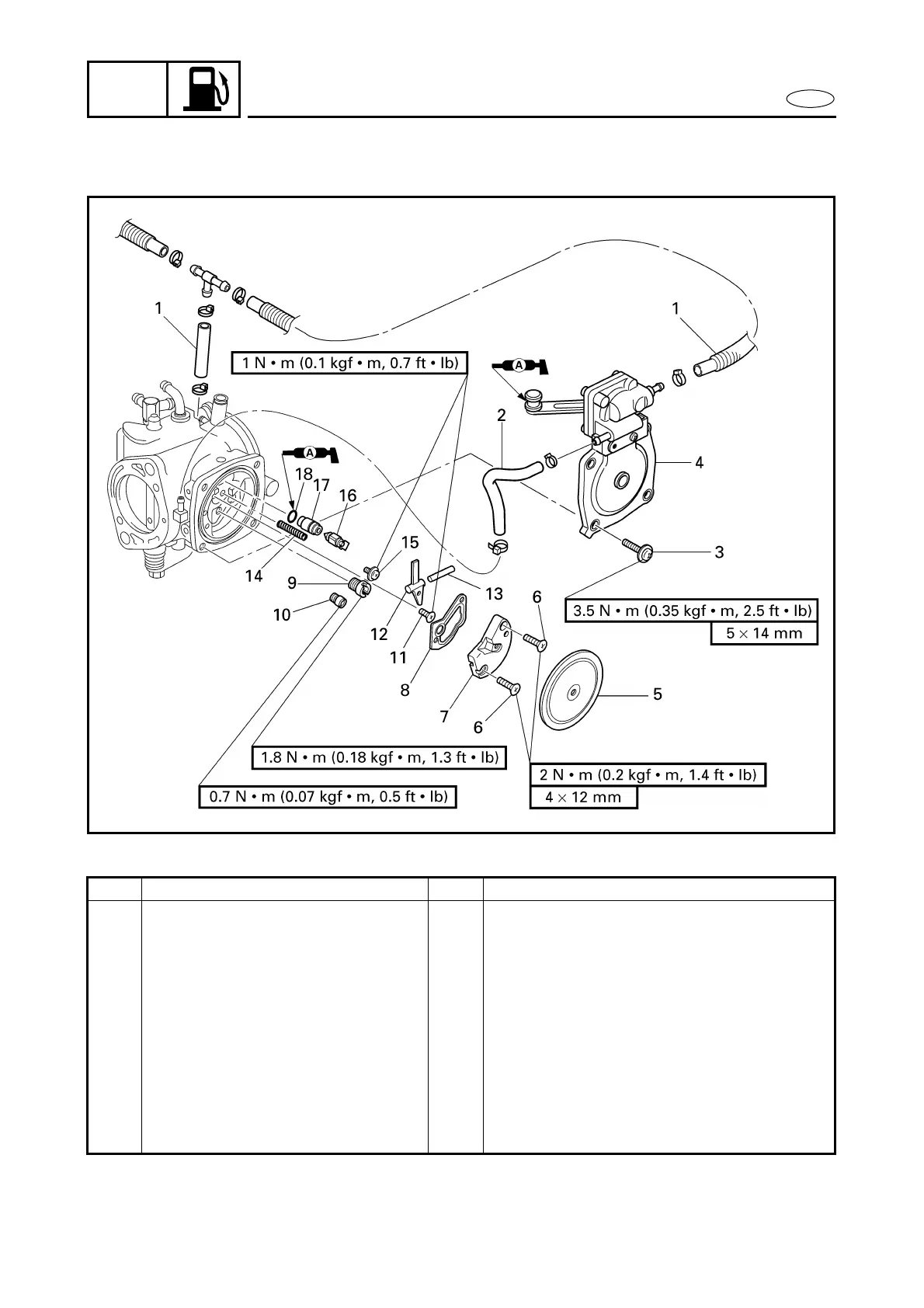

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
CARBURETOR DISASSEMBLY Follow the left “Step” for disassembly.
1 Accelerator pump delivery hose 2 For carburetor #3
2 Accelerator pump fuel hose 1
3 Screw 4
4 Accelerator pump/carburetor
cover
1/1 Carburetor #3/carburetor #1 and #2
5 Diaphragm 1
6 Screw 2
7 Regulator body 1
8 Gasket 1
9 Main jet 1
