Yamaha WaveRunner XLT1200 Service Manual

5-41
POWR
E
GENERATOR AND STARTER MOTOR
SERVICE POINTS

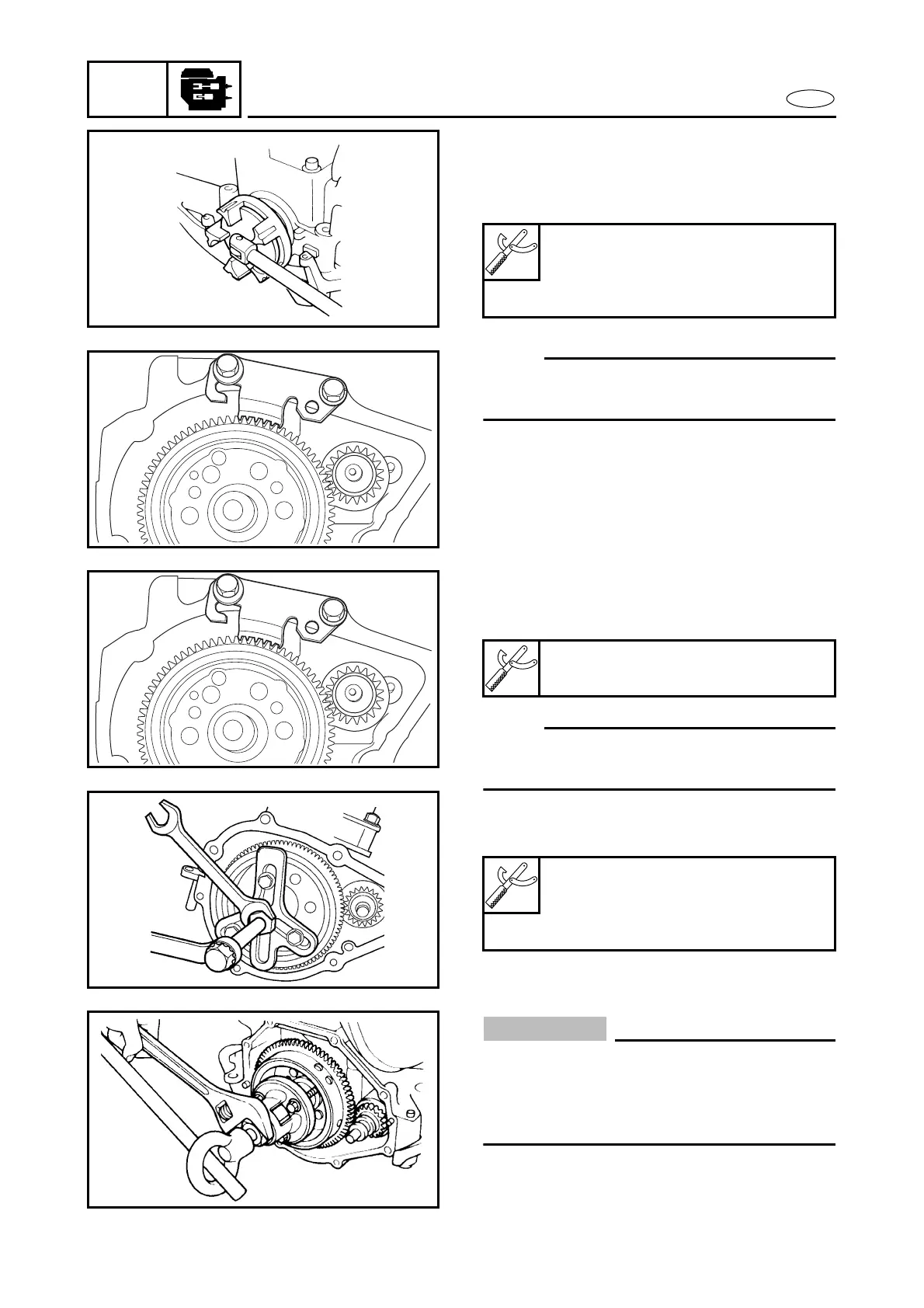

Drive coupling removal and installation
1. Remove:
● Drive coupling
NOTE:
Install the drive coupling with the same
special tools that were used for removal.
Coupler wrench:
YW-06551/90890-06551
Flywheel holder:
YW-06550/90890-06550
Flywheel magneto removal and installation
1. Remove:
● Flywheel magneto bolt
NOTE:
Install the bolt with the same special tool
that was used for removal.
2. Remove:
● Generator rotor
Å For USA and Canada
ı For worldwide
CAUTION:
To prevent damage to the engine or tools,
screw in the flywheel puller set bolts
evenly and completely so that the puller
plate is parallel to the generator rotor.
Flywheel holder:
YW-06550/90890-06550
Flywheel puller:
YB-06117/90890-06521
Set bolt:
M8 × 60 mm
Å
ı
