6-20
E
JET
PUMP
BEARING HOUSING
BEARING HOUSING

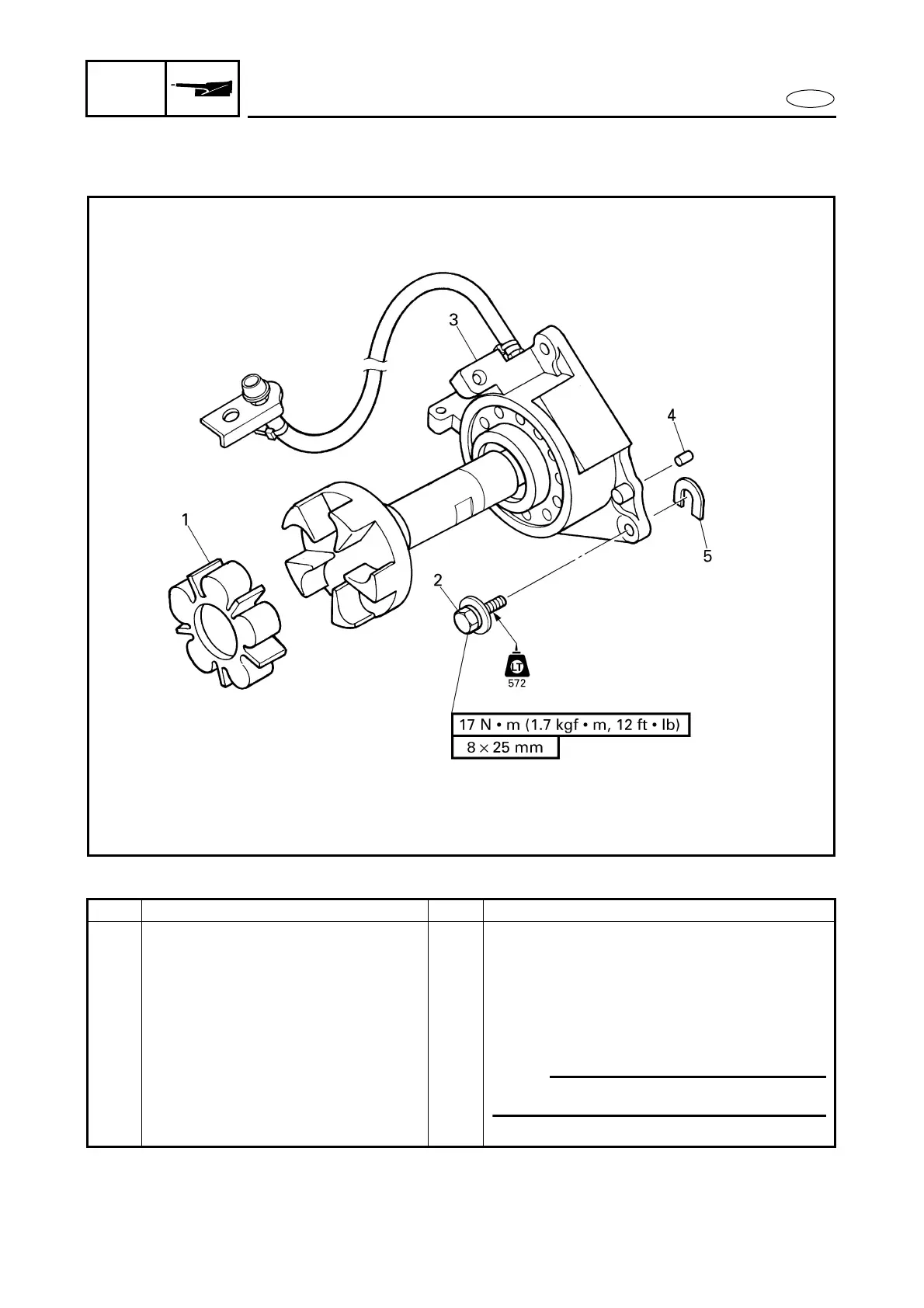

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
BEARING HOUSING REMOVAL Follow the left “Step” for removal.
Engine unit Refer to “ENGINE UNIT” in Chapter 5.
1 Rubber coupling 1
2 Bolt 3
3 Intermediate housing assembly 1
4 Pin 2
5 Shim *
NOTE:
Install the shims in their original locations.
Reverse the removal steps for installation.
*: As required
