Yamaha WaveRunner XLT1200 Service Manual

7-20
E
–+
ELEC
STARTING SYSTEM
BATTERY
Refer to “ELECTRICAL” in Chapter 3.
WIRING CONNECTIONS
1. Check:
● Wiring connections
Poor connections → Properly connect.

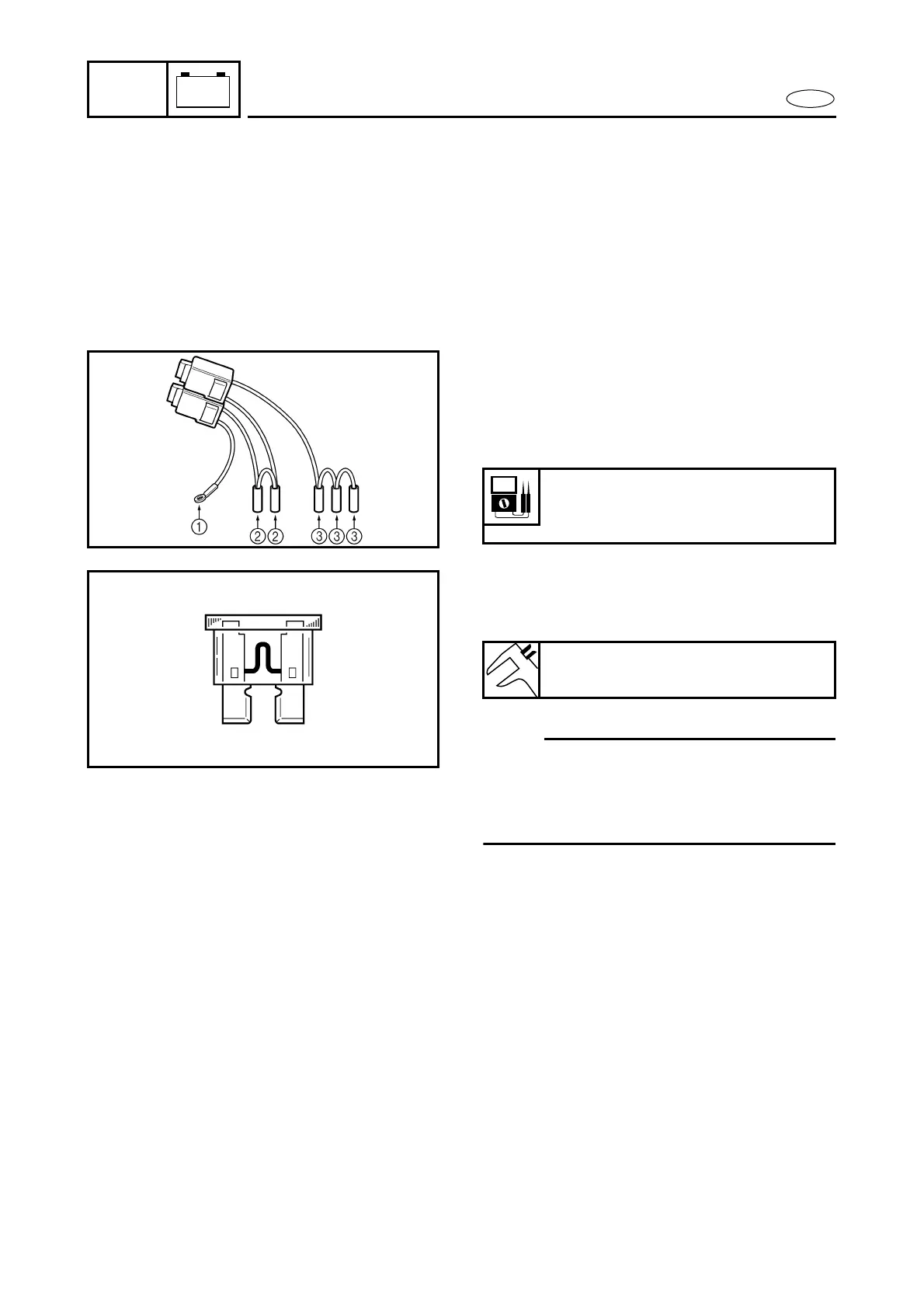

FUSE
1. Check:
● Fuse holder continuity
No continuity → Check the fuse or
replace the fuse holder.
Fuse holder continuity:
Between 1 and 2
Between 2 and 3
2. Check:
● Fuse broken
Broken → Replace.
NOTE:
20A fuse is for CDI unit and rectifier/regula-
tor.
10A fuse is for multifunction meter, YPVS
motor and start switch.
Fuse rating:
10A, 20A

Yamaha WaveRunner XLT1200 Specifications

General

Manufacturer	Yamaha
Model	WaveRunner XLT1200
Displacement	1176cc
Fuel Capacity	18.5 gallons
Seating Capacity	3 persons
Cooling System	Water-cooled
Starting System	Electric
Category	Personal Watercraft
Engine Type	2-stroke
Fuel Delivery	Mikuni BN44 carburetors
