4-19
FUEL
E
CARBURETOR UNIT

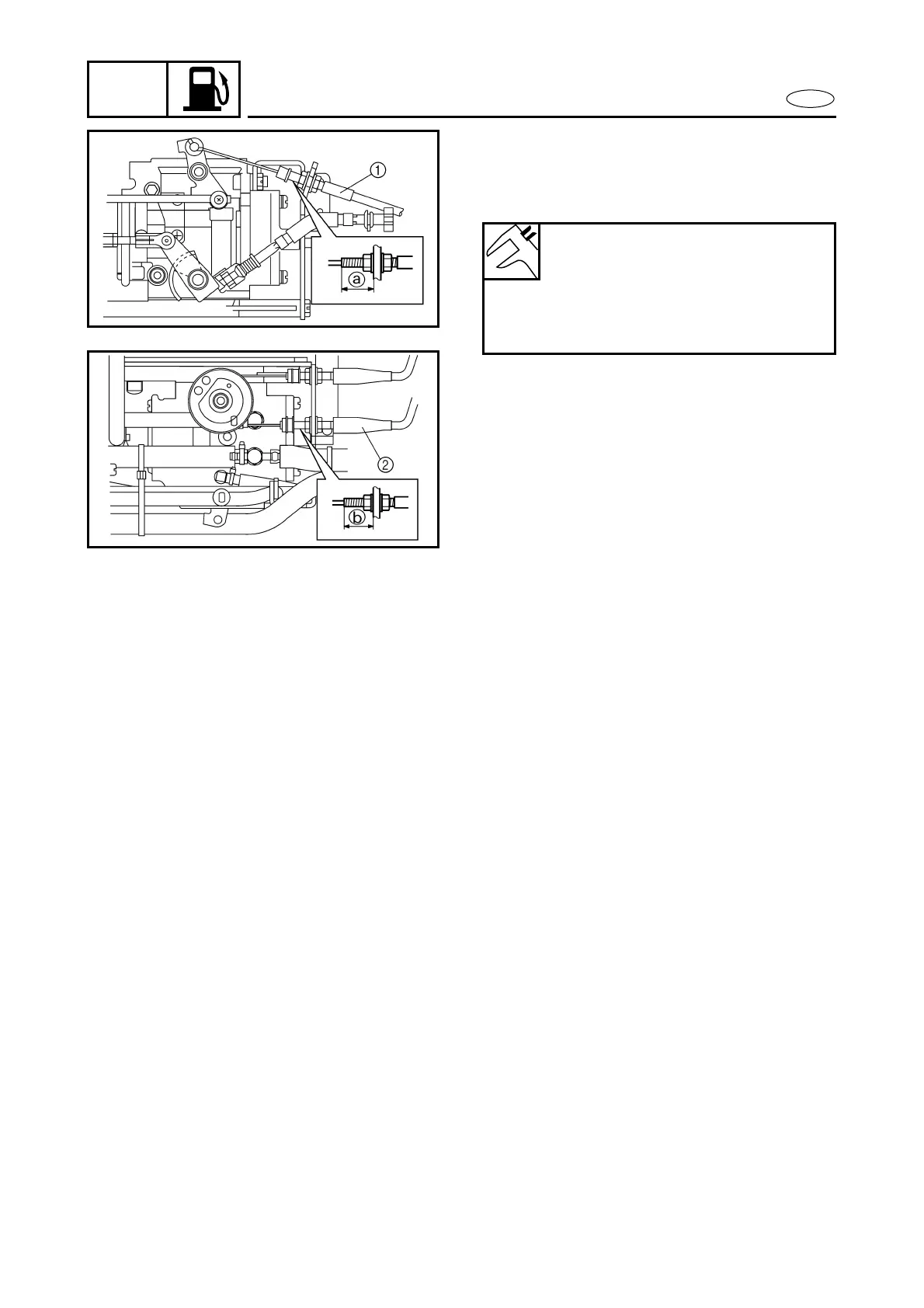

Choke cable and throttle cable installation
1. Install:
● Choke cable 1
● Throttle cable 2
Choke cable guide installation
position a:
16–18 mm (0.63–0.71 in)
Throttle cable guide installation
position b:
18–20 mm (0.71–0.79 in)
2. Adjust:
● Throttle lever free play
Refer to “CONTROL SYSTEM” in
Chapter 3.
Oil pump cable installation
1. Adjust:
● Oil pump cable
Refer to “OIL PUMP”.
Carburetor assembly
1. Adjust:
● Trolling speed
Refer to “FUEL SYSTEM” in Chapter 3.
