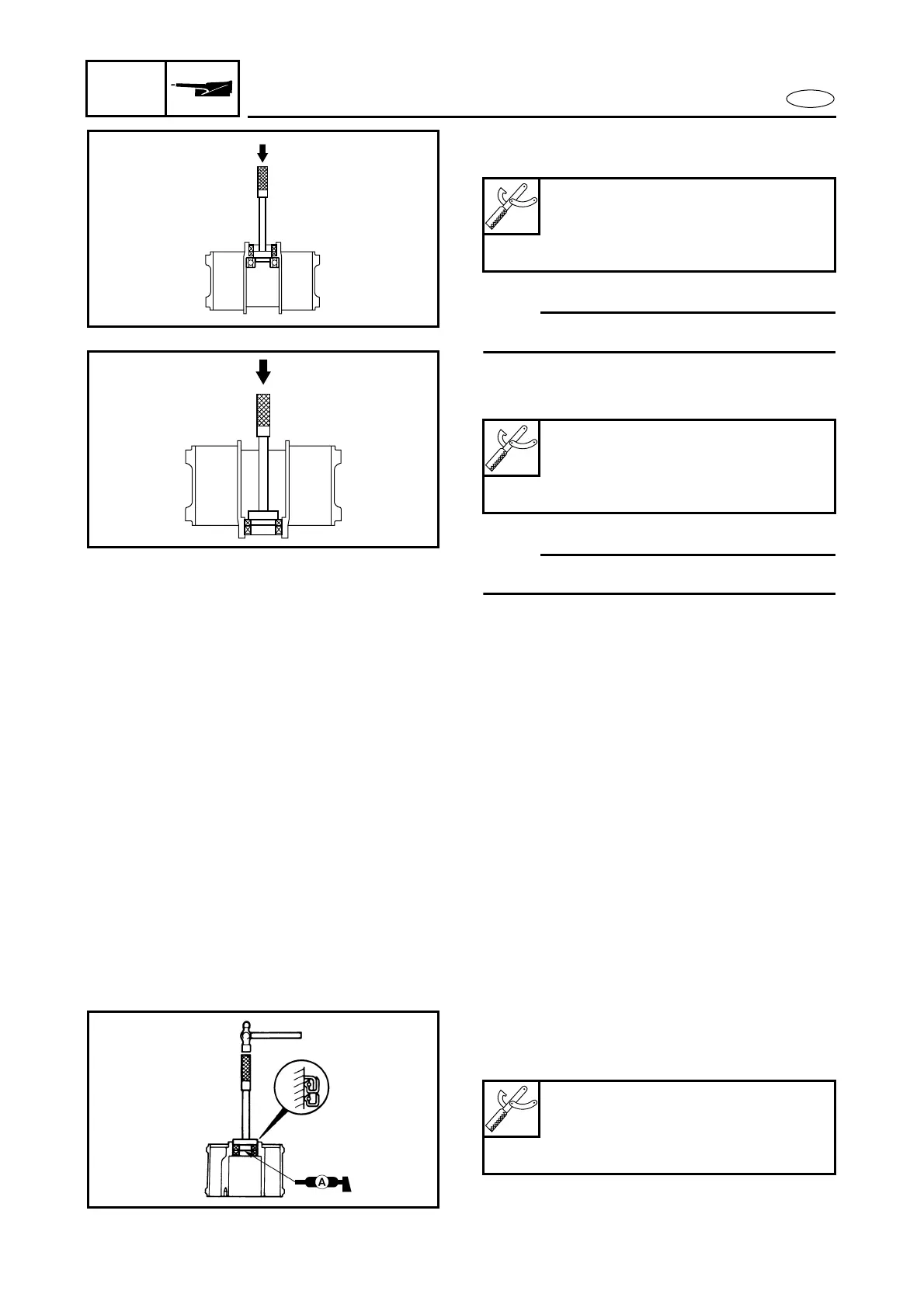

6-14
E
JET
PUMP
IMPELLER DUCT AND DRIVE SHAFT
5. Remove:
● Front bearing
NOTE:
Remove the front bearing with a press.
6. Remove:
● Oil seal
NOTE:
Remove the oil seals with press.
Impeller inspection
Refer to “JET PUMP UNIT” in
Chapter 3.
Drive shaft inspection
1. Inspect:
● Drive shaft
Damage/wear → Replace.
Driver rod L3:
YB-06071/90890-06652
Needle bearing attachment:
YB-06112/90890-06614
Driver rod L3:
YB-06071/90890-06652
Needle bearing attachment:
YB-06196/90890-06653
Drive shaft installation
1. Install:
● Oil seal
Driver rod:
YB-06071/90890-06606
Ball bearing attachment:
YB-06085/90890-06634
