8-29
E
HULL
HOOD
SHIFT LEVER
SHIFT LEVER

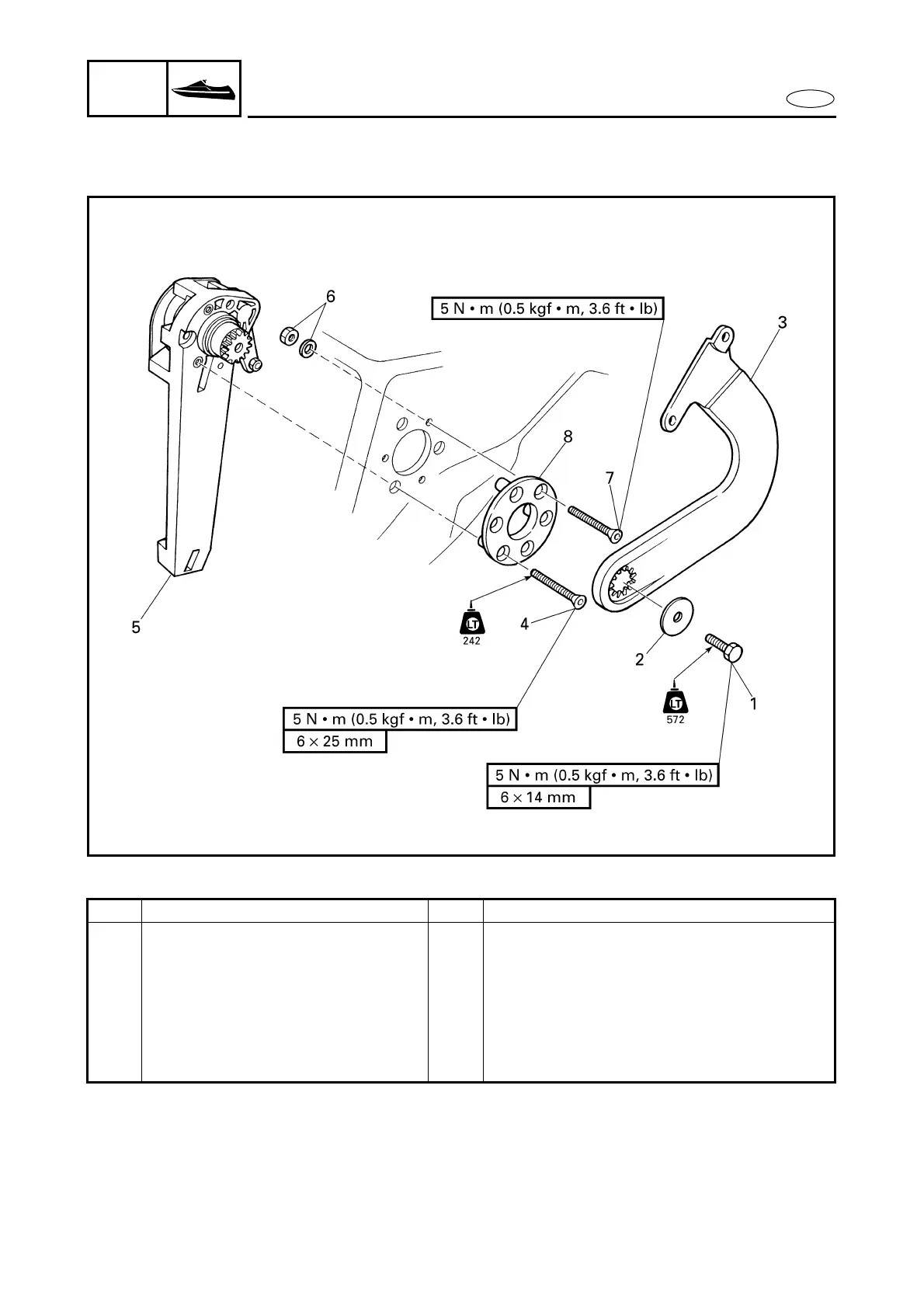

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
SHIFT LEVER REMOVAL Follow the left “Step” for removal.
Steering console cover Refer to “STEERING CONSOLE COVER”.
Shift cable Refer to “REMOTE CONTROL CABLES
AND SPEED SENSOR LEAD”.
1 Bolt 1
2 Washer 1
3 Shift lever 1 Mark its original position
