Yamaha WaveRunner XLT1200 Service Manual

4-33
FUEL
E
OIL PUMP

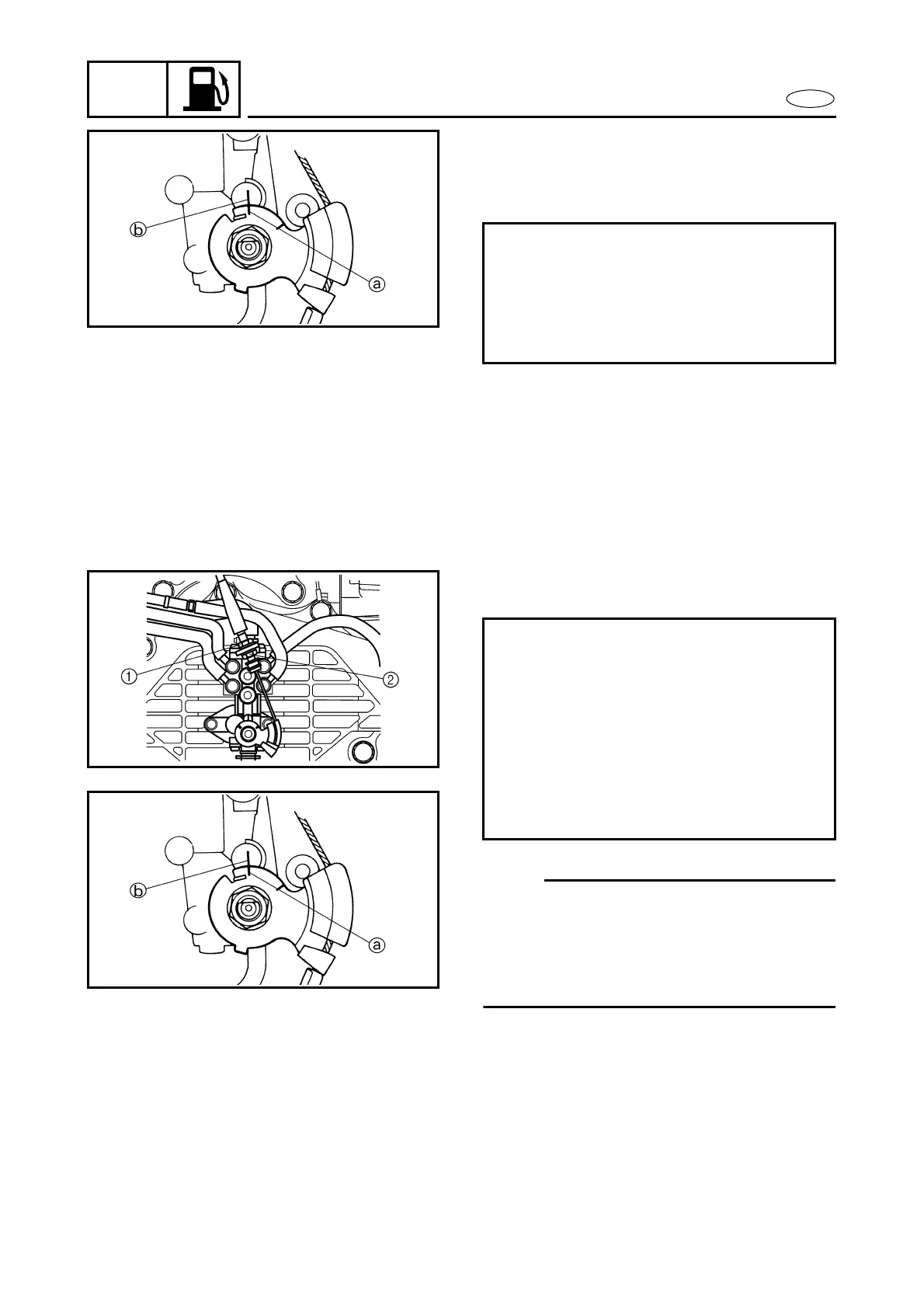

Oil pump cable adjustment
1. Check:
● Oil pump lever position
Incorrect → Adjust.
Checking steps:
● Fully close the carburetor throttle
valves.
● Check that the mark a on the oil pump
lever is aligned with the mark b on the
oil pump body.
2. Adjust:
● Oil pump cable
NOTE:
If the installation position has been marked
for reference on the inner cable at the car-
buretor end while marks a and b are
aligned, adjusting the cable at the carbure-
tor end is easier.
Adjustment steps:
● Loosen the locknut 1 and the adjust-
ing nut 2.
● Fully close the carburetor throttle
valves.
● Adjust the oil pump cable so that the
mark a on the oil pump lever is
aligned with the mark b on the oil
pump body.
● Tighten the adjusting nut and locknut.

Yamaha WaveRunner XLT1200 Specifications

General

Manufacturer	Yamaha
Model	WaveRunner XLT1200
Displacement	1176cc
Fuel Capacity	18.5 gallons
Seating Capacity	3 persons
Cooling System	Water-cooled
Starting System	Electric
Category	Personal Watercraft
Engine Type	2-stroke
Fuel Delivery	Mikuni BN44 carburetors
