7-31
E
–+
ELEC
YPVS SERVOMOTOR
YPVS SERVOMOTOR

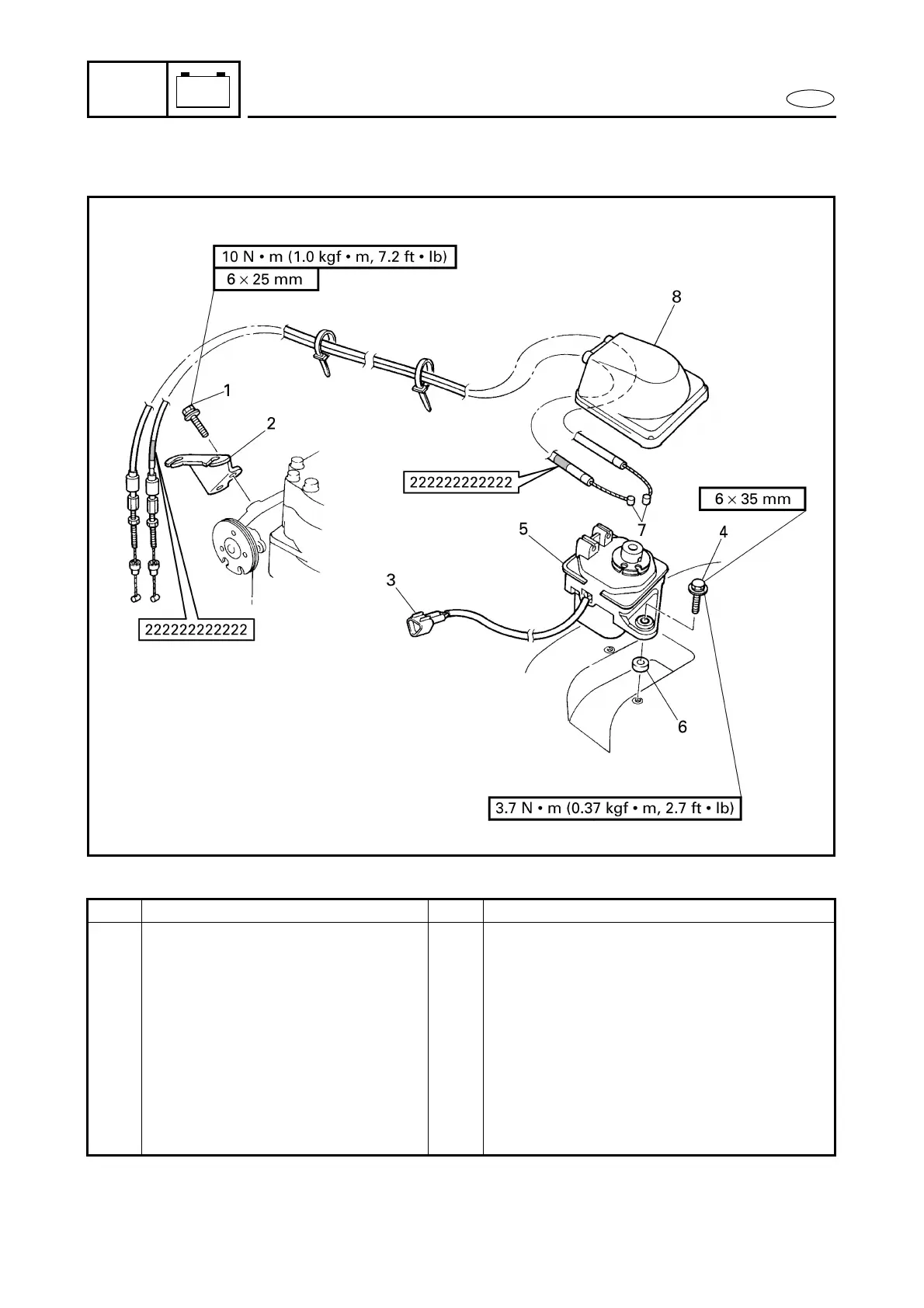

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
YPVS SERVOMOTOR REMOVAL Follow the left “Step” for removal.
1 Bolt 2
2 YPVS cable bracket 1
3 YPVS servomotor coupler 1
4 Bolt 2
5 YPVS servomotor 1
6 Spacer 2
7 YPVS cable 2 Slide the cover.
8 Cover 1
Reverse the removal steps for installation.
