6-24
E
JET
PUMP

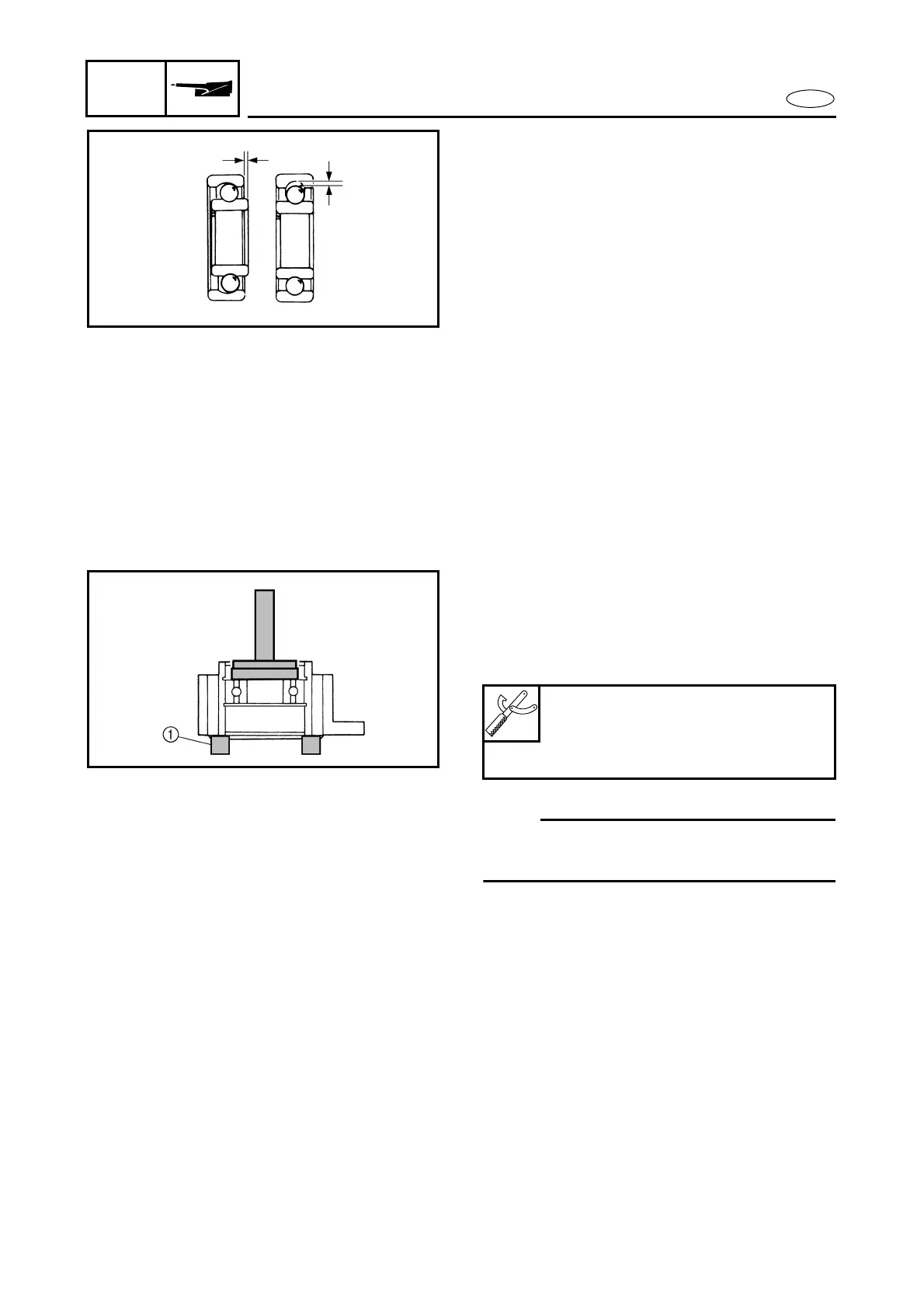

BEARING HOUSING
Bearing, intermediate drive shaft, and
grease hose inspection
1. Inspect:
● Bearing
Rotate the inner race by hand.
Damage/rough movement → Replace.
● Intermediate drive shaft
Damage/pitting → Replace.
● Grease hose
Cracks/wear → Replace.
Driven coupling inspection
1. Inspect:
● Driven coupling
● Driven coupling damper
Damage/wear → Replace.
Bearing installation
1. Install:
● Circlip (rear)
2. Install:
● Bearing
NOTE:
Support the intermediate housing with
steel blocks 1 and press the bearing.
Driver rod:
YB-06071/90890-06606
Bearing outer race attachment:
YB-06156/90890-06626
