ELECTRIC STARTER
5-42
EAM20110
ELECTRIC STARTER

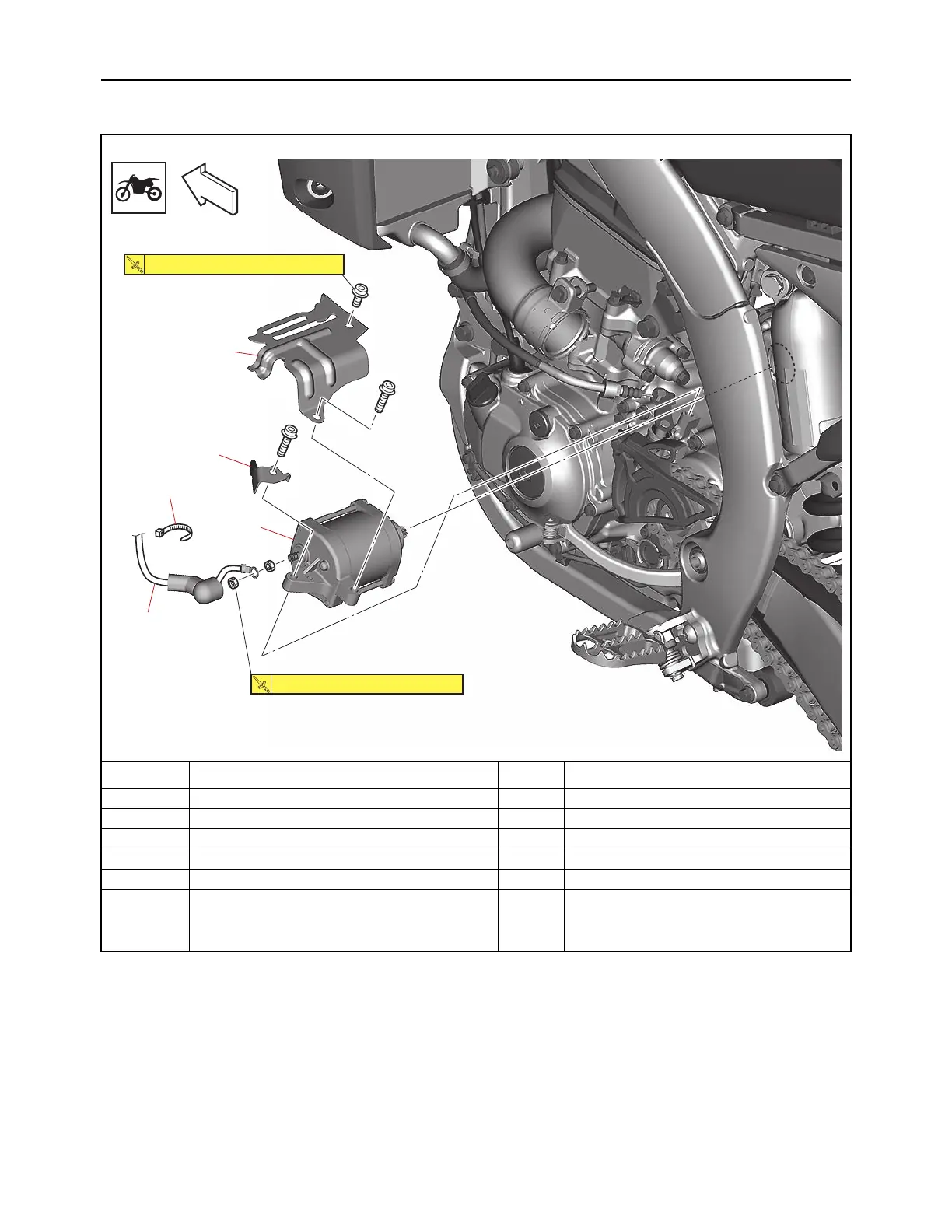

Removing the starter motor
Order Job/Parts to remove Q’ty Remarks
Exhaust pipe Refer to “ENGINE REMOVAL” on page 5-6.
1 Plastic locking tie 1
2 Starter motor cover (upper) 1
3 Starter motor 1
4 Starter motor cover (lower) 1
5 Starter motor lead 1
When removing or installing the installation
nut of the starter motor lead, be sure to hold
the nut on the starter motor side firmly in
place using a spanner.
5
1
2
3
FWD
10 N・m (1.0 kgf・m, 7.4 lb・ft)
6 N・m (0.6 kgf・m, 4.4 lb・ft)
4
To Next Page
