ELECTRIC STARTER
5-43

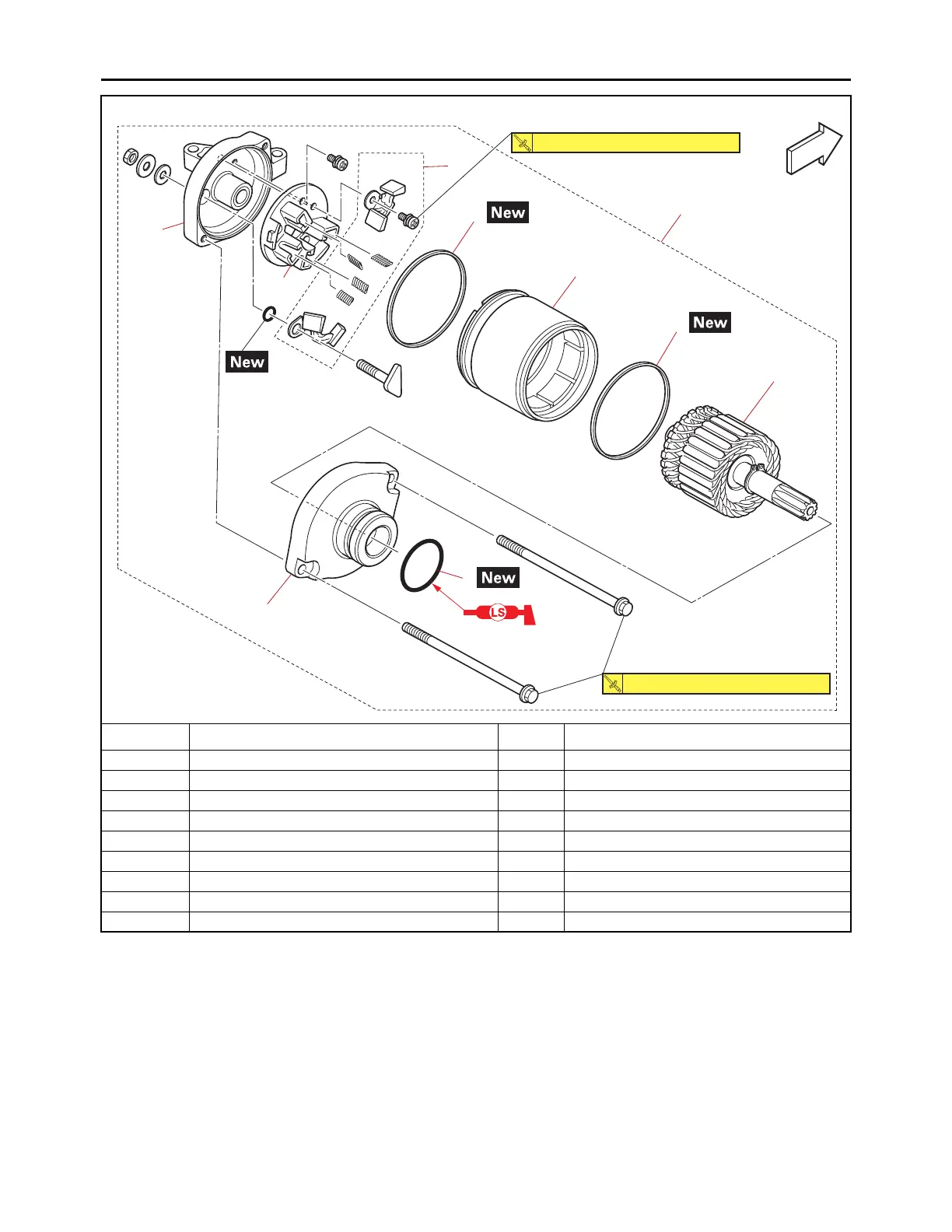

Disassembling the starter motor
Order Job/Parts to remove Q’ty Remarks
1 Starter motor assembly 1
2O-ring 1
3 Starter motor front cover 1
4 Starter motor yoke 1
5 Armature assembly 1
6Gasket 2
7 Brush set 1
8 Brush holder 1
9 Starter motor rear cover 1
2
3
4
5
6
6
7
1
FWD
9
8
4.5 N・m (0.45 kgf・m, 3.3 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
To Next Page
