OIL PUMP
5-59

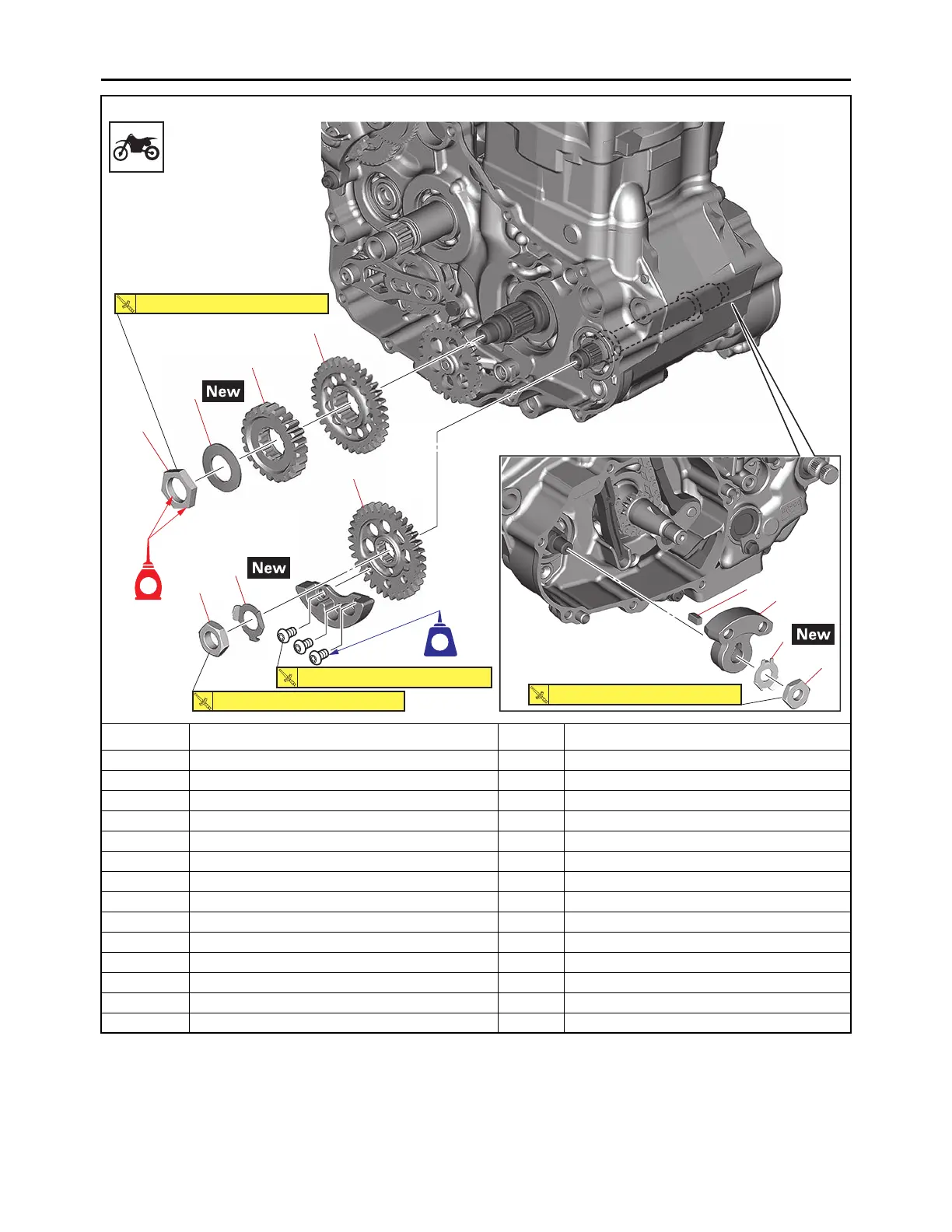

Removing the balancer
Order Job/Parts to remove Q’ty Remarks
Primary driven gear Refer to “CLUTCH” on page 5-46.
Right crankcase cover Refer to “CLUTCH” on page 5-46.
Stator coil assembly Refer to “GENERATOR” on page 5-37.
1 Nut (balancer) 1
2 Nut (primary drive gear) 1
3 Nut (balancer weight gear) 1
4 Lock washer 1
5 Balancer 1
6 Straight key 1
7 Conical washer 1
8 Primary drive gear 1
9 Balancer drive gear 1
10 Lock washer 1
11 Balancer weight gear 1
10 N・m (1.0 kgf・m, 7.4 lb・ft)
50 N・m (5.0 kgf・m, 37 lb・ft)
6
2
7
8
9
11
10
3
5
4
1
E
LT
45 N・m (4.5 kgf・m, 33 lb・ft)
80 N・m (8.0 kgf・m, 59 lb・ft)
