ENG
4-4

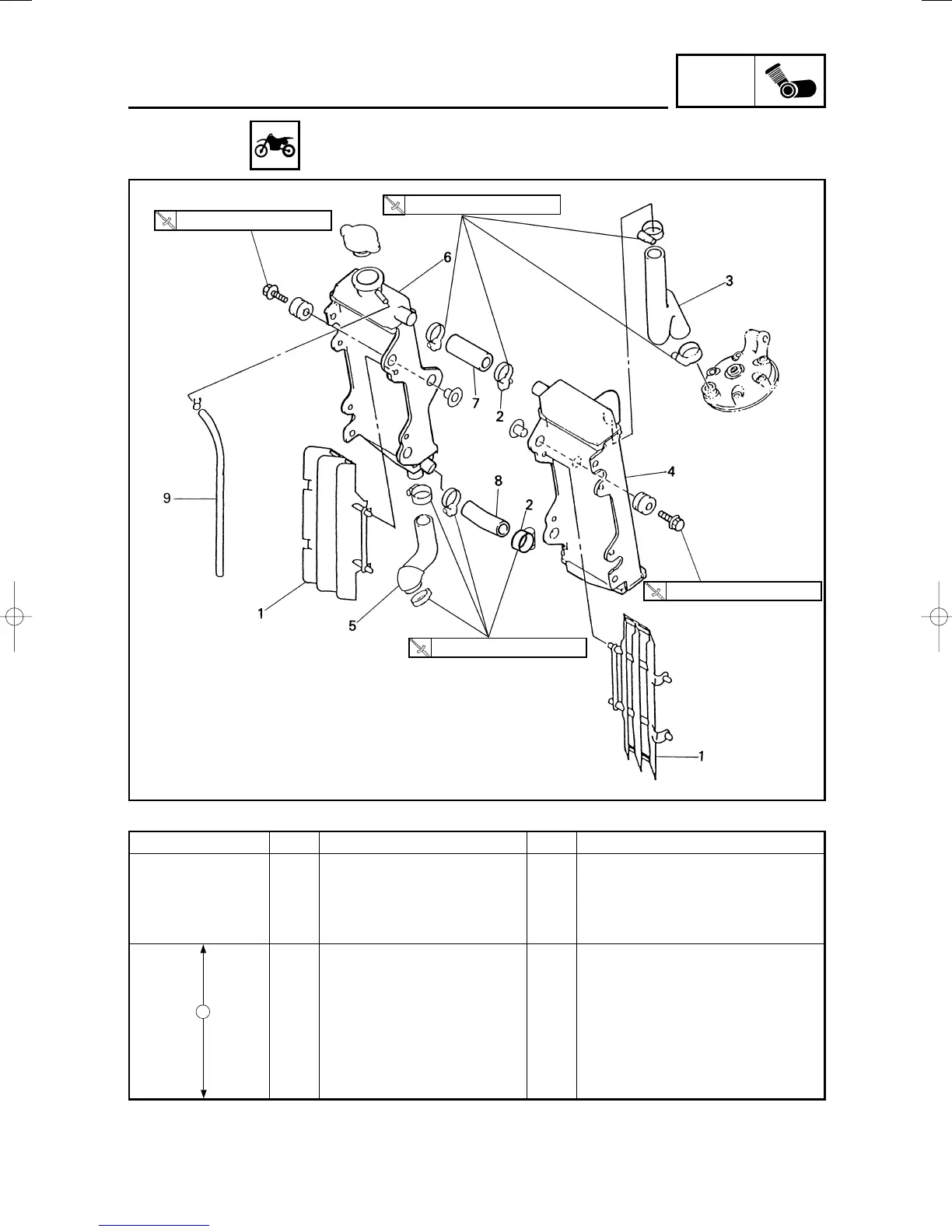

RADIATOR
Extent of removal Order Part name Q’ty Remarks
RADIATOR REMOVAL
Preparation for Drain the coolant.
Refer to “COOLANT REPLACEMENT
”
removal section in the CHAPTER 3.
Seat and fuel tank Refer to “SEAT, FUEL TANK AND
SIDE COVERS” section.
1 Panel 2 Refer to
“
REMOVAL POINTS”.
2 Clamp (radiator hose 2, 3) 2 Only loosening.
3 Radiator hose 1 1
4 Radiator (left) 1
5 Radiator hose 4 1
6 Radiator (right) 1
7 Radiator hose 2 1
8 Radiator hose 3 1
9 Radiator breather hose 1
EC450001
RADIATOR
Extent of removal: 1
Radiator removal
1
1 Nm (0.1 m•kg, 0.7 ft•lb)
10 Nm (1.0 m•kg, 7.2 ft•lb)
1 Nm (0.1 m•kg, 0.7 ft•lb)
10 Nm (1.0 m•kg, 7.2 ft•lb)
