5-62
CHAS
REAR SHOCK ABSORBER
EC585111
Spring (rear shock absorber)

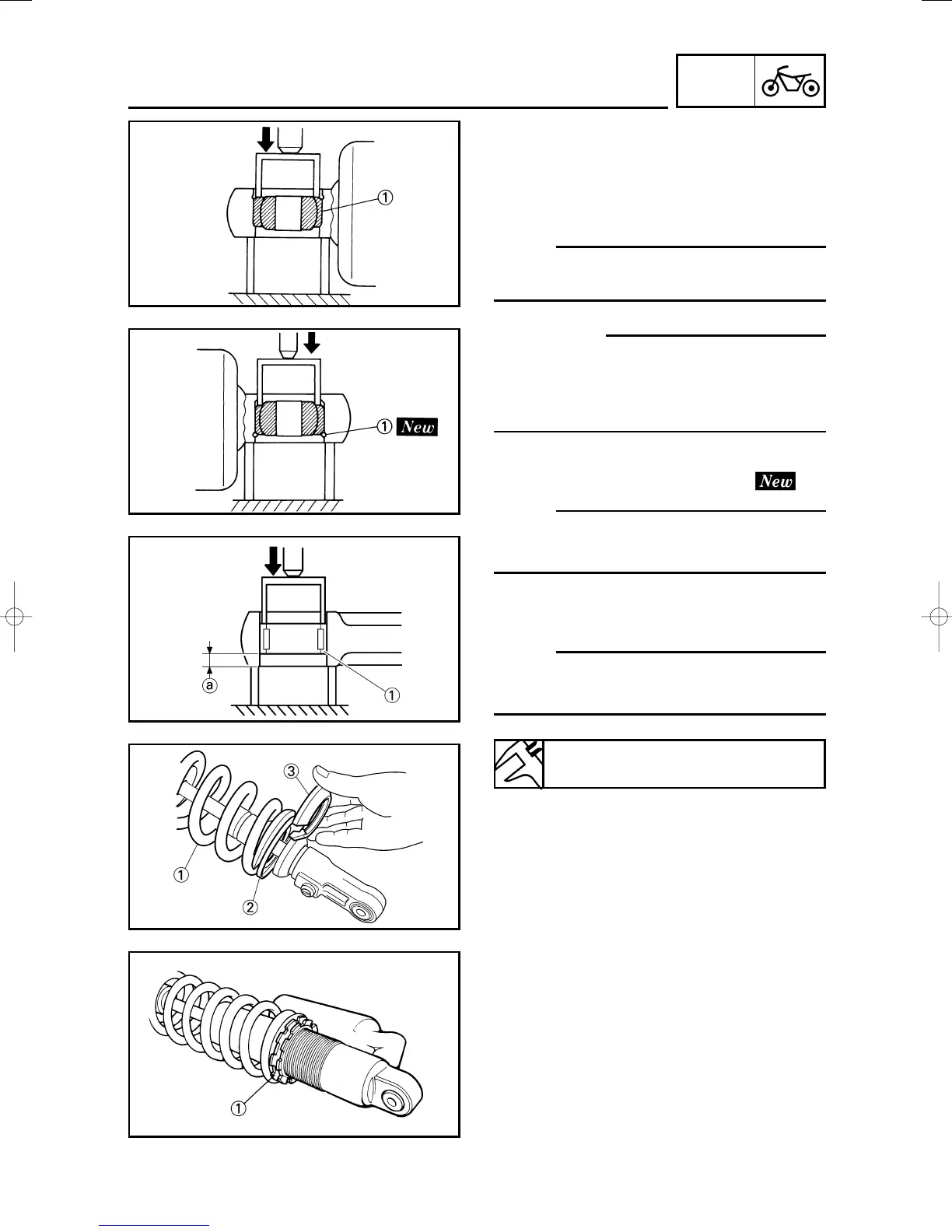

1. Install:
9Spring 1
9Spring guide (upper) 2
9Spring guide (lower) 3
2. Tighten:
9Adjuster 1
EC585000
ASSEMBLY AND INSTALLATION
EC585320
Bearing
1. Install:
9Upper Bearing 1
NOTE:
Install the bearing parallel until the stopper ring
groove appears by pressing its outer race.
cC
Do not apply the grease on the bearing
outer race because it will wear the rear
shock absorber surface on which the bear-
ing is press fitted.
2. Install:
9Stopper ring (upper bearing) 1
NOTE:
After installing the stopper ring, push back the
bearing until it contacts the stopper ring.
3. Install:
9Lower bearing 1
NOTE:
Install the bearing by pressing it on the side hav-
ing the manufacture’s marks or numbers.
Installed depth of the bearing
aa
:
4 mm (0.16 in)
