5-23
CHAS

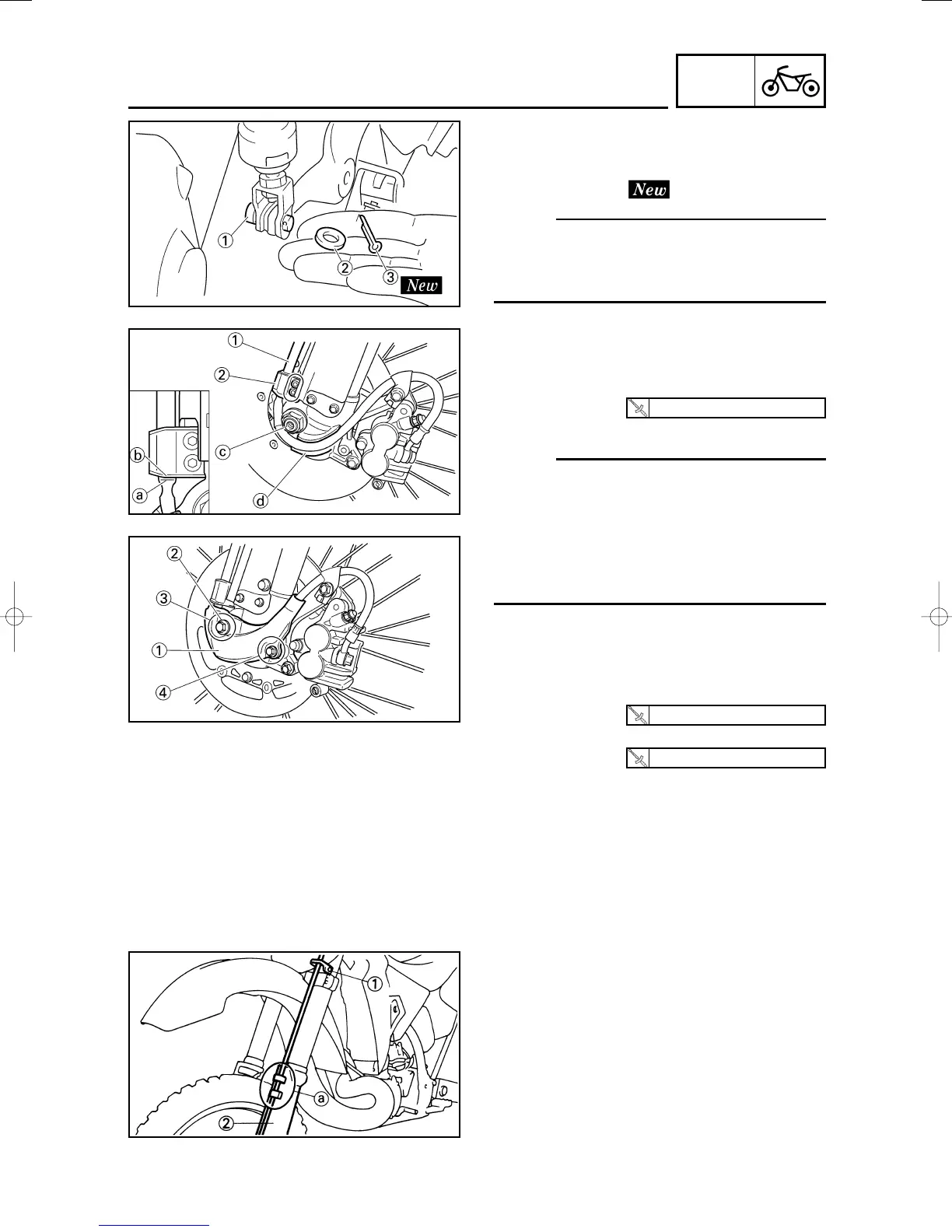

FRONT BRAKE AND REAR BRAKE
EC5A5911
Front brake hose
1. Install:
9Brake hose 1
To brake hose holder 2.
NOTE:
Before tightening the bolt (brake hose holder),
align the top a of the brake hose neck with the
brake hose holder bottom b. Then pass the
brake hose in front of the axle boss c and fit it
into the hose groove d so that the brake hose
does not contact the nut (wheel axle).
2. Install:
9Hose cover 1
9Plain washer 2
9Bolt [hose cover (M8)] 3
9Bolt [hose cover (M6)] 4
10 Nm (1.0 m•kg, 7.2 ft•lb)
16 Nm (1.6 m•kg, 11 ft•lb)
7 Nm (0.7 m•kg, 5.1 ft•lb)
4. Install:
9Pin 1
9Plain washer 2
9Cotter pin 3
NOTE:
After installing, check the brake pedal height.
Refer to “REAR BRAKE ADJUSTMENT” section
in the CHAPTER 3.
3. Pass the brake hose through the cable
guide 1, then through the guide a on the
protector 2.
5MW-9-30-5A 7/6/00 8:58 AM Page 46
