4-54
WATER PUMP
ENG
EC4G5220

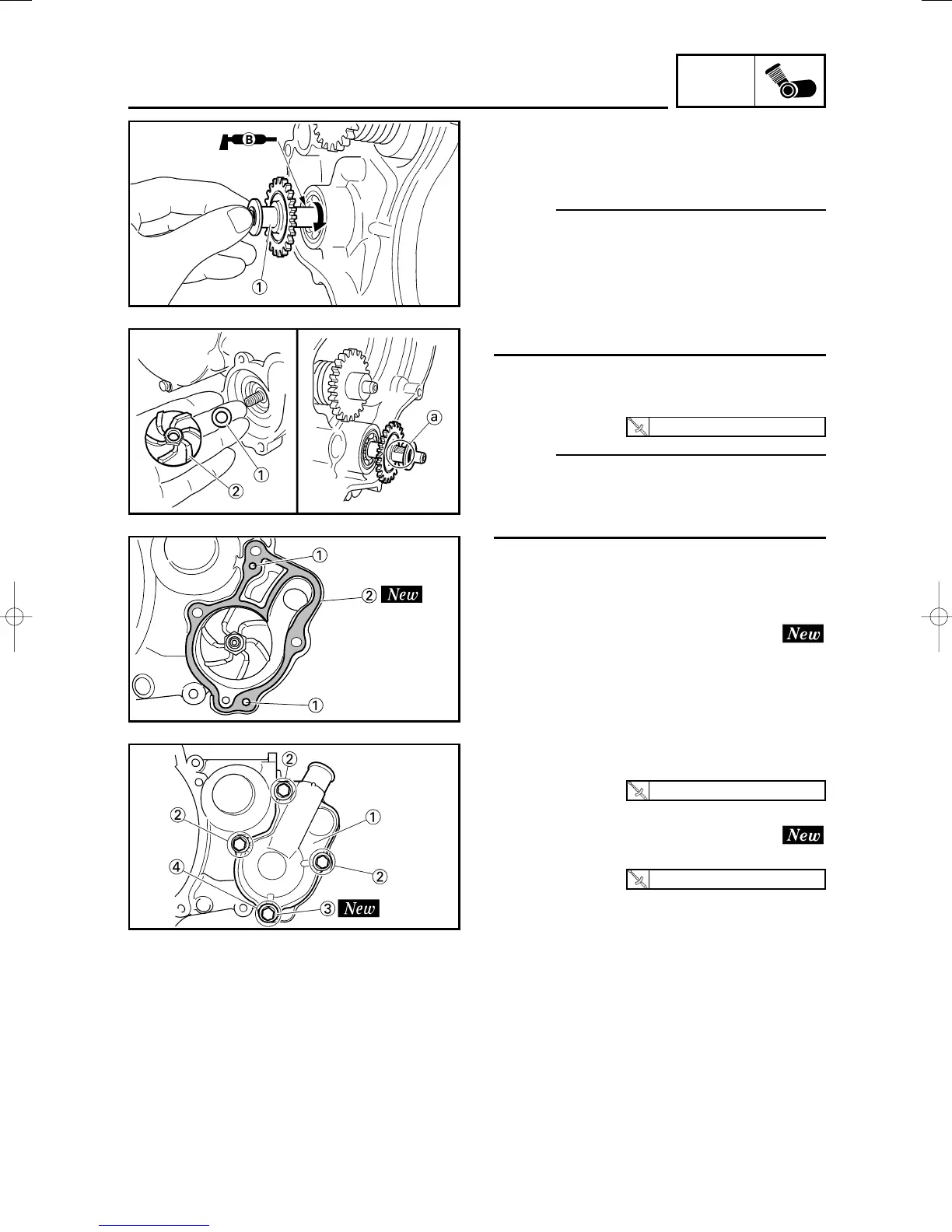

Impeller shaft
1. Install:
9Impeller shaft 1
NOTE:
9Take care so that the oil seal lip is not damaged
or the spring does not slip off its position.
9When installing the impeller shaft, apply the
lithium soap base grease on the oil seal lip and
impeller shaft. And install the shaft while turn-
ing it.
2. Install:
9Plain washer 1
9Impeller 2
NOTE:
Hold the impeller shaft on its width across the
flats a with spanners, etc. and install the
impeller.
3. Install:
9Dowel pin 1
9Gasket (water pump housing cover) 2
4. Install:
9Water pump housing cover 1
9Bolt (water pump housing cover) 2
9Copper washer (coolant drain bolt) 3
9Coolant drain bolt 4
10 Nm (1.0 m•kg, 7.2 ft•lb)
10 Nm (1.0 m•kg, 7.2 ft•lb)
14 Nm (1.4 m•kg, 10 ft•lb)
5MW-9-30-4C 7/3/00 7:43 PM Page 12
