CARBURETOR AND REED VALVE
EC464401

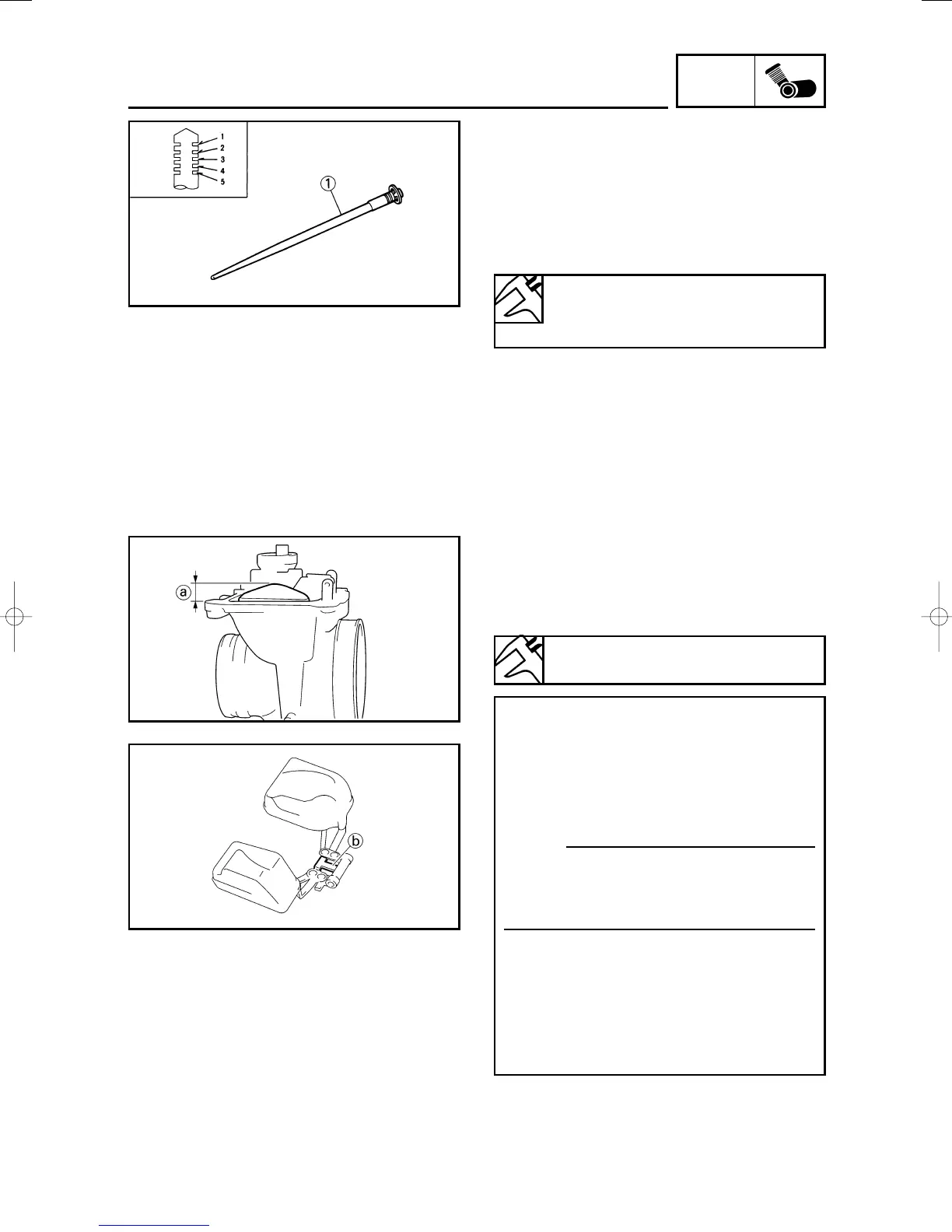

Jet needle
1. Inspect:
9Jet needle 1
Bends/Wear → Replace.
9Clip groove
Free play exists/Wear → Replace.
9Clip position
*For EUROPE
EC464511
Float height
1. Measure:
9 Float height a
Out of specification → Adjust.
Standard clip position:
No.2 Groove
*No.3 Groove
Float height:
5.5~7.5 mm (0.22~0.30 in)
Measurement and adjustment steps:
9Hold the carburetor in an upside down posi-
tion.
9Measure the distance between the mating
surface of the float chamber and top of the
float using a vernier calipers.
NOTE:
The float arm should be resting on the nee-
dle valve, but not compressing the needle
valve.
9If the float height is not within specification,
inspect the valve seat and needle valve.
9If either is worn, replace them both.
9If both are fine, adjust the float height by
bending the float tab b on the float.
9Recheck the float height.
