4-40
KICK AXLE, SHIFT SHAFT AND PRIMARY DRIVE GEAR
ENG
EC4C8100

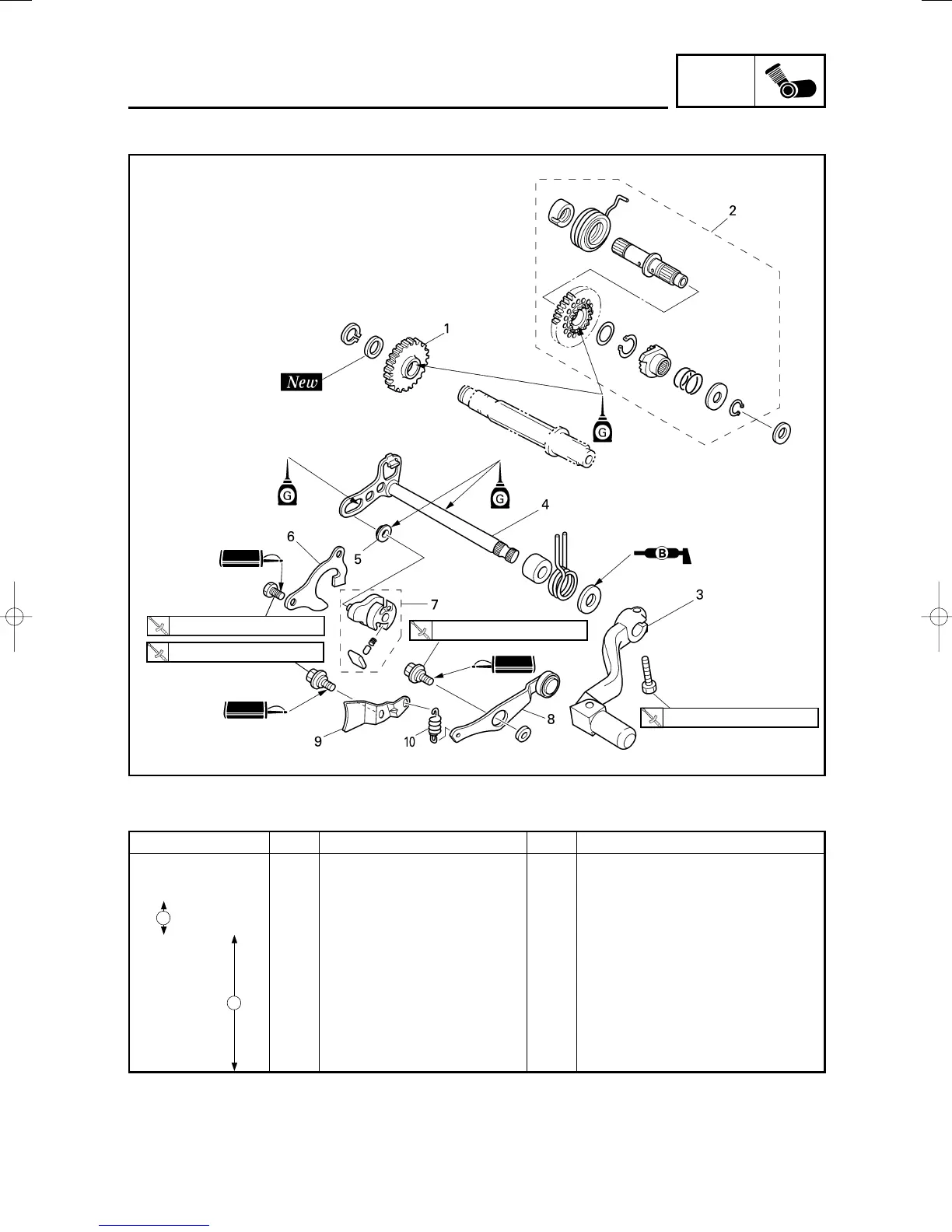

KICK AXLE AND SHIFT SHAFT
Extent of removal Order Part name Q’ty Remarks
KICK AXLE AND SHIFT SHAFT
REMOVAL
1 Kick idle gear 1
2 kick axle assembly 1 Refer to “REMOVAL POINTS”.
3 Shift pedal 1
4 Shift shaft 1
5 Roller 1
6 Shift guide 1
7 Shift lever assembly 1
Refer to “REMOVAL POINTS”.
8 Stopper lever 1
9 Holder 1
10 Tension spring 1
1
Extent of removal: 1 Kick axle and kick idle gear removal
2 Shift shaft and stopper lever removal
2
10 Nm (1.0 m•kg, 7.2 ft•lb)
10 Nm (1.0 m•kg, 7.2 ft•lb)
10 Nm (1.0 m•kg, 7.2 ft•lb)
10 Nm (1.0 m•kg, 7.2 ft•lb)
5MW-9-30-4B 7/3/00 7:06 PM Page 28
