4-43

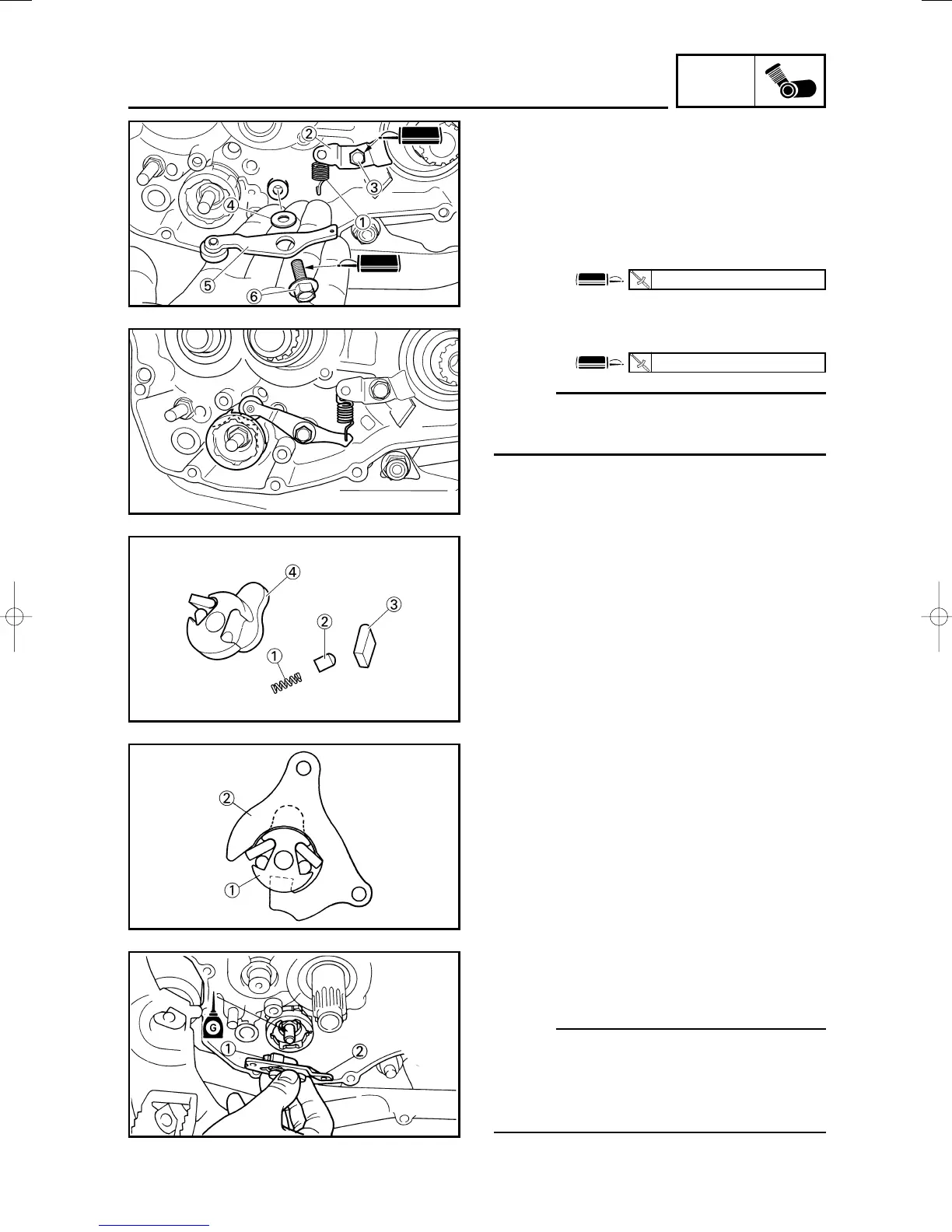

KICK AXLE, SHIFT SHAFT AND PRIMARY DRIVE GEAR
ENG
3. Install:
9Shift lever assembly 1
9Shift guide 2
NOTE:
9The shift lever assembly is installed at the
same time as the shift guide.
9Apply the transmission oil on the bolt (segment)
shaft.
2. Install:
9Shift lever assembly 1
To shift guide 2.
EC4C5202
Shift guide and shift lever assembly
1. Install:
9Spring 1
9Pawl pin 2
9Pawl 3
To shift lever 4.
EC4C5000
ASSEMBLY AND INSTALLATION
EC4C5130
Stopper lever
1. Install:
9Tension spring 1
9Holder 2
9Bolt (holder) 3
9Plain washer 4
9Stopper lever 5
9Bolt (stopper lever) 6
NOTE:
Align the stopper lever roller with the slot on seg-
ment.
10 Nm (1.0 m•kg, 7.2 ft•lb)
10 Nm (1.0 m•kg, 7.2 ft•lb)
5MW-9-30-4B 7/3/00 7:08 PM Page 34
