4-51
WATER PUMP
ENG
EC4G0000

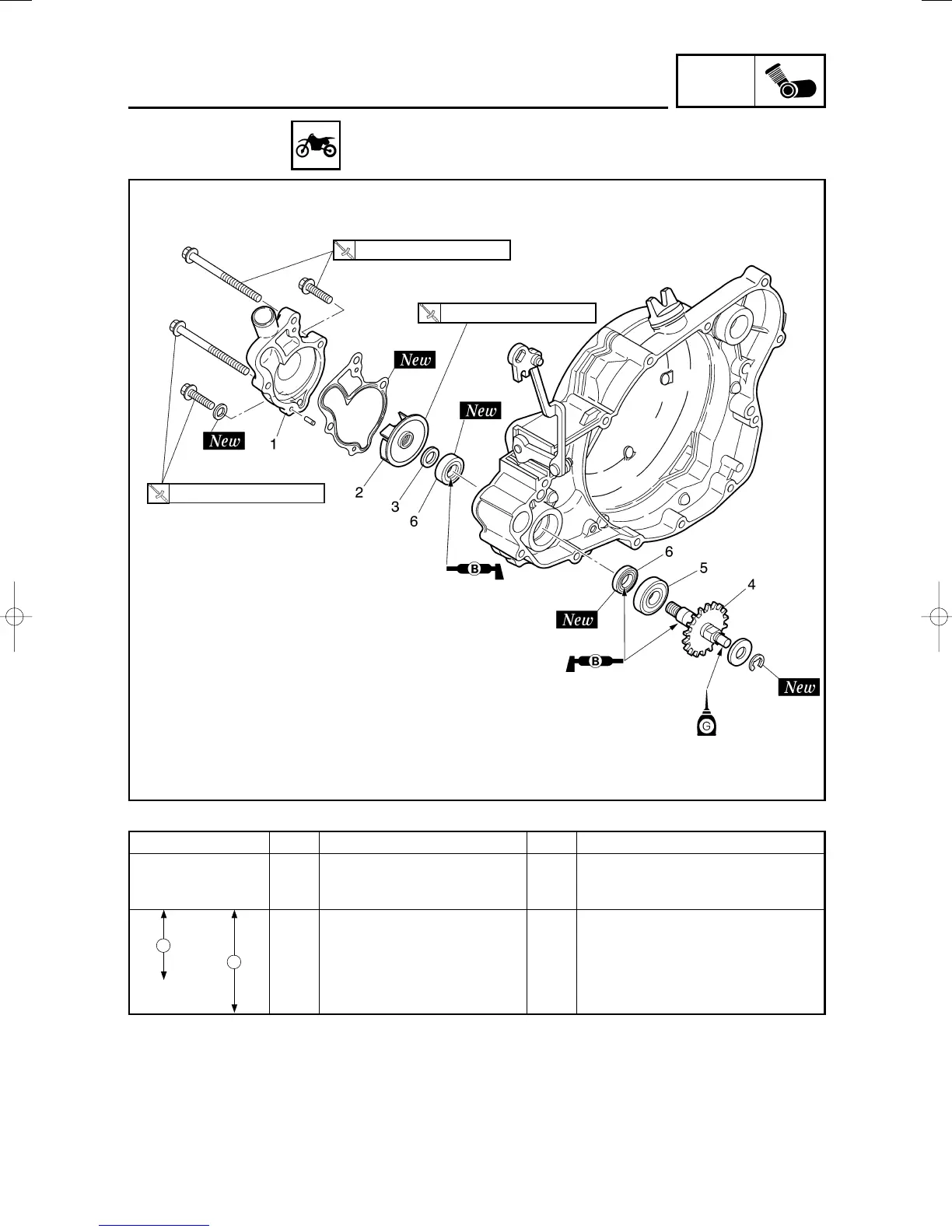

WATER PUMP
Extent of removal: 1 Impeller shaft removal 2 Oil seal removal
Extent of removal Order Part name Q’ty Remarks
WATER PUMP DISASSEMBLY
Preparation for Crankcase cover (right)
Refer to “KICK AXLE, SHIFT SHAFT AND
removal
PRIMARY DRIVE GEAR” section.
1 Water pump housing cover 1
2 Impeller 1
3 Plain washer 1 Refer to “REMOVAL POINTS”.
4 Impeller shaft 1
5 Bearing 1
6 Oil seal 2
Refer to “REMOVAL POINTS”.
1
2
10 Nm (1.0 m•kg, 7.2 ft•lb)
10 Nm (1.0 m•kg, 7.2 ft•lb)
14 Nm (1.4 m•kg, 10 ft•lb)
5MW-9-30-4C 7/3/00 7:41 PM Page 6
