Description and Function of Each Part

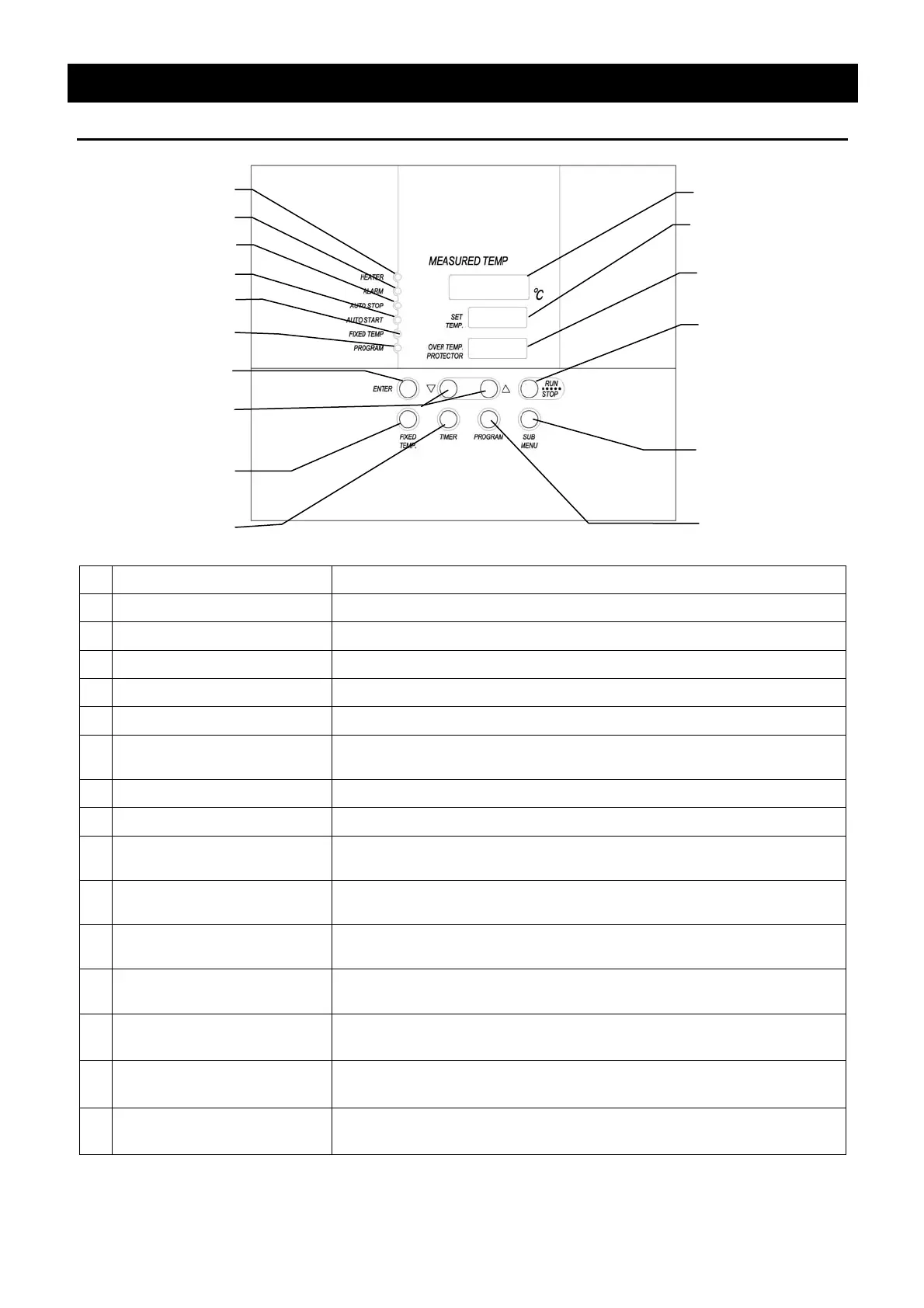

Control Panel
① START/STOP Key：
Starts/stops the operation.
② ▲▼ Key：
Uses for rising UP/lowering DOWN the setting value.
③ ENTER Key：
Settles the inputted value.
④ FIXED TEMP Key：
Chooses the fixed temperature operation.
⑤ TIMER Key：
Chooses the timer operation (Quick Auto Stop/Auto Stop/Auto Start).
⑥ PROGRAM Key：
Chooses the program operation or program creation mode.
⑦ SUBMENU Key：
Uses for setting the overheating prevention temperature, calibration
offset temperature, key lock function, or program repeat function.
⑧ HEATER Lamp：
Lights while the heater works.
⑨ ALARM Lamp：
Lights up when an error occurs. (Buzzer sounds simultaneously.)
⑩ AUTO STOP Lamp：
Blinks while setting quick auto stop timer or auto stop timer.
Lights while quick auto stop timer or auto stop timer is running.
⑪ AUTO START Lamp：
Blinks while setting auto start timer.
Lights while auto start timer is running.
⑫ FIXED TEMP Lamp：
Blinks while setting fixed temperature operation.
Lights while fixed temperature operation is running.
⑬ PROGRAM Lamp：
Blinks while setting program operation.
Lights while program operation is running.
⑭
Measurement Temperature
Display：
Displays the measured temperature, setting character, alarm
information.
⑮
Setting Temperature
Display：
Displays the setting temperature, setting value for timer mode,
remaining time.
⑯
Overheating Prevention
Temperature Display：
Displays the setting temperature for overheating prevention device.
⑧
⑨
⑩
⑪
⑫
⑬
③
②
④
⑤
⑦
⑥
①
⑯
⑮
⑭
