Yamato DP23C User Manual

23
Operation Method
Program Operation
Program creation

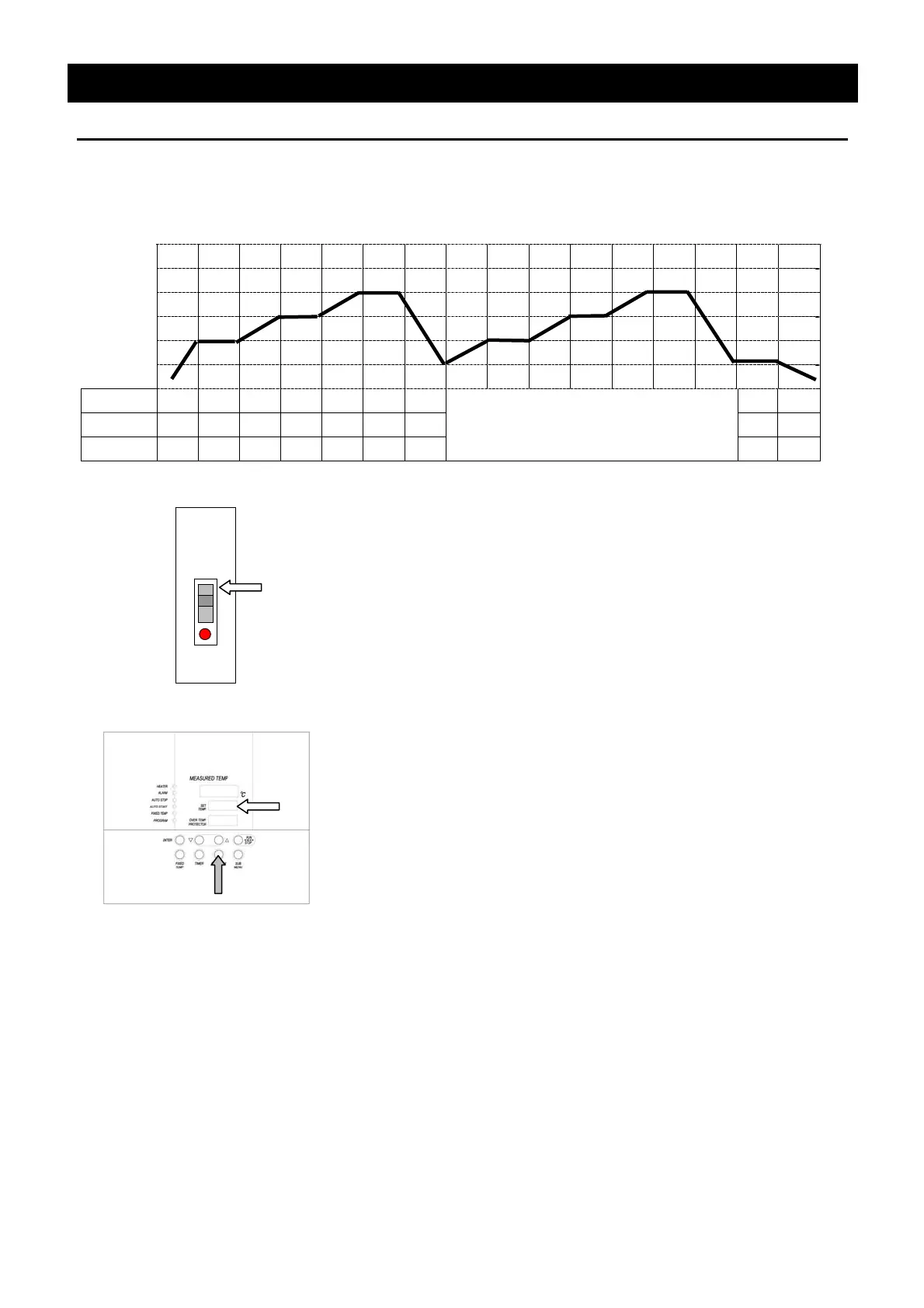

The program pattern below is explained as an example.
1. Program pattern example
Temp.
200℃
100℃
0℃
Step 1 2 3 4 5 6 7 8 9
Temp.(℃)
100 100 150 150 200 200 50 50 25
Time(min.)
25 30 15 90 25 180 150
← Repeat function →
The number of steps is not counted.
180 100
1. Turn on the power
• Turn on the power switch of the unit.
• The display on the controller lights on.
• The initial screen is displayed for about four seconds, then the
measurement temperature (temperature in furnace) is displayed.
 The initial screen displays the software version information, sensor
used and setting temperature of overheating prevention device.
2. Select program mode/program pattern
① Press the PROGRAM key once.
The measurement temperature display screen displays the
previous program mode.
Press the PROGRAM key again to display the next program
mode.
② Select the mode and press the ENTER key.
• When PrG1 is selected, the measurement temperature display
screen displays "End".
• When PrG2 is selected, the measurement temperature display
screen displays the program pattern "PAt1". For the pattern of
PrG2, select "1" or "2" using the "▲▼". Press the ENTER key
again. The measurement temperature display screen displays
"End".
• When PrG3 is selected, the measurement temperature display
screen displays "PAt1". For the pattern of PrG3, select "1", "2"
or "3" using the "▲▼". Press the ENTER key again. The
measurement temperature display screen displays "End".
 Any of PrG1. PrG2 or PrG3 can be selectable in the program
example above, where nine steps maximum are used.
