4 MACHINING PROGRAM
4-82
D. Using upper turret and HD2 for milling, lower turret and HD1 is using for milling
1. Sample program
End motion for machining
 M05: Stop of milling spindle rotation
 M302: C-axis disconnect/turning mode
 M09: All coolants OFF
 Each axis positioning to zero return
 M30: Reset and rewind
Machining motion
Preparation motion for machining
 G109L1: Upper turret selection
 M902: HD2 spindle selection
 M300: C-axis connect/Milling mode select
 M312: C-axis unclamping
 G94: Feed per minute
 G97: Constant surface speed control OFF
 T001M06: Tool change (TNo.01)
 B-axis positioning
 M107: B-axis clamping
 G97S3000: Rotation speed 3000 min
-1
 M03: Milling spindle forward rotation
 G10.9X0: Radius data input mode
 M51: Milling spindle-through coolant ON

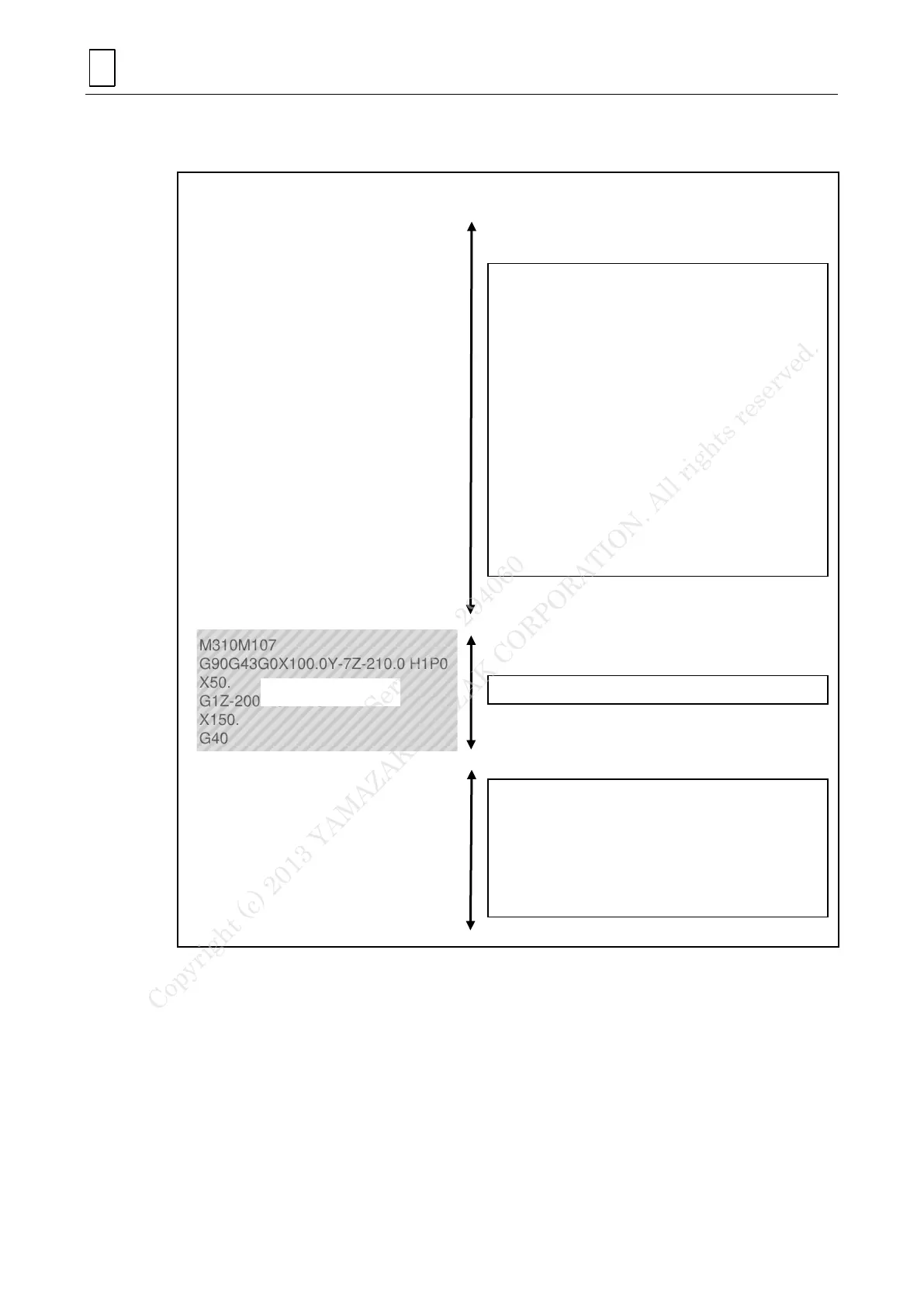

(Upper turret: HD2- Milling, Lower turret: HD1- Milling (1/2))
jiku
G109L1
M902
M300
M312
G0G90G94G54G97
G40G49G80G67G69
G91G28X0
G28Z0
G28Y0
G28B0
M950
T001T000M06
G91G28X0
G28Y0
G28Z0
M108
G90G53B90.0
M107
G97M03S3000
G10.9X0
M51
M951
M310M107
G90G43G0X100.0Y-7Z-210.0 H1P0
X50.
G1Z-200.R3.F115.
X150.
G40
M05
M302
M952
M09
G91G28X0
G28Z0
G28Y0
G28B0
M30
