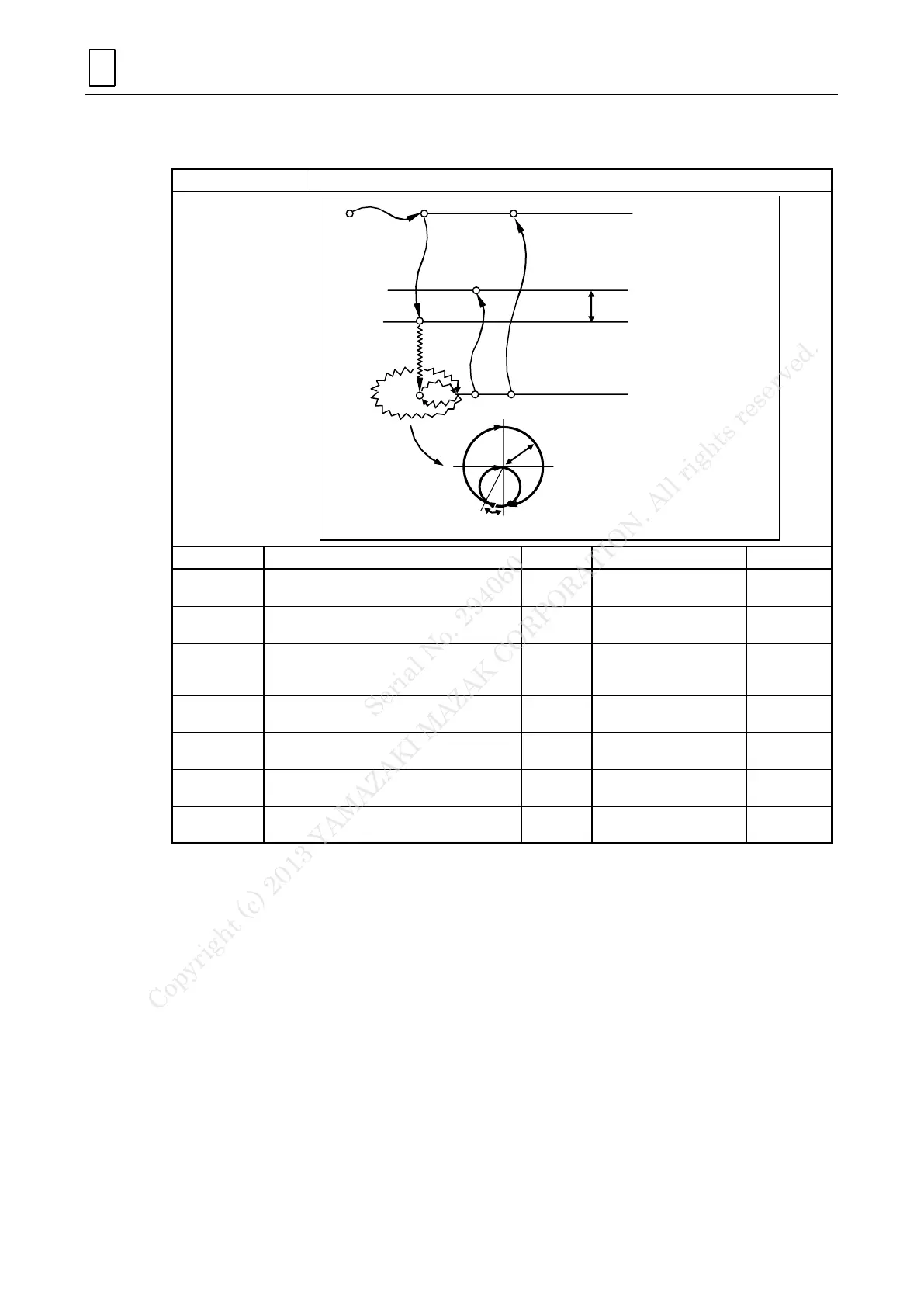

K. Fixed cycles (Chamfering cutter (CW))
1. Command
Programming format
G71.1 Xx Yy Rr Zz Qq Pp Dd Ff
Function
Code value
Description
Unit
Setting range
Omit
x, y
Machining position (X, Y-axis)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Possible
r
Designation of R-point position
(incremental value from initial point)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
z
Designation of hole bottom position
(absolute/incremental value from reference
point)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
q
Radius
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
p
Overlapping length (in arc)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Possible
d
Distance from R-point
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Possible
f
Feed rate
mm/min
in/min
0 to 200000.0000 (mm)
0 to 20000.00000 (in)
Impossible
Initial point
R-point
Point D
Point Z
MEP140
5
d
G99
f
G98
q
p
3
2
1
4
