2. Offset for the axis of rotation of the rotational axis
A. Offset for the axis of rotation of B-axis
Parameter
Contents
Setting range
Setting unit
BA62
Amount of offset for the B-axis — spindle distance
±99999999
0.0001 mm
0.00001 in
B. Offset for the axis of rotation of C-axis
Parameter
Contents
Setting range
Setting unit
S5
Rotational center of the table
±99999999
0.0001 mm
0.00001 in

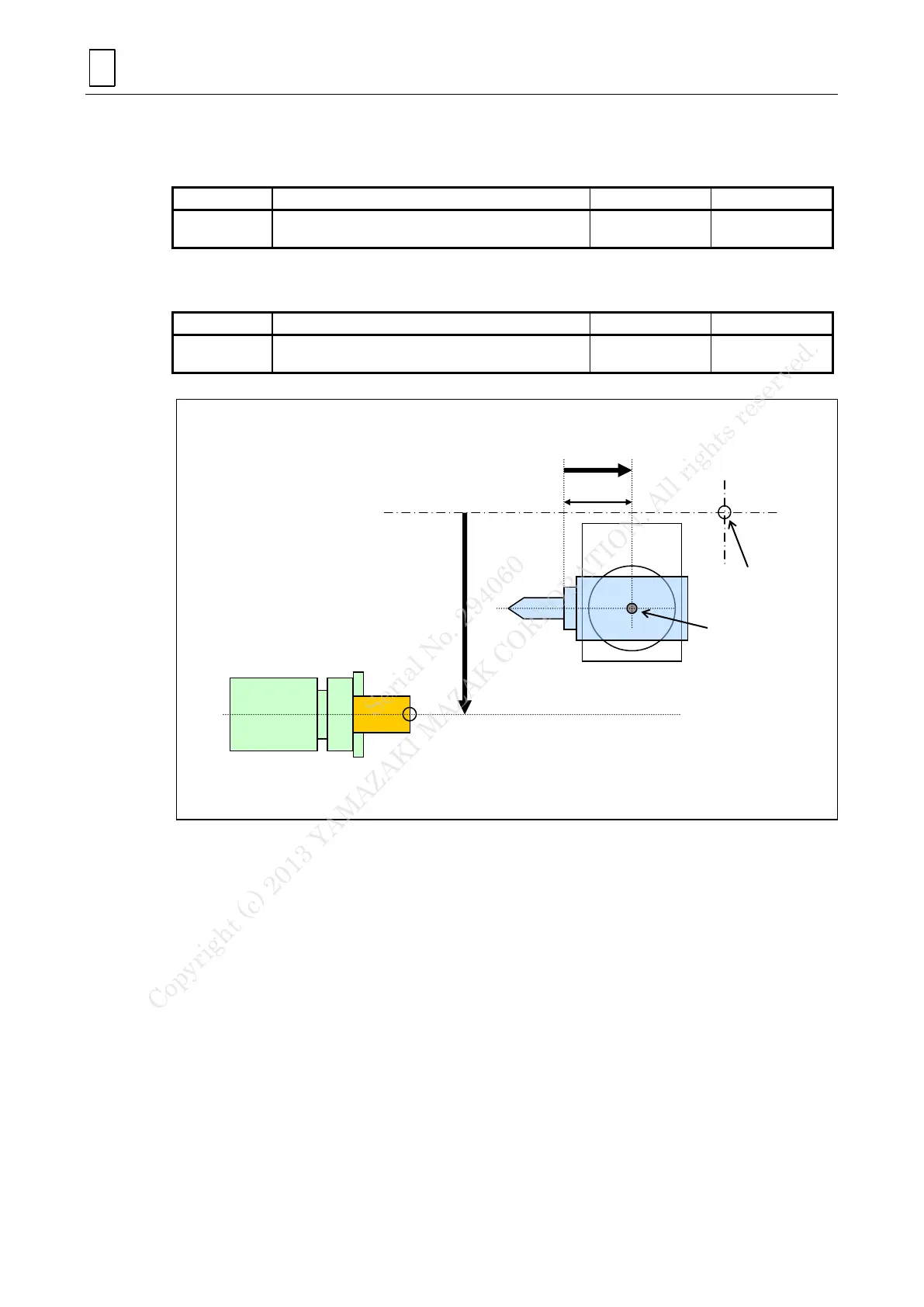

Fig. 2-1 Horizontal type
D734P2014
BA62
S5
Reference point
of the workpiece
Offset vector from tool holder end
to B-axis center
Machine origin
Axis of B-axis
rotation
Axis of
C-axis rotation
