YAMAZAKI MAZAK INTEGREX i Series User Manual

MACHINING PROGRAM 4
4-1
4 MACHINING PROGRAM
This chapter explains how to make a machining program.
4-1 Set Up
This section explains how to set a workpiece origin and tool offset parameter.

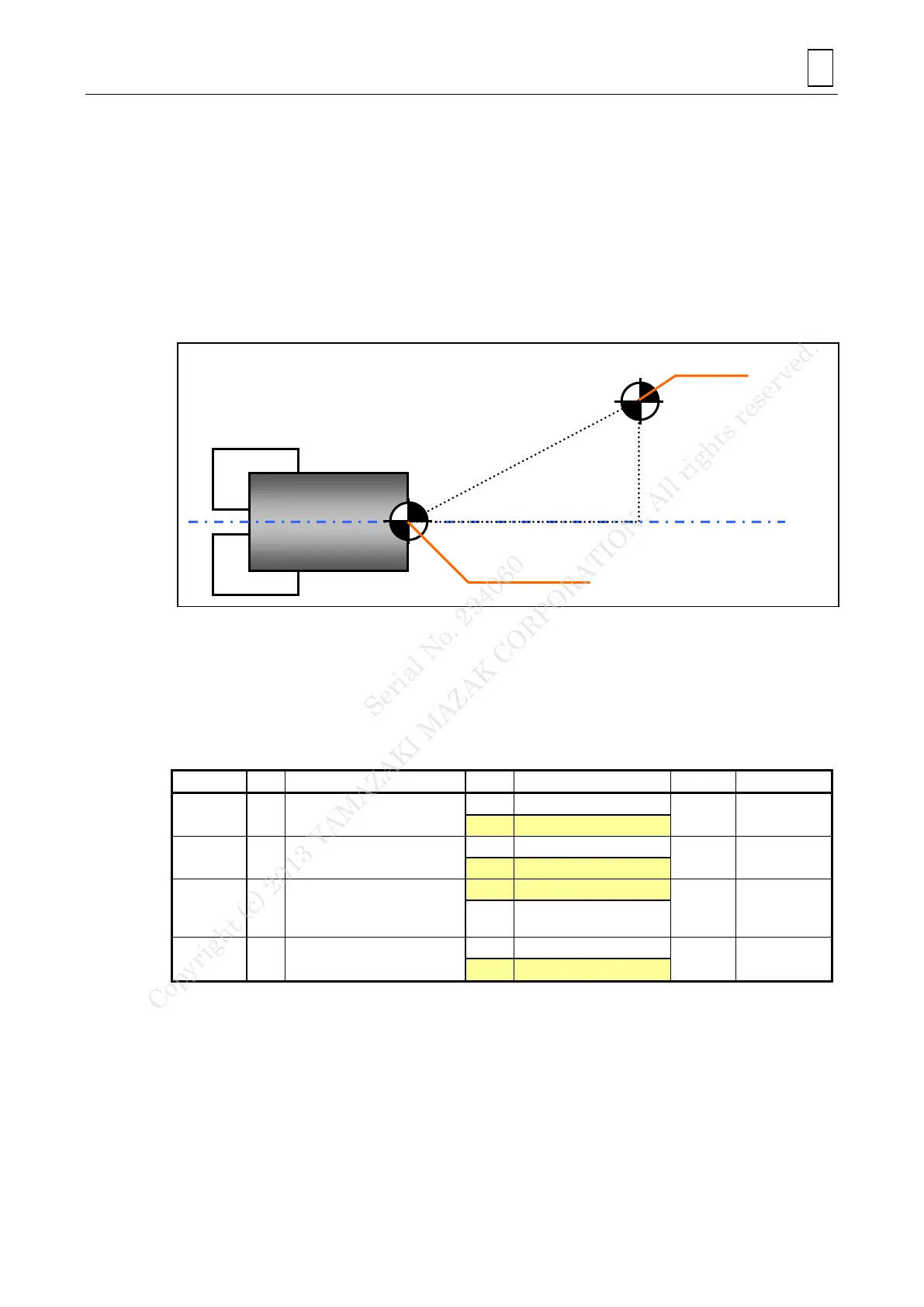

4-1-1 Setting of workpiece origin
This manual explains on assumption that workpiece origin is set on the C-axis center.
Set the workpiece origin by a touch probe or a tool.
4-1-2 Parameter of tool length offset.
This manual explains how to make programs when below parameters are set as recommended.
With the recommended setting, tool length data is taken from MAZATROL tool data, and
(additional) tool length offset is taken from tool offset data.
Parameter of Tool length offset
Parameter
bit
meaning
value
description
standard
recommended
F93
3
Tool length of tool data for an
EIA/ISO program
0
Invalid
1
1
1
Valid
F94
2
Tool length offset validity by
G28/G30 execution
0
Canceled
1
1
1
Not canceled
F94
7
Tool offset source in EIA/ISO
program
0
LENG. CO. of tool offset
1
0
1
Offset No/LENG. CO. of
tool data
F114
3
Axis motion at G49 command
in G43 mode
0
Axis moves
1
1
1
No movement
C-axis rotational center
Machine home position
workpiece origin
X
Z
Serial No. 294060
Copyright (c) 2013 YAMAZAKI MAZAK CORPORATION. All rights reserved.
Serial No. 294060
