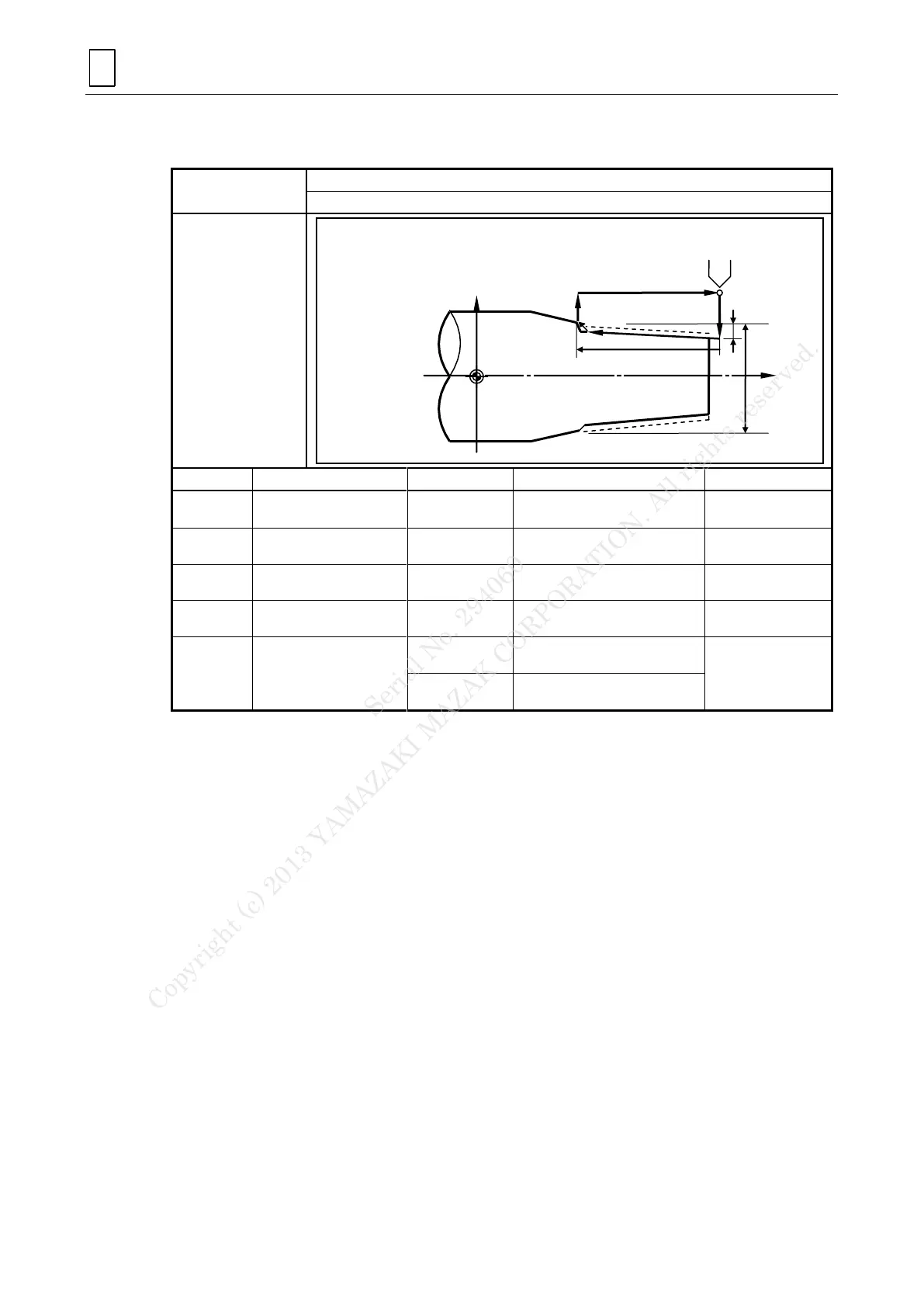

I. Fixed cycles for turning (Threading cycle)
1. Command
Programming format
G292 Xx Zz Rr Ff
G292 Xx Zz Rr Ee
Function
Code value
Description
Unit
Setting range
Omit
x
Position of X-axis
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
z
Position of Z-axis
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
r
Taper depth
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Possible (0)
f
Rapid motion
mm/rev
in/rev
0.0001 to 500.0000 (mm)
0.000001 to 9.999999 (in)
Impossible
e
Thread lead
mm/rev
in/rev
0.0001 to 999.9999 (mm)
0.000001 to 99.999999 (in)
Impossible
thread/in
0.01 to 999999.99 (mm)
0.0001 to 9999.9999 (in)
TEP122’
(R): Rapid motion
(F): Threading
R: Taper depth (incremental in radius value, with sign)
X-axis
Z-axis
4(R)
3(R)
2(F)
1(R)
X
Z
R
