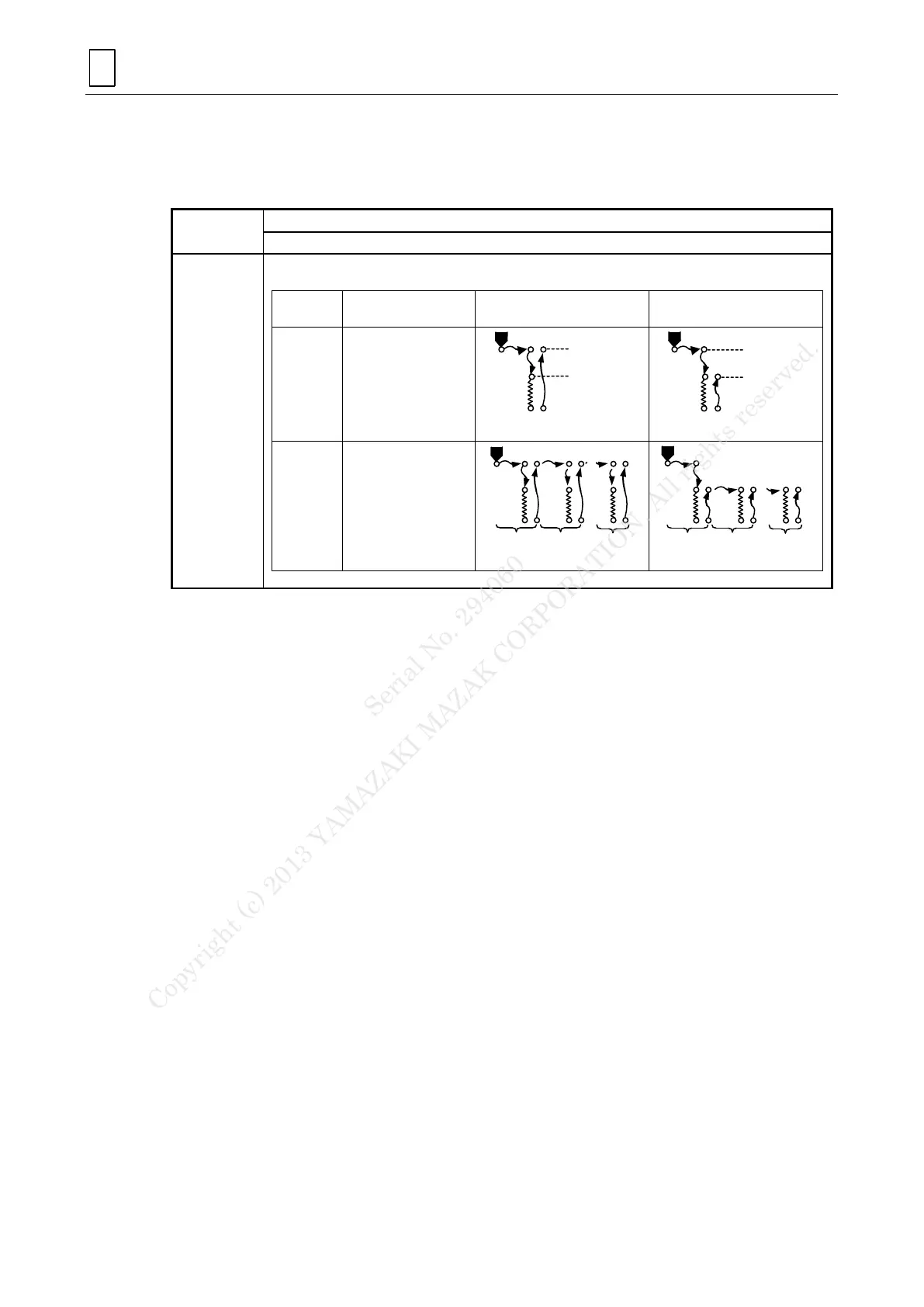

9. G-code (Group10)
A. Initial point and R-point level return
1. Command
Programming
format
G98
Initial point level return
G99
R-point level return
Function
Commands G98 or G99 can be used to select whether the return level of the final sequence during
fixed-cycle operation is to be set at R-point or at the initial point of machining.
Number
of holes
Sample program
G98
G99
Only one
G81 X100. Y100.
Z-50. R25. F1000
Return to initial point level.
Return to R-point level.
Two or
more
G81 X100. Y100.
Z-50. R25. L5 F1000
Always return to initial point.
~
~
1st hole
2nd hole
Last hole
1st hole
2nd hole
Last hole
~
~
Initial point
R-point
Initial point
R-point
