SUPPLEMENT 5
5-19
3. Supplement
This section expounds upon TOOL OFFSET and MAZATROL TOOL DATA.

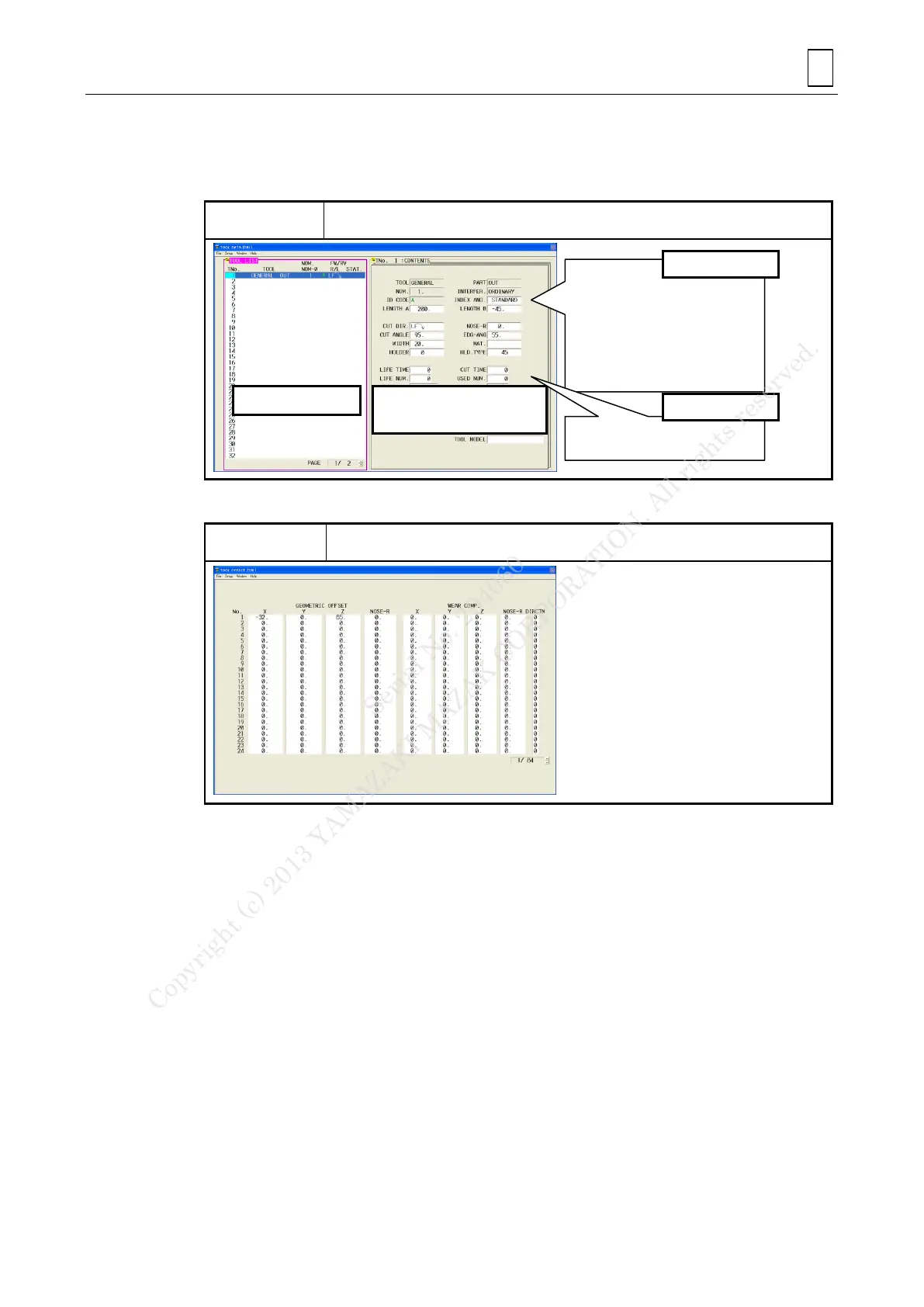

(a) Each display
 TOOL DATA Display
Function
Registering magazine- and turret-mounted tools and setting tool shape data and the data
required for management of the tools
 TOOL OFFSET Display
Function
This display is used when setting the amount of tool-radius or tool-position compensation
of each tool to be used for an EIA/ISO program.
List of tool data.
Information on the tool
selected from the list at left.
< Turning >
Offset value (in Z): LENGTH A
Offset value (in X): LENGTH B
< Milling >
Offset value (in Z): LENGTH
Offset value (in X): ACT-
Upper turret
Offset value (in X): TOOLSET X
Offset value (in Z): TOOLSET Z
Lower turret
Serial No. 294060
