Yanmar 2TNV70 - Lubrication System Diagram

LUBRICATION SYSTEM
9-6
TNV IDI Service Manual
Lubrication System Diagram

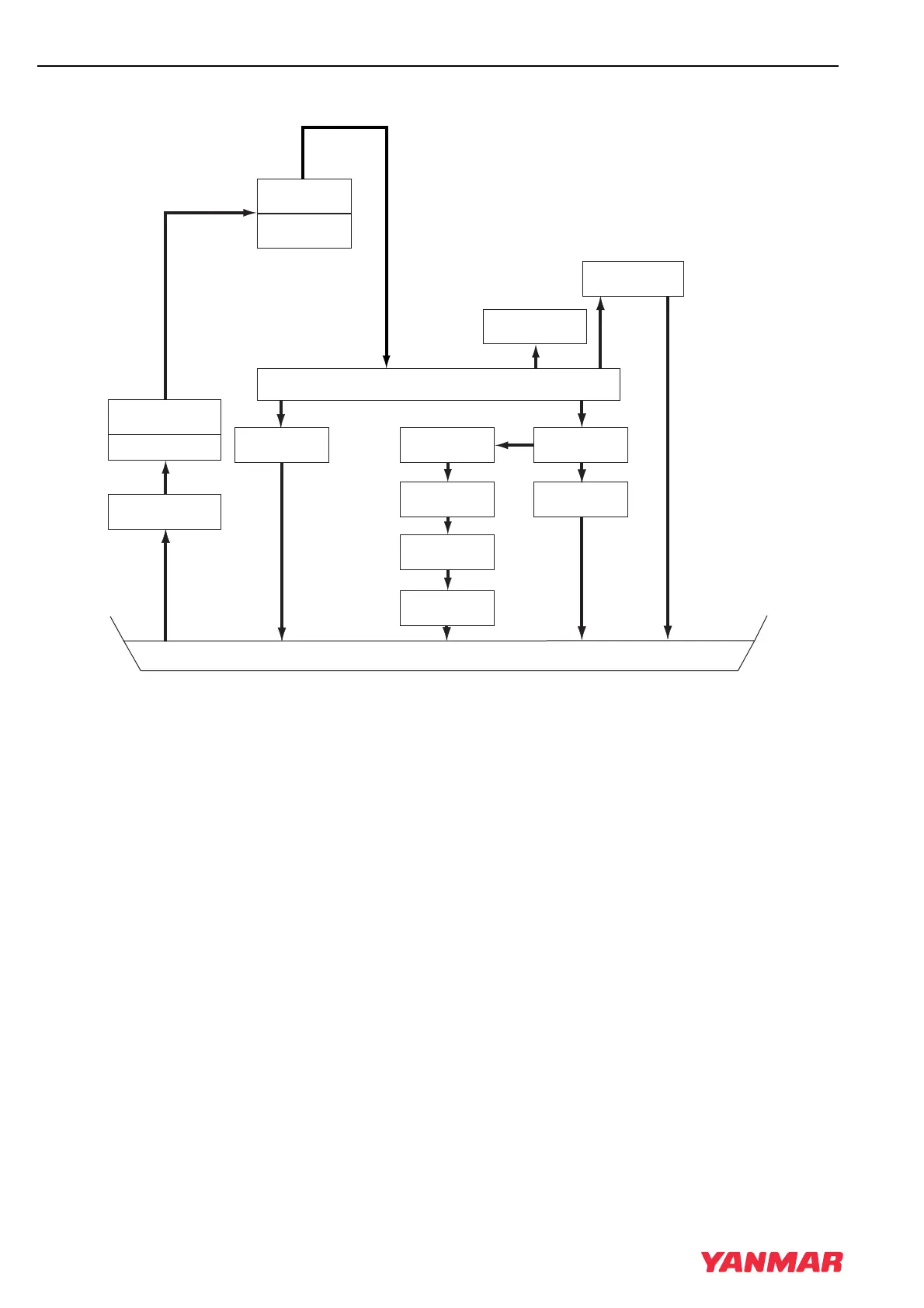

LUBRICATION SYSTEM DIAGRAM
Figure 9-1
Idle Gear
Shaft
Pressure
Regulator Valve
Oil Pump
Oil Suction Pipe
Strainer
Cylinder Body - Main Gallery
Camshaft
Bearing
Rocker Arm
Bearing
Rocker Arm
Tappet
Cam Face
Oil Pressure
Switch
Bypass Valve
Oil Filter
Crank Pin
Crank
Journal
Fuel
Injection Pump
Oil Pan
0001624
