GENERAL SERVICE INFORMATION
TNV IDI Service Manual
4-3
Component Identification
COMPONENT IDENTIFICATION

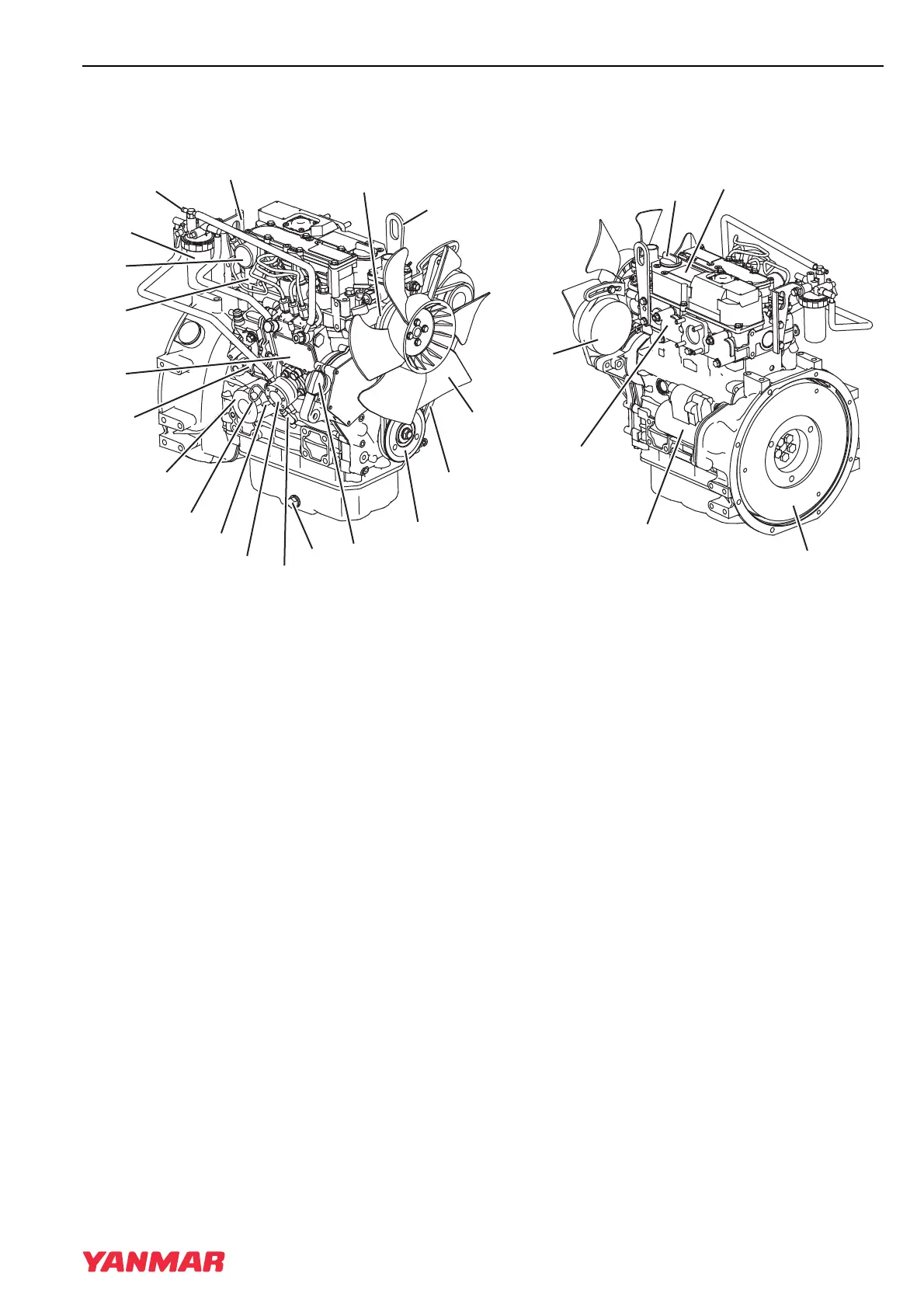

Figure 4-1 shows where major engine components are located.
1 –Lifting Eye (Flywheel End)
2 –Engine Coolant Pump
3 –Lifting Eye (Engine Cooling Fan End)
4 –Engine Cooling Fan
5–V-Belt
6 –Crankshaft V-Pulley
7 –Side Filler Port (Engine Oil)
8 –Drain Plug (Engine Oil)*
9 –Fuel Inlet
10– Mechanical Fuel Pump (If Equipped)
11– Fuel Priming Lever
12– Dipstick (Engine Oil)
13– Engine Oil Filter
14– Governor Lever
15– Fuel Injection Pump
16– Intake Manifold
17– Air Intake Port (From Air Cleaner)
18 –Fuel Filter
19– Fuel Return To Fuel Tank
20– Top Filler Port (Engine Oil)
21– Rocker Arm Cover
22– Flywheel
23 – Starter Motor
24– Exhaust Manifold
25–Alternator
Figure 4-1
* Engine oil drain plug location may vary based on oil pan options.
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
(22)
(23)
(24)
(25)
(3)
(2)
(1)
0000583A
