ALTERNATOR
TNV IDI Service Manual
11-15

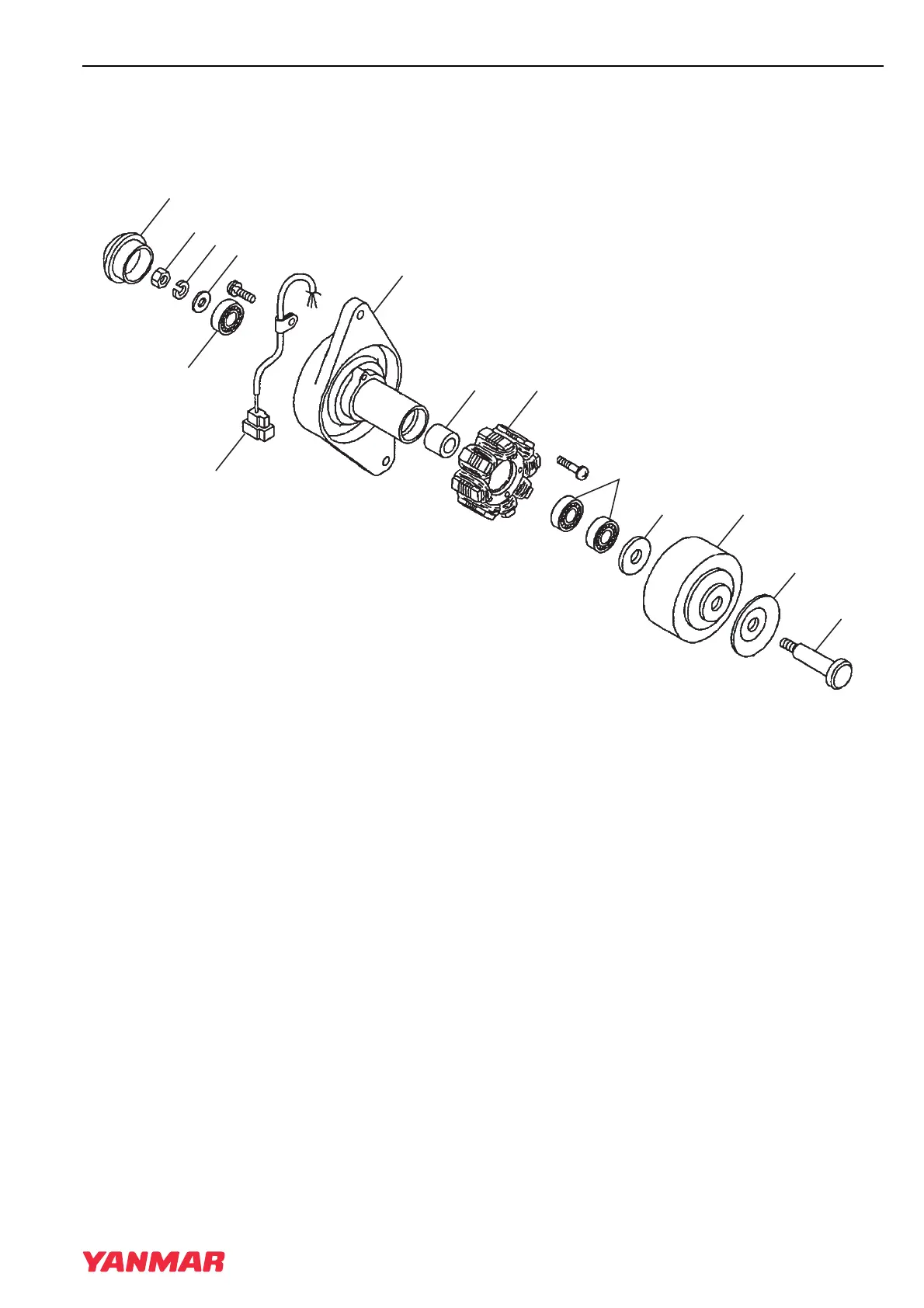

Dynamo Component Location
DYNAMO COMPONENT LOCATION
Yanmar Part No. 171301-77201 dynamo is used in this section to show the service procedures for the
representative dynamo. For specific part detail, see the Parts Catalog for the engine you are working on.
1–Rear Cover
2–Nut
3–Lock Washer
4 –Flat Washer
5 –Rear Bearing
6 –Output Wire and Connector
7–Plate
8 –Spacer
9 –Stator Assembly
10– Front Bearing (2 used)
11– Flat Washer
12– Flywheel Assembly
13–Pulley Half
14– Through Bolt
Figure 11-20
0002140
(1)
(2)
(3)
(6)
(4)
(5)
(7)
(8) (9)
(10)
(11)
(12)
(13)
(14)
